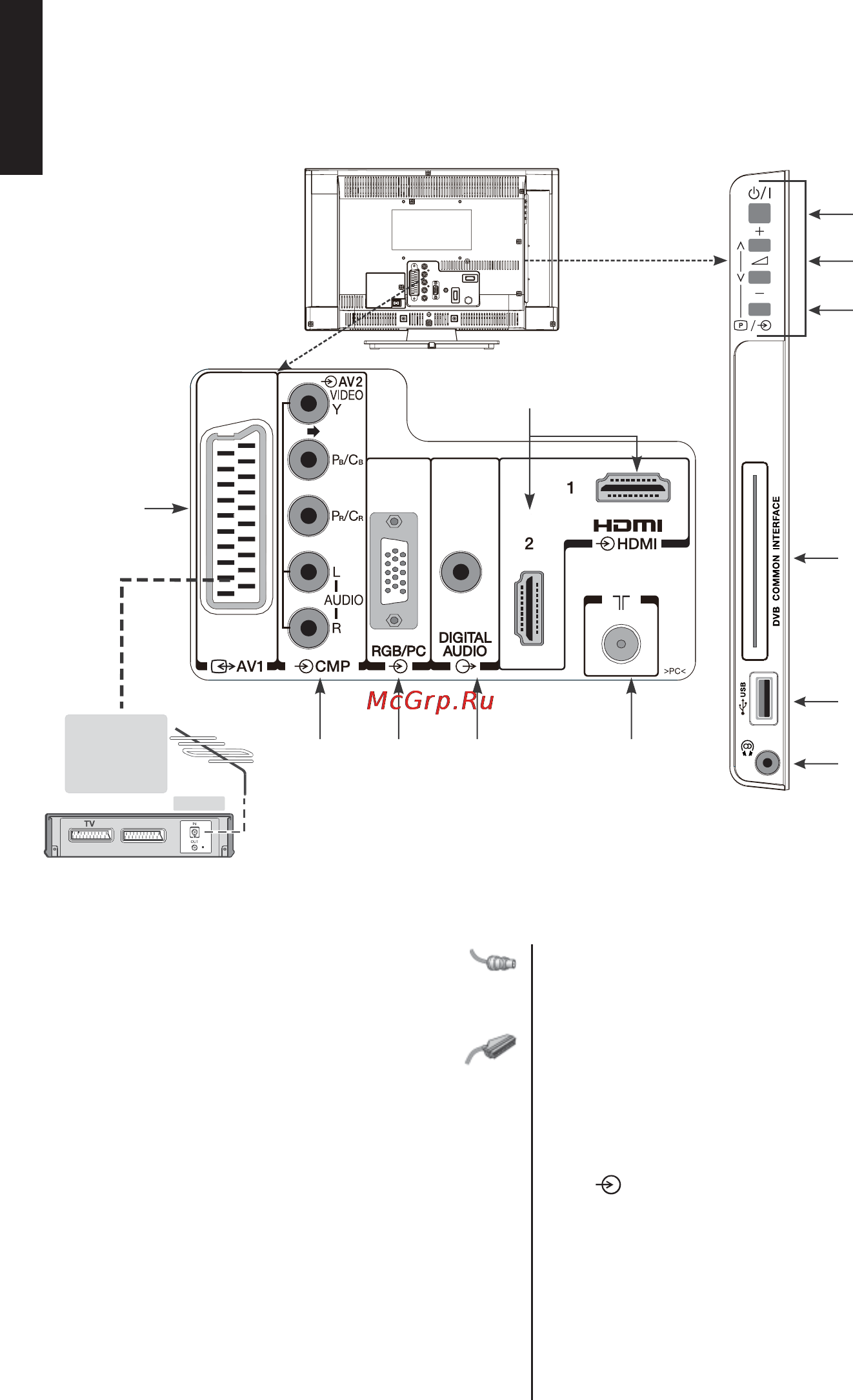

Connecting External Equipment
Before connecting any external equipment, remove the mains plug from the wall socket.
Side View
DVB
COMMON
INTERFACE
The DVB Common
Interface is for a
Conditional Access
Module (CAM).
HDMI Input
Sockets
USB Input
PC
Input
ANT.
(Aerial)
Input
+/- Controls
P/V-AV Button
Standby Button
Composite
input &
Component
Input
Headphone
SPDIF
Coaxial Out
SCART
Socket
decoder*
* a decoder
could be Digital
Satellite, Free
to Air or any
other compatible
decoder.
Aerial cable: .............................................................
Connect the aerial to the ANT Socket on the rear of the
television.
SCART lead: ............................................................
If you use a decoder* or a media recorder, it is essential
that the SCART cable is connected to the television.
Before running initial setup, any connected devices need
to be set to standby mode.
The SPDIF Coaxial Out socket enables the connection of a
suitable surround sound system.
HDMI® (High-Defi nition Multimedia Interface) is for
using with a DVD decoder or other equipment with digital
audio and video output. It is designed for best performance
with 1080i and 1080p high-defi nition video signals but will
also accept and display VGA, 480i, 480p, 576i, 576p and
720p signals. PC format signals will also be displayed.
Note: Although this television is able to connect to HDMI
equipment, it is possible that some equipment may not
operate correctly.
A wide variety of external equipment can be connected
to the television; therefore, the relevant owner’s manuals
for all additional equipment must be referred to for exact
instructions.
If the television automatically switches over to monitor
external equipment, return to normal television by pressing
the desired channel number. To recall external equipment,
press
repeatedly to switch between sources.
