PANEL DESCRIPTION
2
■ Front panel
q CHANNEL UP/DOWN KEYS [
YY
]/[
ZZ
]•[U/I/C]
➥ Selects the operating channels, Set mode settings, etc.
(pgs. 5, 6, 28)
➥ While pushing and holding [SCAN], push to adjust the
brightness of the LCD and key backlight. (p. 9)
➥ Selects one of three channel groups in sequence when
both keys are pushed. (p. 6)
• U.S.A., International and Canadian channels are available.
➥ While turning power ON, push and hold both keys to ac-
tivate the AquaQuake function. (p. 9)
w POWER/VOLUME CONTROL [VOL] (p. 7)
Rotate to turn the transceiver power ON and OFF and ad-
justs the audio level.
e SQUELCH CONTROL [SQL] (p. 7)
Rotate to set the squelch threshold level.
r CHANNEL 16/CALL CHANNEL KEY [!6•9]
➥ Push to select Channel 16. (p. 5)
➥ Push and hold for 1 sec. to select call channel. (p. 5)
•“CALL” appears when the call channel is selected.
➥ Push and hold for 3 sec. to enter call channel program-
ming condition when the call channel is selected. (p. 8)
➥ While pushing and holding [CH/WX], push to enter the
channel comments programming condition. (p. 8)
➥ Push to move the cursor forward. (p. 8)
➥ While turning power ON, push to enter Set mode. (p. 28)
t CHANNEL/WEATHER CHANNEL KEY [CH/WX•DUAL]
➥ Selects and toggles the regular channel and weather
channel when pushed momentarily. (p. 6)
➥ Push and hold for 1 sec. to start Dualwatch or Tri-watch.
(p. 12)
➥ Push to stop Dualwatch or Tri-watch when either is acti-
vated. (p. 12)
➥ Push to move the cursor backward. (p. 8)

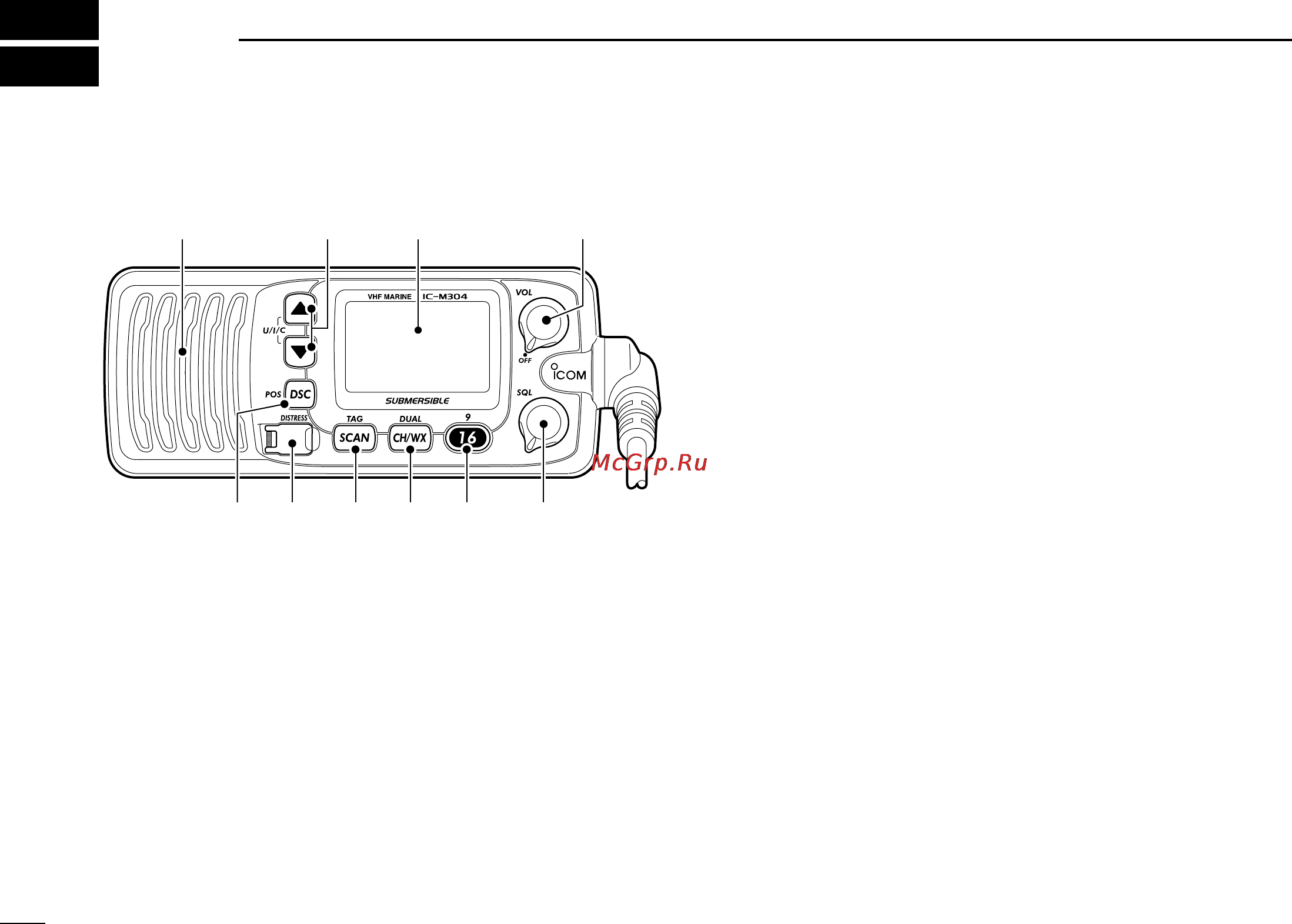

Speaker Function display (p. 4)
