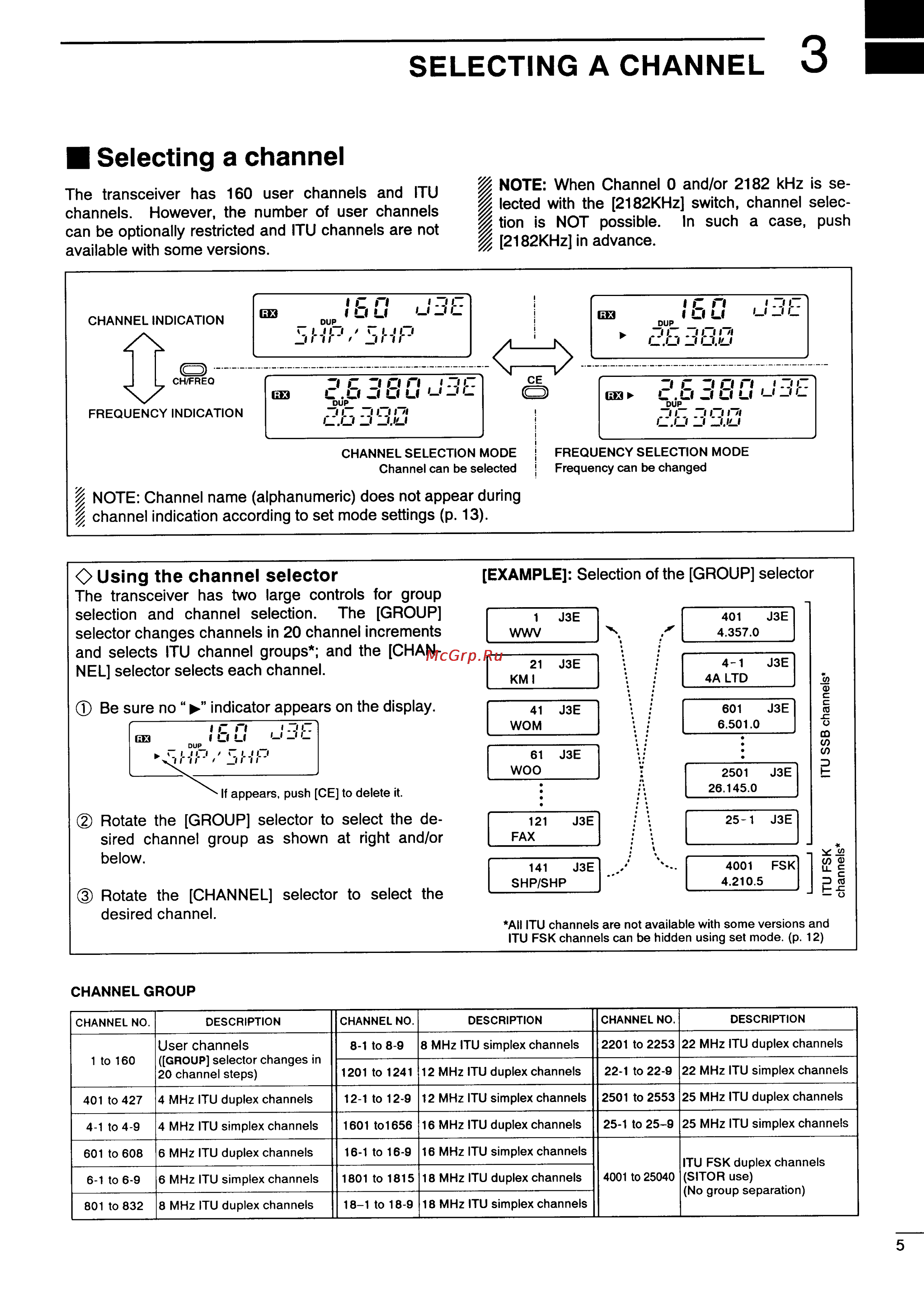

SELECTING A CHANNEL Selecting a channel The transceiver has 160 user channels and ITU channels However the number of user channels can be optionally restricted and ITU channels are not available with some versions NOTE When Channel 0 and or 2182 kHz is se lected with the 2182KHz switch channel selec tion is NOT possible In such a case push 2182KHz in advance FREQUENCY SELECTION MODE Frequency can be changed CHANNEL SELECTION MODE Channel can be selected p NOTE Channel name alphanumeric does not appear during channel indication according to set mode settings p 13 EXAMPLE Selection of the GROUP selector O Using the channel selector The transceiver has two large controls for group selection and channel selection The GROUP selector changes channels in 20 channel increments and selects ITU channel groups and the CHAN NEL selector selects each channel Be sure no indicator appears on the display 1 WWV J3E 21 KM I J3E 41 WOM J3E 61 WOO J3E 401 J3E 4 357 0 4 1 4A LTD 601 J3E 6 501 0 2501 J3E 26 145 0 If appears push CE to delete it Rotate the GROUP selector to select the de sired channel group as shown at right and or below Rotate the CHANNEL selector to select the desired channel 121 FAX J3E 25 1 J3E J3E 4001 FSK 4 210 5 141 J3E SHP SHP CD AII ITU channels are not available with some versions and ITU FSK channels can be hidden using set mode p 12 CHANNEL GROUP CHANNEL NO DESCRIPTION User channels CHANNEL NO 8 1 to 8 9 DESCRIPTION 8 MHz ITU simplex channels CHANNEL NO 2201 to 2253 DESCRIPTION 22 MHz ITU duplex channels GROUP selector changes in 20 channel steps 1201 to 1241 12 MHz ITU duplex channels 401 to 427 4 MHz ITU duplex channels 12 1 to 12 9 12 MHz ITU simplex channels 2501 to 2553 25 MHz ITU duplex channels 4 1 to 4 9 4 MHz ITU simplex channels 1601 to1656 16 MHz ITU duplex channels 25 1 to 25 9 25 MHz ITU simplex channels 601 to 608 6 MHz ITU duplex channels 16 1 to 16 9 16 MHz ITU simplex channels 6 1 to 6 9 6 MHz ITU simplex channels 1801 to 1815 18 MHz ITU duplex channels 801 to 832 8 MHz ITU duplex channels 18 1 to 18 9 18 MHz ITU simplex channels 1 to 160 22 1 to 22 9 22 MHz ITU simplex channels ITU FSK duplex channels 4001 to 25040 SITOR use No group separation
