Icom IC-R5 [17/80] I battery charging
![Icom IC-R5 [17/80] I battery charging](/views2/1074707/page17/bg11.png)
6
2
BATTERY CHARGING
New2001
2
■ Battery charging

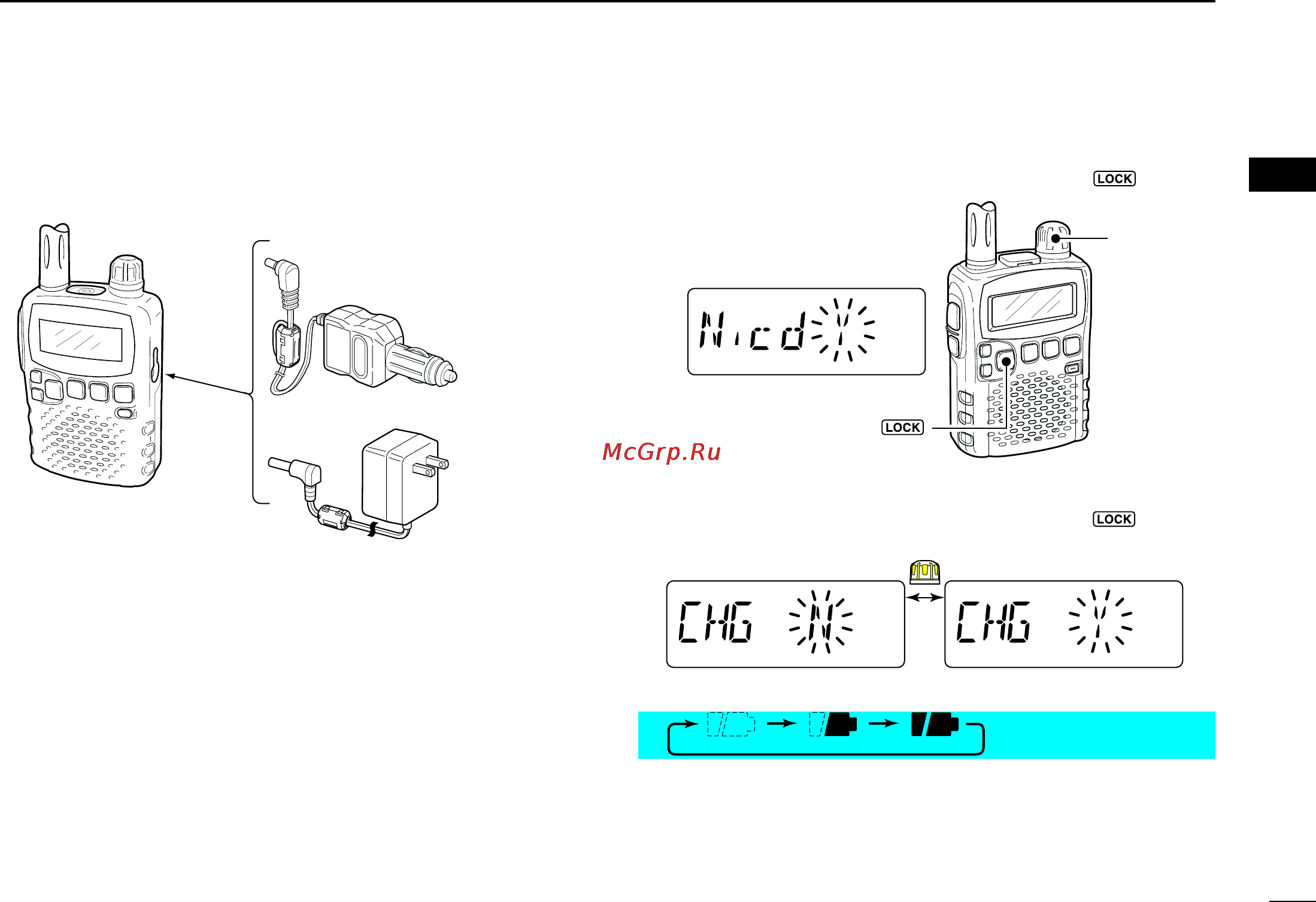

D Charging connections
• Charging periods: Approx. 10 hours
D Charging description
qInstall the Ni-Cd batteries. (See left page)
• Ni-MH batteries can also be charged.
wPlug the AC adapter into an AC outlet; or the optional CP-
18A/E into a cigarette lighter socket.
eInsert the adapter plug into [DC 6V] of the receiver.
rThe battery type confirmation is displayed as above right.
• When no confirmation display is indicated, insert the adapter plug
while pushing [FUNC].
• Once the batteries are removed for more then 2 sec., the follow-
ing operations are necessary.
tRotate [DIAL] to select “Y” then push [BAND• ].
yThe charging confirmation is displayed.
uRotate [DIAL] to select “Y” then push [BAND• ] to start
battery charging.
• The battery indicator scrolls during charge as below.
• When the batteries are charged completely, the battery indica-
tor (both segments) blinks.
• Takes approximately 10 hours for fully charge with the supplied
Ni-Cd cells.
[BAND• ]
[DIAL]
IC-R5
to [DC 6V]
jack
Optional CP-18A/E
Cigarette lighter cable
with DC-DC converter
AC adapter
to cigarette
lighter socket
to AC outlet
IC-R5_1.qxd 02.10.23 11:28 Page 6 (1,1)
