7 Installation
Installer reference guide
38
ERLQ004~008CA + EHVZ04+08S18CB
Daikin Altherma – Low temperature split
4P401676-1D – 2018.07
X5M
A5P
78 910
S2S S3S

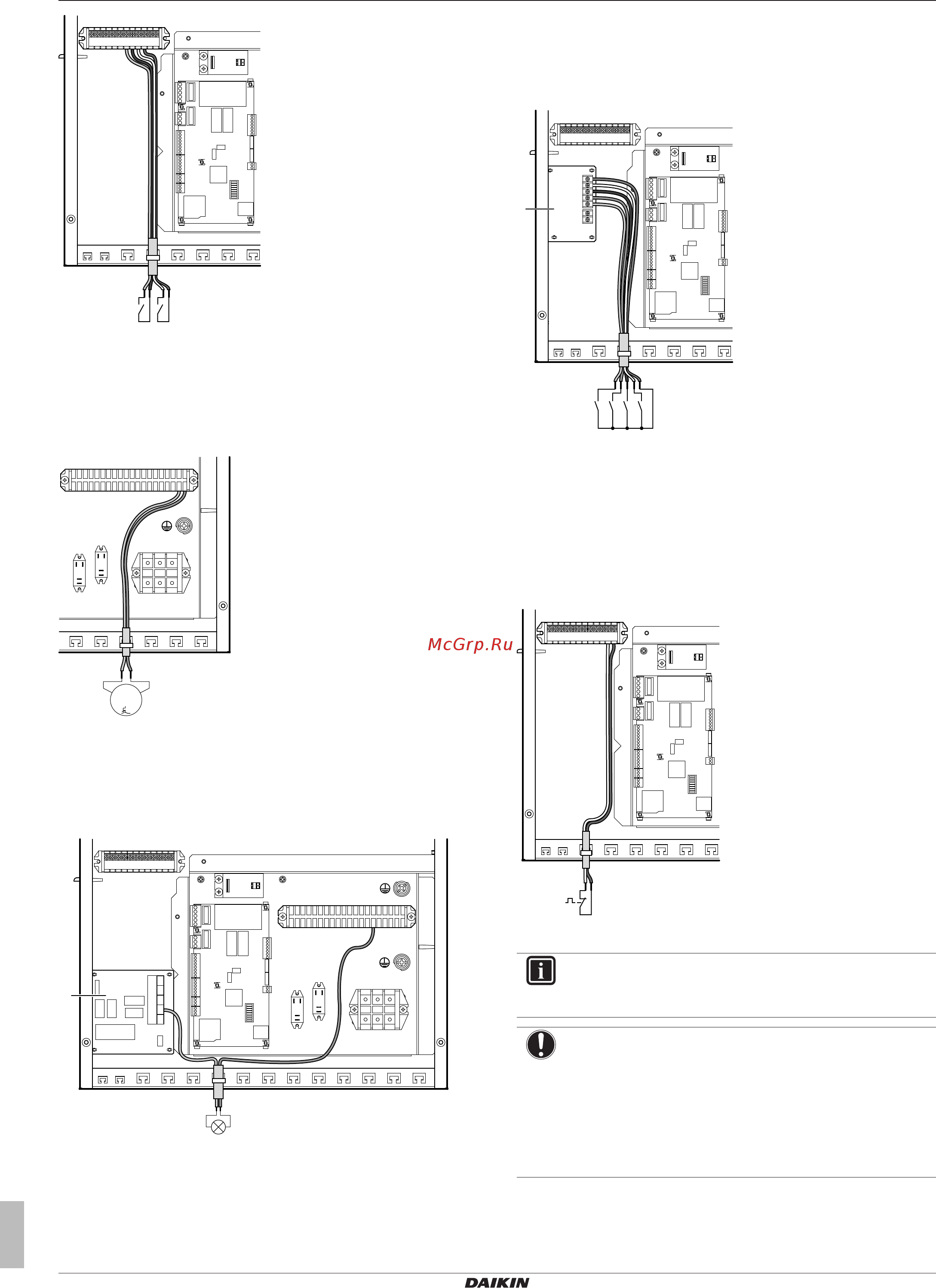

2 Fix the cable with cable ties to the cable tie mountings.
7.9.12 To connect the domestic hot water pump
1 Connect the domestic hot water pump cable to the appropriate
terminals as shown in the illustration below.
X2M
X1M
K3M
K2M
3534
1~
M
M2P
2 Fix the cable with cable ties to the cable tie mountings.
7.9.13 To connect the alarm output
1 Connect the alarm output cable to the appropriate terminals as
shown in the illustration below.
X2M
X5M
A5P
X1M
A4P
K3M
K2M
29
X1M
YC Y1 Y2 Y3 Y4
a
a Installation of EKRP1HB is required.
2 Fix the cable with cable ties to the cable tie mountings.
7.9.14 To connect the power consumption digital
inputs
1 Connect the power consumption digital inputs cable to the
appropriate terminals as shown in the illustration below.
X5M
A5P
A8P
1 2 3 4 5
X801M
S6S
S7S
S8S
S9S
a
a Installation of EKRP1AHTA is required.
2 Fix the cable with cable ties to the cable tie mountings.
7.9.15 To connect the safety thermostat (normal
closed contact)
Main zone
1 Connect the safety thermostat (normal closed) cable to the
appropriate terminals as shown in the illustration below.
X5M
A5P
1211
2 Fix the cable with cable ties to the cable tie mountings.
INFORMATION
Installation of a safety thermostat (field supply) is required
for the main zone, otherwise the unit will NOT operate.
NOTICE
A safety thermostat MUST be installed on the main zone to
avoid too high water temperatures in this zone. The safety
thermostat is typically a thermostatically controlled valve
with a normal closed contact. When the water temperature
in the main zone is too high, the contact will open and the
user interface will show a 8H‑02 error. ONLY the main
pump will stop.
Additional zone
3 Connect the safety thermostat (normal closed) cable to the
appropriate terminals as shown in the illustration below.
