3 Operation
Operation manual
4
EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596804-1 – 2019.10

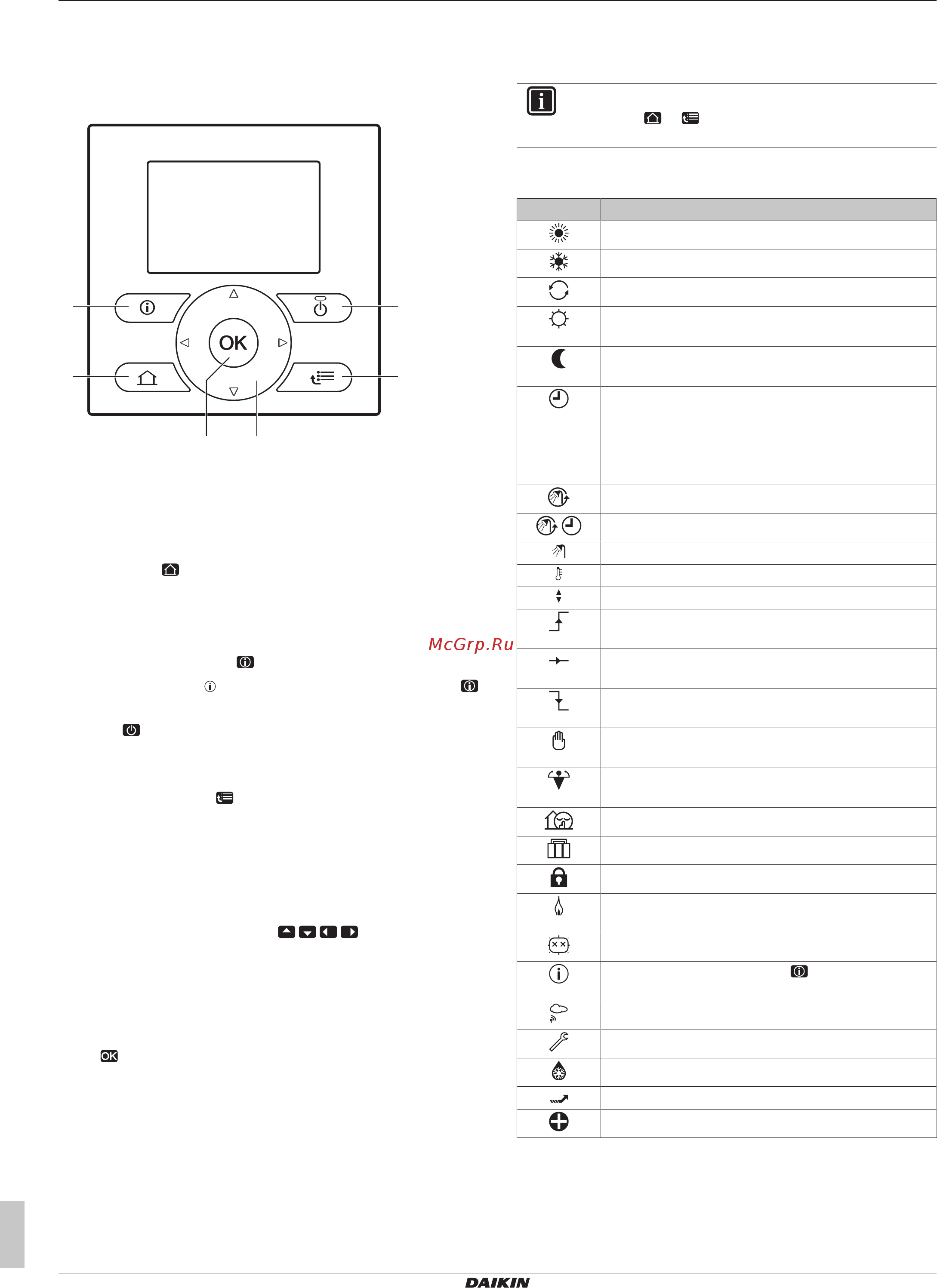

3.1 User interface: Overview
3.1.1 Buttons
Overview
a
ef
b
d
c
a Home pages
b Malfunction information
c On/Off
d Menu structure/Back
e Navigating/Changing settings
f OK
Home pages —
▪ If you are on a home page, press to switch to another home page.
▪ If you are in a menu structure, press to go to the default home
page.
Malfunction information —
If a malfunction occurs, is displayed on the home pages. Press
to display more information about the malfunction.
On/Off —
Turn ON or OFF one of the controls (room temperature, leaving
water temperature, DHWtank temperature).
Menu structure/Back —
▪ If you are on a home page, press to open the menu structure.
▪ If you are navigating through a menu structure, press to go up
1level.
▪ Press to go back 1step, for example when you are programming
a schedule.
Navigation/Change of settings—
▪ Navigate the cursor on the display.
▪ Navigate through the menu structure.
▪ Change the value of a setting.
▪ Select a mode.
OK —
▪ Confirm a selection.
▪ If you are on a home page:
▪ press to switch between displaying actual and desired values,
or (if applicable) between actual and offset values.
▪ press for more than 5seconds to activate or deactivate button
lock.
▪ If you are in a menu structure, press to enter a submenu.
▪ If you are in the main menu of a menu structure, press for more
than 5seconds to activate or deactivate a function lock
▪ If you are programming a schedule, go to the next step.
INFORMATION
If you press
or while changing settings, the changes
will NOT be applied.
3.1.2 Status icons
Icon Description
Space operation mode = Heating.
Space operation mode = Cooling.
Unit is operating.
Desired room temperature = preset value (Comfort;
daytime).
Desired room temperature = preset value (Eco;
nighttime).
▪ On the room temperature home page: Desired
room temperature = according to the selected
schedule.
▪ On the DHW tank temperature home page:
DHWtank mode = Scheduled mode.
DHWtank mode = Reheat mode.
DHWtank mode = Scheduled + reheat mode.
Domestic hot water operation.
Actual temperature.
Desired temperature.
At the next scheduled action, the desired temperature
will increase.
At the next scheduled action, the desired temperature
will NOT change.
At the next scheduled action, the desired temperature
will decrease.
The preset value (Comfort or Eco) or scheduled value
is temporarily overruled.
The DHWtank booster mode is active or ready to be
activated.
Quiet mode is active.
Holiday mode is active or ready to be activated.
Button lock mode and/or function lock mode is active.
An external heat source is active. Example: Gas
burner.
The disinfection mode is active.
A malfunction occurred. Press to display more
information about the malfunction.
Weather-dependent mode is active.
User permission level = Installer.
Defrost/oil return mode is active.
Hot start mode is active.
Emergency operation is active.
3.1.3 User Permission level
The amount of information you can read out and edit in the menu
structure depends on your user permission level:
▪ End user: Default user mode.
