3 | Operation
User reference guide
11
EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596810-1 – 2019.10
3 Operation
INFORMATION
Cooling is only applicable in case a conversion kit (EKHVCONV3) is installed.

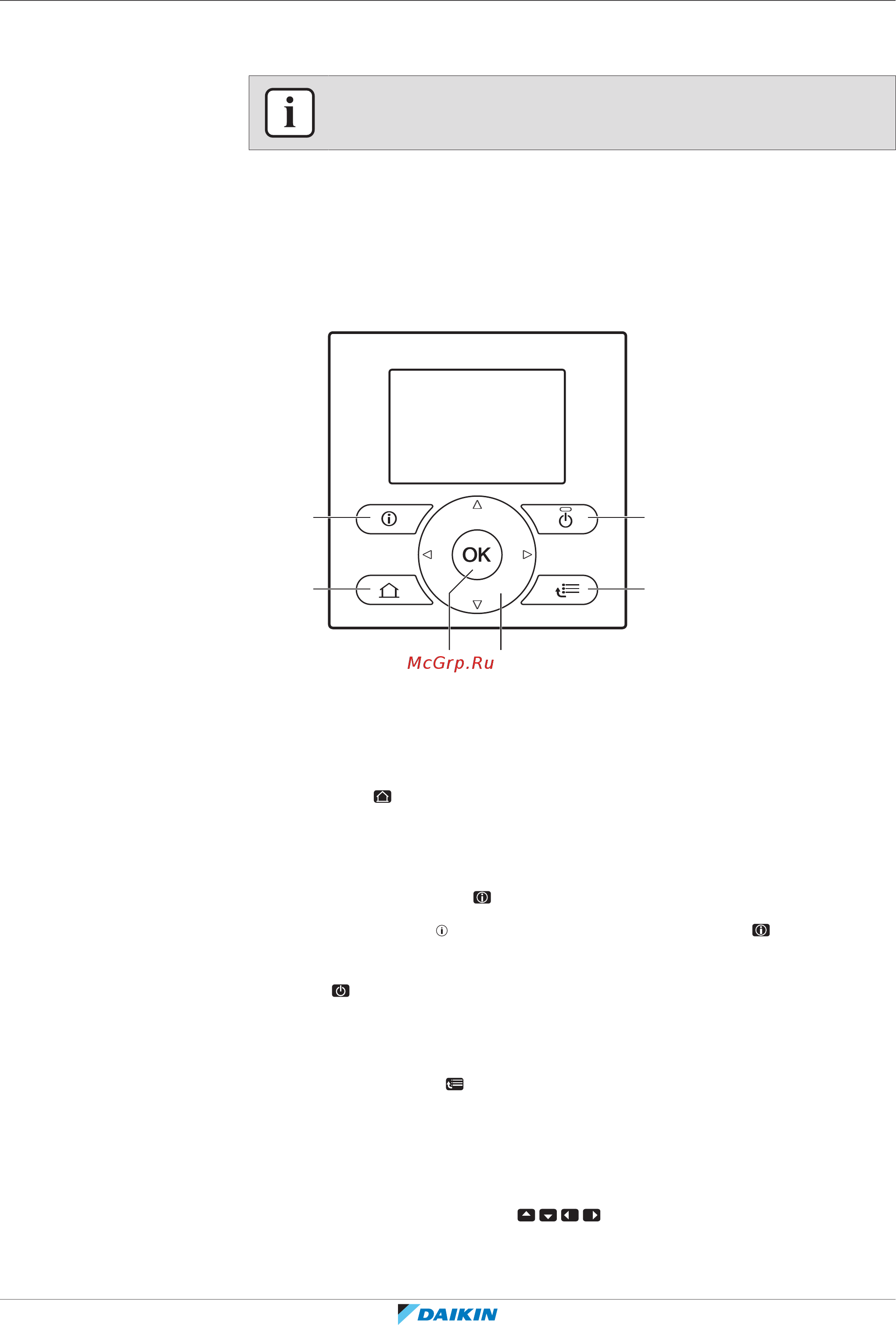

3.1 User interface: Overview
3.1.1 Buttons
Overview
a
ef
b
d
c
a Home pages
b Malfunction information
c On/Off
d Menu structure/Back
e Navigating/Changing settings
f OK
Home pages —
▪ If you are on a home page, press to switch to another home page.
▪ If you are in a menu structure, press to go to the default home page.
Malfunction information —
If a malfunction occurs, is displayed on the home pages. Press to display more
information about the malfunction.
On/Off —
Turn ON or OFF one of the controls (room temperature, leaving water
temperature, DHWtank temperature).
Menu structure/Back —
▪ If you are on a home page, press to open the menu structure.
▪ If you are navigating through a menu structure, press to go up 1level.
▪ Press to go back 1step, for example when you are programming a schedule.
Navigation/Change of settings—
▪ Navigate the cursor on the display.
