16

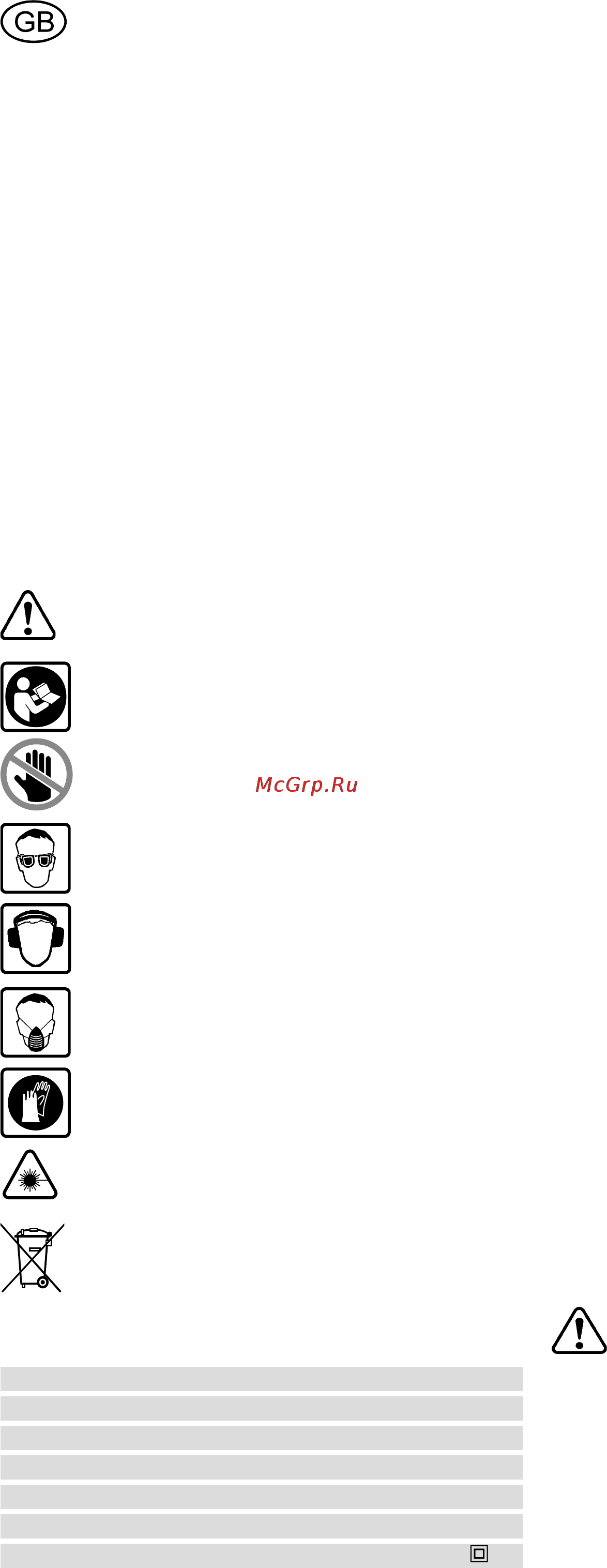

1 Symbols
Warning of general danger.
Read the Operating Instructions/Notes!
Danger area! Keep hands, fi ngers and
arms away from this area.
Wear protective goggles.
Wear ear protection.
Wear a dust mask.
Wear protective gloves.
Caution: laser beams!
Dispose of the machine, accessories and
packaging at an environmentally respon-
sible recycling centre.
2 Technical data
Power 1600 W
Rotational speed (idle) 1400 - 3400 rpm
Tool spindle, dia. 30 mm
Weight
KS 120 EB 21.5 kg
KS 88 E 20,7 kg
Protection class
/ II
See section 8 "Operation" for the maximum work-
piece dimensions.
The specifi ed illustrations can be found at the
beginning an at the end of the operating instruc-
tions.
Components on illustrations marked with * are
only included in the scope of delivery of the KS
120 EB.
3 Machine features
(1.1) Hand grip
(1.2) On/off switch
(1.3) Switch-on lock
(1.4) Lever for cutting depth limiter
(1.5) Rotary knob for clamping the guide fi x-
ture
(1.6) Transport safety device
(1.7) Scale for mitre cuts (vertical)
(1.8) Scale for mitre cuts (horizontal)
(1.9) Clamp lever for mitre cuts (horizontal)
(1.10) Stop lever for preset mitre cut angles
(horizontal)
(1.11) Rotary handle for fine adjustment of
mitring angle (vertical) *
(2.1) On/off switch for laser*
(2.2) Adjusting wheel for rotational speed
(2.3) Fastfi x spindle lock
(2.4) Clamping lever for stop ruler
(2.5) Release lever for special cutting posi-
tion*
(2.6) Lever for special cutting position*
(2.7) Cable holder with integral handle
(2.8) Clamp lever for mitre cuts (vertical)
(2.9) Selector switch for mitre angle range
(vertical)
* Only included in the scope of delivery of the KS
120 EB.
4 Intended use
The electric power tool is a stationary unit de-
signed for sawing blocks of wood, plastic, alu-
minium profi les and similar materials.
Do not process other materials, in particular steel,
concrete and mineral materials.
The electric power tool is designed and approved
for use by trained persons or specialists only.
The user bears the responsibility for dam-
age and accidents caused by improper
use.
Other risks
In spite of compliance with all relevant design
regulations, dangers may still present themselves
when the machine is operated, e.g.:
• Workpiece parts being thrown off
• Parts of damaged tools being thrown off
• Noise emission
• Dust emission
Circular cross-cut saw
KAPEX KS 120 EB/ KS 88 E
Table of contents
1 Symbols..................................................... 16
2 Technical data .......................................... 16
3 Machine features ...................................... 16
4 Intended use ............................................. 16
5 Safety instructions .................................... 17
6 Commissioning ......................................... 18
7 Adjustments ............................................. 18
8 Operation .................................................. 20
9 Service and maintenance ......................... 21
10 Accessories ............................................... 23
11 Disposal .................................................... 23
12 Warranty ................................................... 23
13 EU Declaration of Conformity ................... 23
