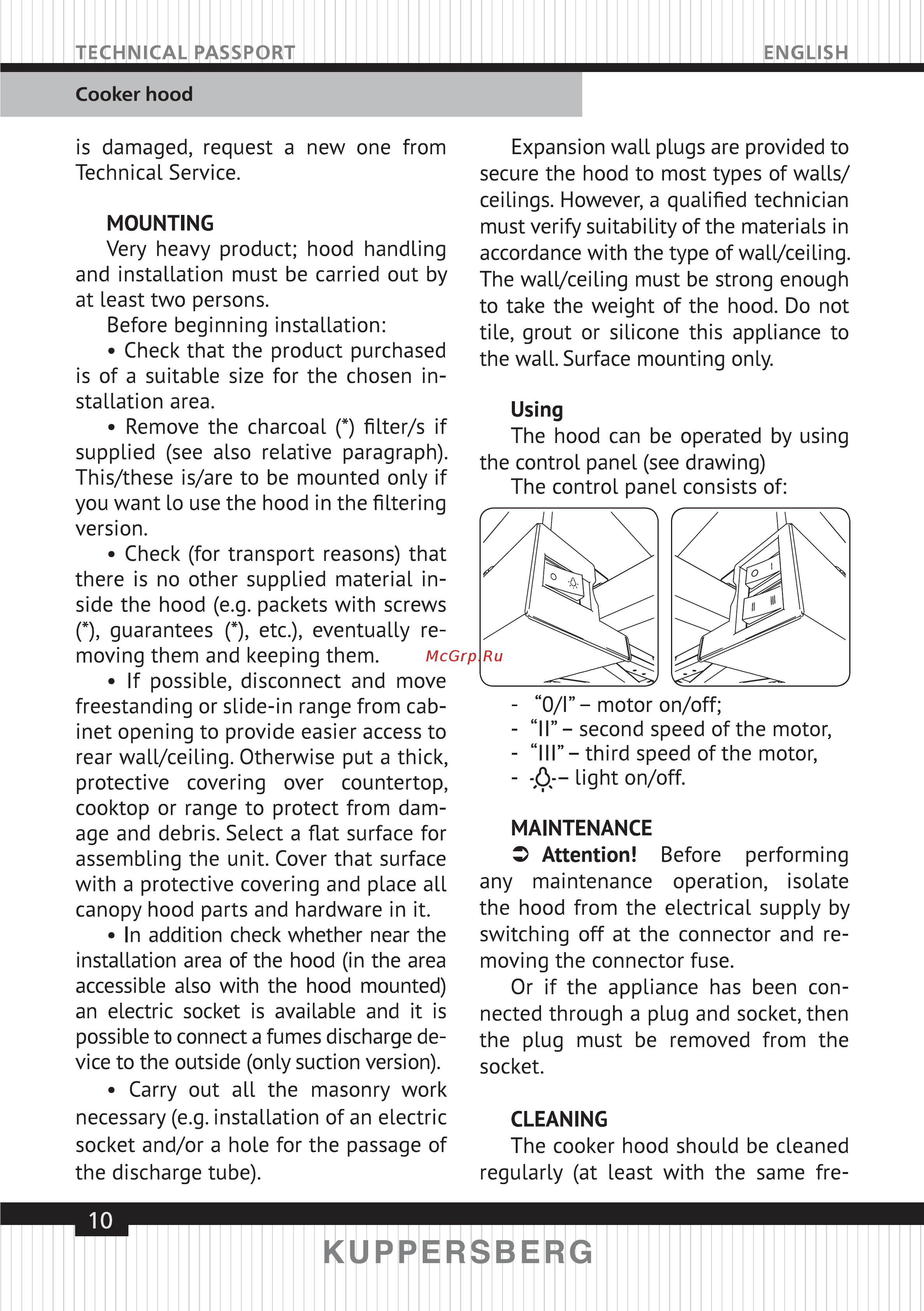

ENGLISH Cooker hood is damaged request a new one from Technical Service MOUNTING Very heavy product hood handling and installation must be carried out by at Least two persons Before beginning installation Check that the product purchased is of a suitable size for the chosen in stallation area Remove the charcoal filter s if supplied see also relative paragraph This these is are to be mounted only if you want Lo use the hood in the filtering version Check for transport reasons that there is no other supplied material in side the hood e g packets with screws guarantees etc eventually re moving them and keeping them If possible disconnect and move freestanding or slide in range from cab inet opening to provide easier access to rear wall ceiling Otherwise put a thick protective covering over countertop cooktop or range to protect from dam age and debris Select a flat surface for assembling the unit Cover that surface with a protective covering and place all canopy hood parts and hardware in it In addition check whether near the installation area of the hood in the area accessible also with the hood mounted an electric socket is available and it is possible to connect a fumes discharge de vice to the outside only suction version Carry out all the masonry work necessary e g installation of an electric socket and or a hole for the passage of the discharge tube 10 Expansion wall plugs are provided to secure the hood to most types of walls ceilings However a qualified technician must verify suitability of the materials in accordance with the type of wall ceiling The wall ceiling must be strong enough to take the weight of the hood Do not tile grout or silicone this appliance to the wall Surface mounting only Using The hood can be operated by using the control panel see drawing The control panel consists of 0 1 motor on off II second speed of the motor Ill third speed of the motor Q light on off MAINTENANCE O Attention Before performing any maintenance operation isolate the hood from the electrical supply by switching off at the connector and re moving the connector fuse Or if the appliance has been con nected through a plug and socket then the plug must be removed from the socket CLEANING The cooker hood should be cleaned regularly at Least with the same fre
