3 Operation
Operation manual
5
D2CND028+035A1/4AA + D2TND028+035A4AA
Wall-mounted condensing boiler
3P469438-5D – 2017.06
The following home screens may be possible:
▪ Room temperature (Daikin room thermostat connected)
▪ Central heating set temperature
▪ Virtual room temperature (with outdoor sensor)
▪ Domestic hot water set temperature
▪ System pressure (at standby mode)

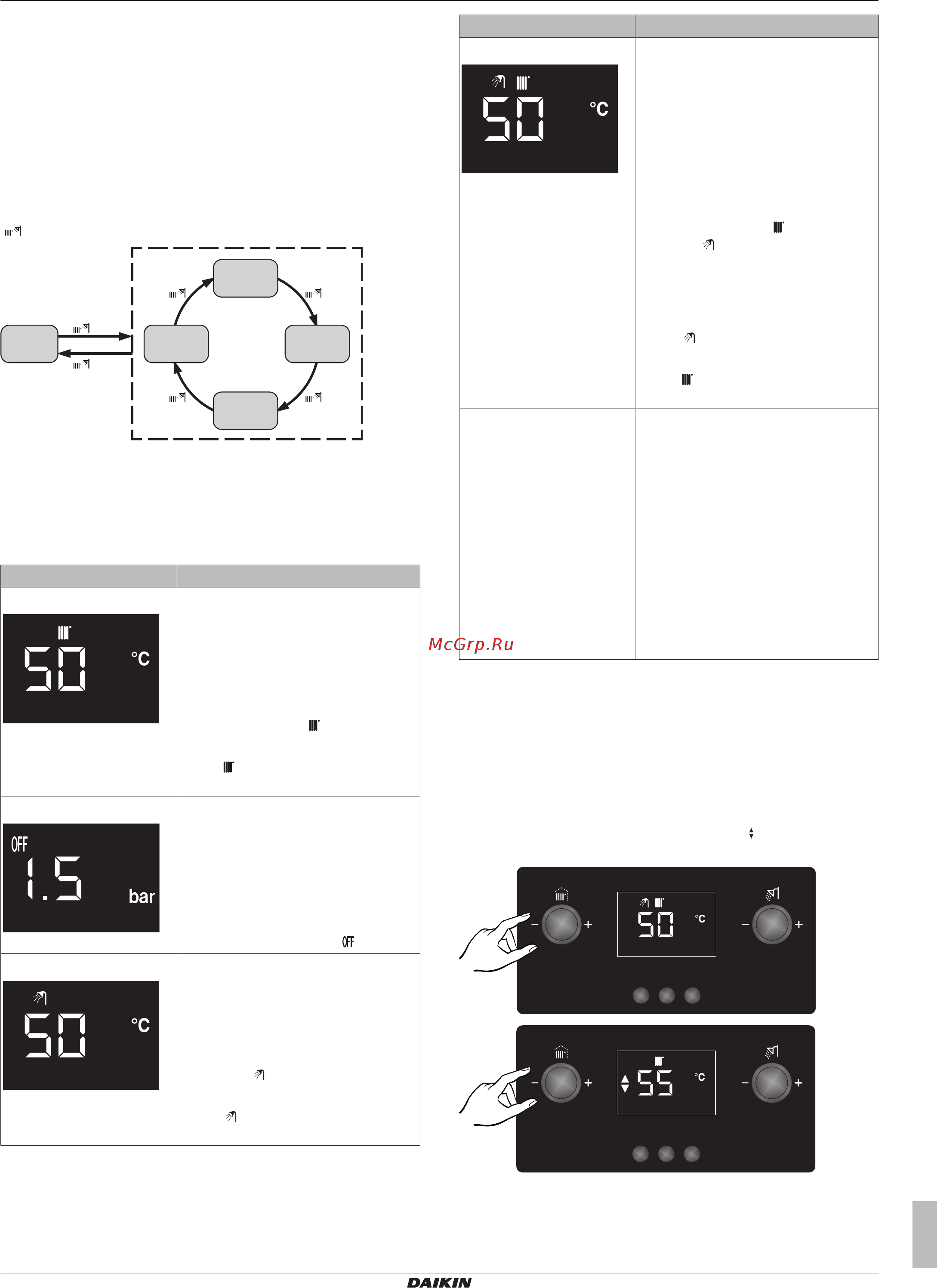

3.3.2 To select the operation mode
The operation mode can be changed by pressing the "Mode" button
( ).
(5 s)
(5 s)
a
c
b
d
e
a Central heating only mode
b Standby mode
c Summer mode
d Winter mode
e Full-off mode
3.3.3 Possible operation modes
Operation mode Description
Central heating only mode ▪ Only central heating operation mode
is enabled.
▪ The central heating temperature
setpoint (which setpoint is shown
depends on the system
configuration; see "3.3.5 Possible
central heating operation modes"on
page 6) and the icon is shown
on the home screen.
▪ The icon blinks if central heating
operation is active.
Standby mode ▪ Both central heating and domestic
hot water operation modes are
disabled.
▪ The protection functions such as
frost protection are still active at
standby mode.
▪ The home screen shows the system
pressure, as well as the icon.
Summer mode ▪ Only domestic hot water operation
mode is enabled. Central heating
operation mode is disabled. The
boiler will only produce heat for
domestic hot water.
▪ The domestic hot water setpoint,
and the icon is shown on the
home screen.
▪ The icon blinks if domestic hot
water operation is active.
Operation mode Description
Winter mode ▪ Both domestic hot water operation
mode and central heating operation
mode are enabled. The boiler can
produce domestic hot water, as well
as produce heat for central heating.
▪ The central heating temperature
setpoint (which setpoint is shown
depends on the system
configuration; see "3.3.5 Possible
central heating operation modes"on
page 6), and the icon, as well
as the icon are shown on the
home screen. When domestic hot
water operation is active, domestic
hot water setpoint is shown on the
home screen.
▪ The icon blinks if domestic hot
water operation is active.
▪ The icon blinks if central heating
operation is active.
Full-off mode ▪ Both central heating and domestic
hot water operation modes are
disabled.
▪ LCD display will be darkened and
will not be activated with any user
interaction.
▪ The protection functions such as
frost protection are still active at full-
off mode.
▪ Full-off mode is activated and
deactivated if "Mode" button is
pressed for 5seconds while boiler is
in any mode.
3.3.4 Changing temperature setpoints
Temperature setpoints can be changed with the Right/Left dials.
To change the central heating temperature
setpoint
1 Turn the left dial while you are at the home screen. The setpoint
screen will appear as shown below and the setpoint can be
adjusted by turning the left dial. Note: The icon means you are
at the setpoint screen.
2 To apply changes done, wait for 3seconds or press the "Enter"
button. Pressing the "Cancel" button cancels the changes done.
