Diagnosis by Remote Controller Si10-417
10 Service Diagnosis
6. Diagnose by the sound.
“ pi ” : The both numbers of tens and units do not
accord with the error code.
“ pi pi ” : The number of tens accords with the error
code.
“ beep ” : The both numbers of tens and units accord
with the error code.
7. Determine the error code.
The digits indicated when you hear the “beep” sound
are error code.
(Error codes and description
→
Refer to page 21.)

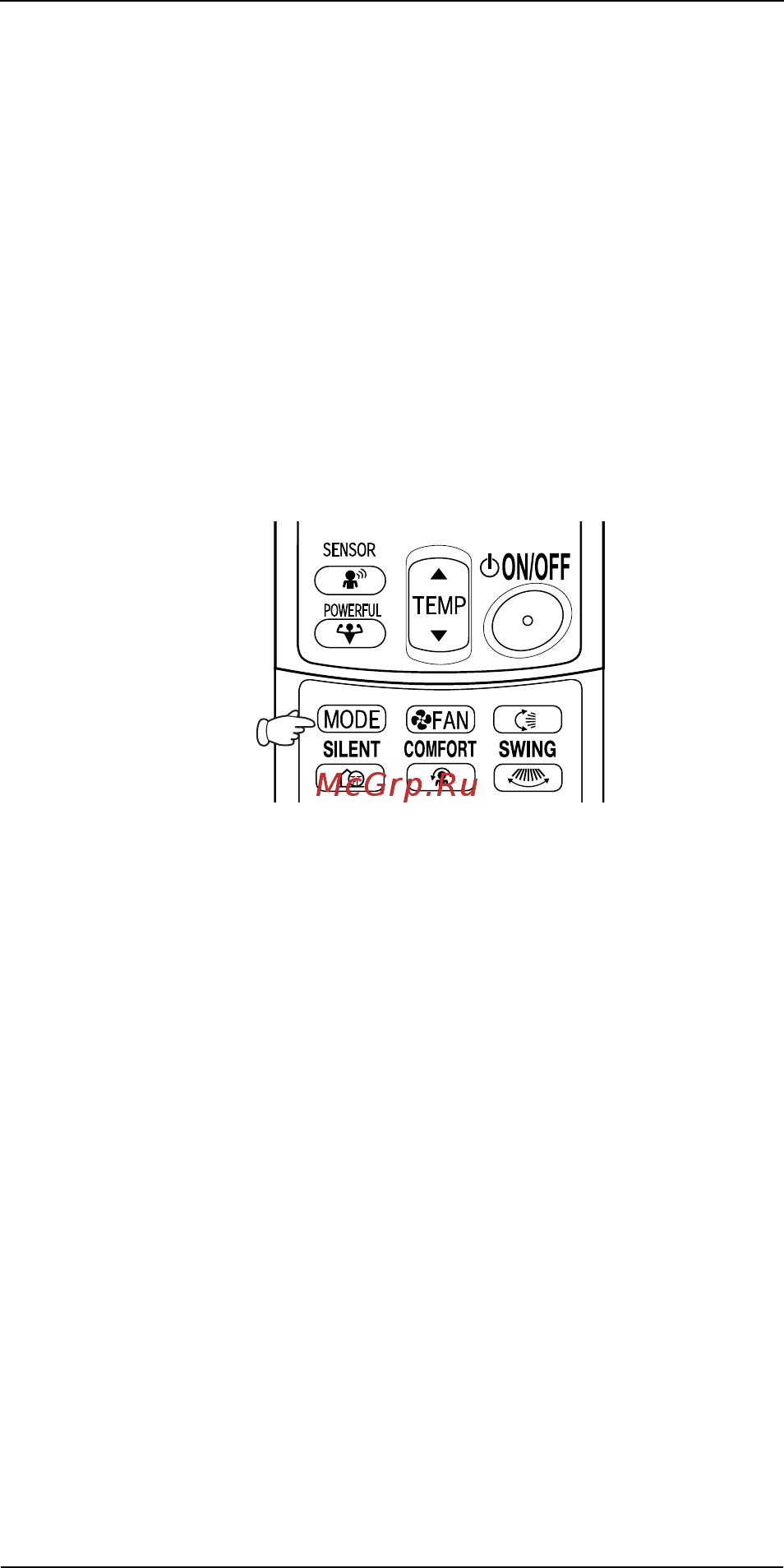

8. Exit from the diagnosis mode.
Press the MODE button.
Si10-417.fm Page 10 Wednesday, September 22, 2004 6:38 PM
