Si04-604 Indoor Unit
Removal Procedure 137
4

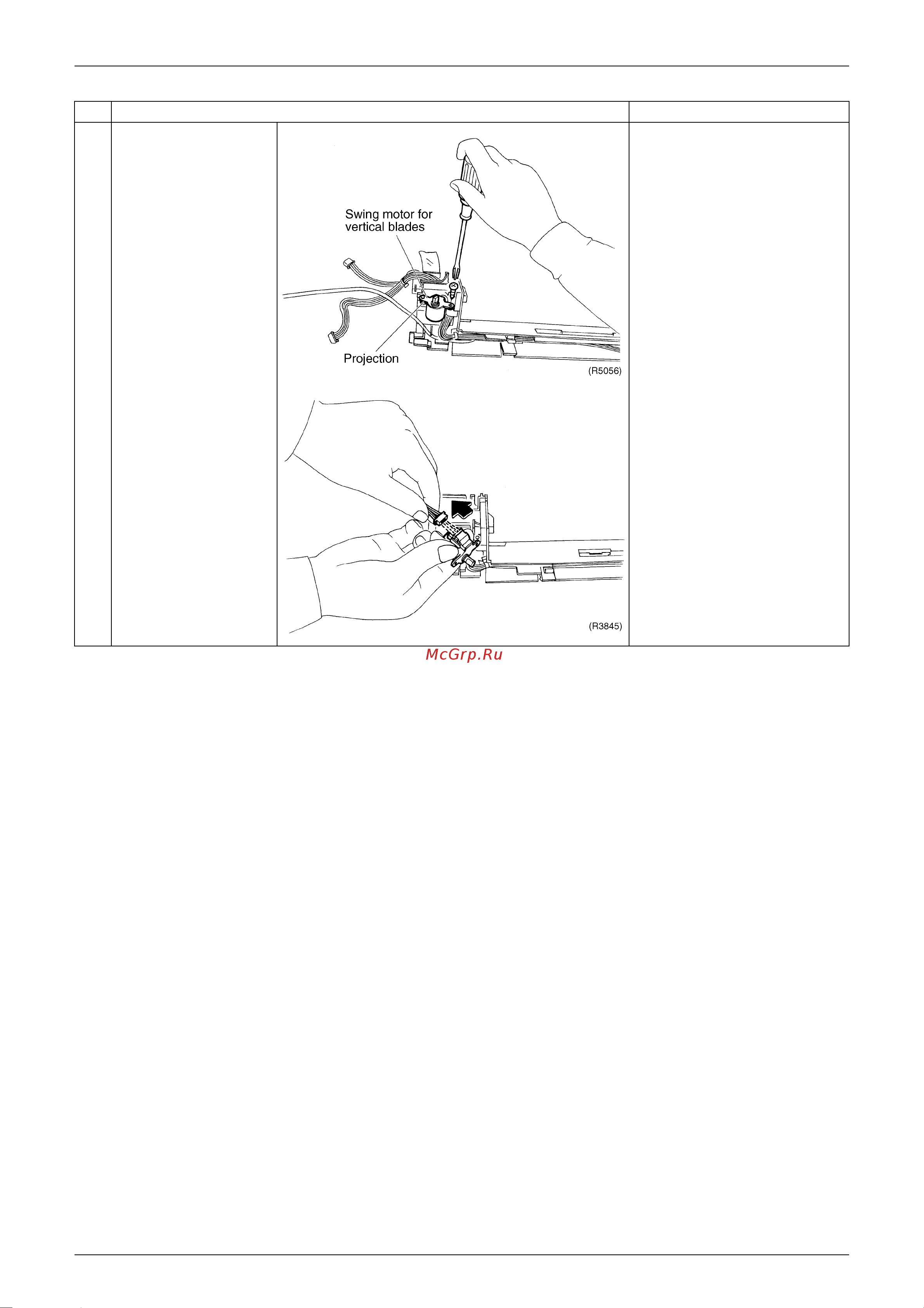

Loosen the screw and
pull out the swing
motor.
The projection is fragile. Be
careful so as not to break it.
5
Disconnect the
connector for the swing
motor.
Step
Procedure Points
