Connecting the outlet hose

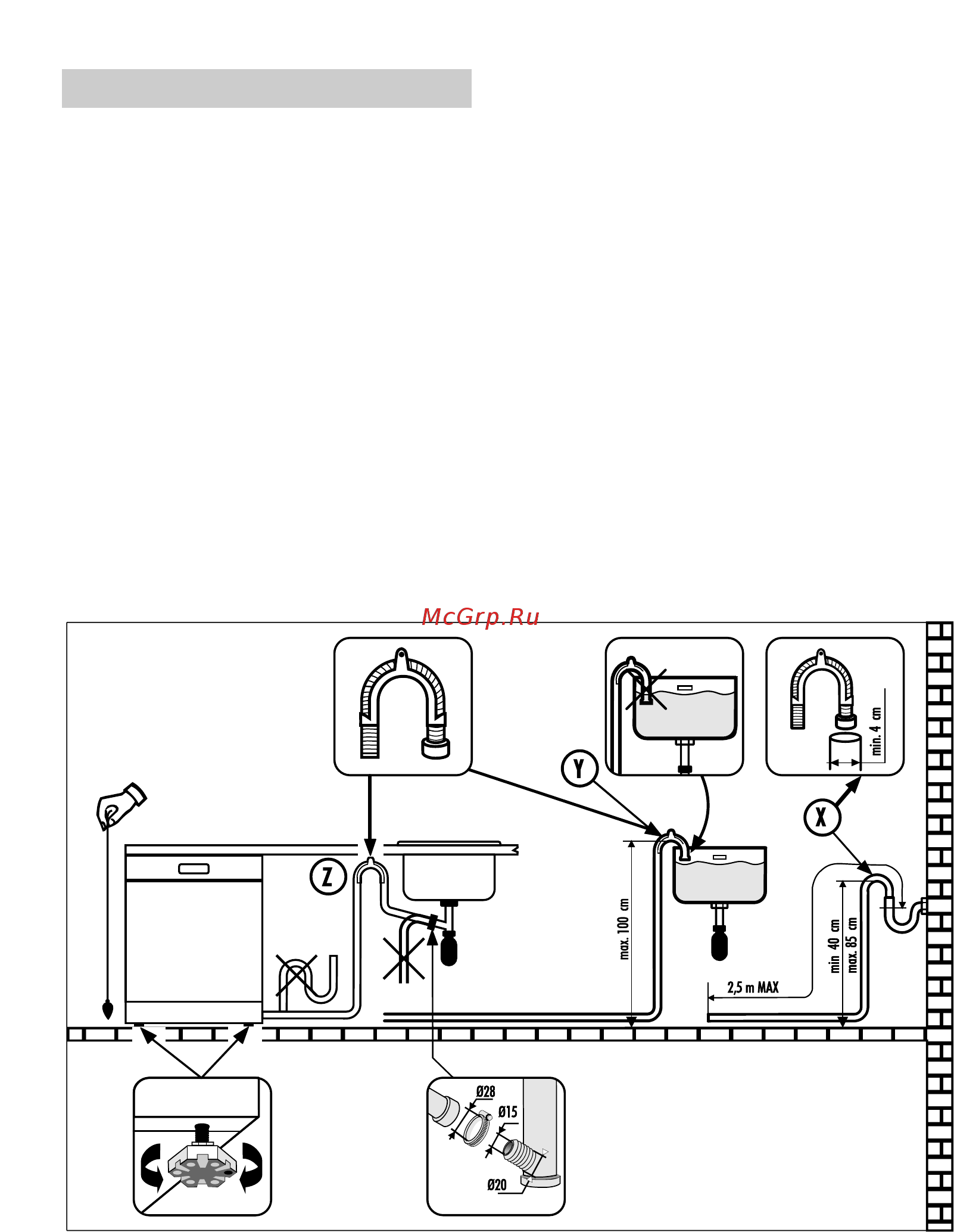

■ The outlet hose should disharge into a

standpipe, making sure that there are no

kinks (fig. 4).

■ The standpipe must be at least 40 cm

above floor level and it must have an

internal diameter of at least 4 cm.

■ It is advisable to fit an anti-odour air trap

(fig. 4X).

■ If necessary the outlet hose can be

extended up to 2,5 m, provided that it is

kept at a maximum height of 85 cm

above floor level. The extension pipe is

available from the After Sales Service

Centre.

■ The hose can be hooked over the side of

the sink, but it must not be immersed in

water, in order to prevent water from

being syphoned back to the machine

when this is in operation (fig. 4Y).

■ When installing the appliance under a

worktop the hose pipe clamp must be

attached to the wall in the highest possible

position under the worktop (fig. 4Z).

■ Check that there are no kinks in the inlet

and outlet hoses.
