Daikin EKEXV125 [68/299] Wiring diagram of control box
![Daikin EKEQMCBAV3 [68/299] Wiring diagram of control box](/views2/1763792/page68/bg44.png)

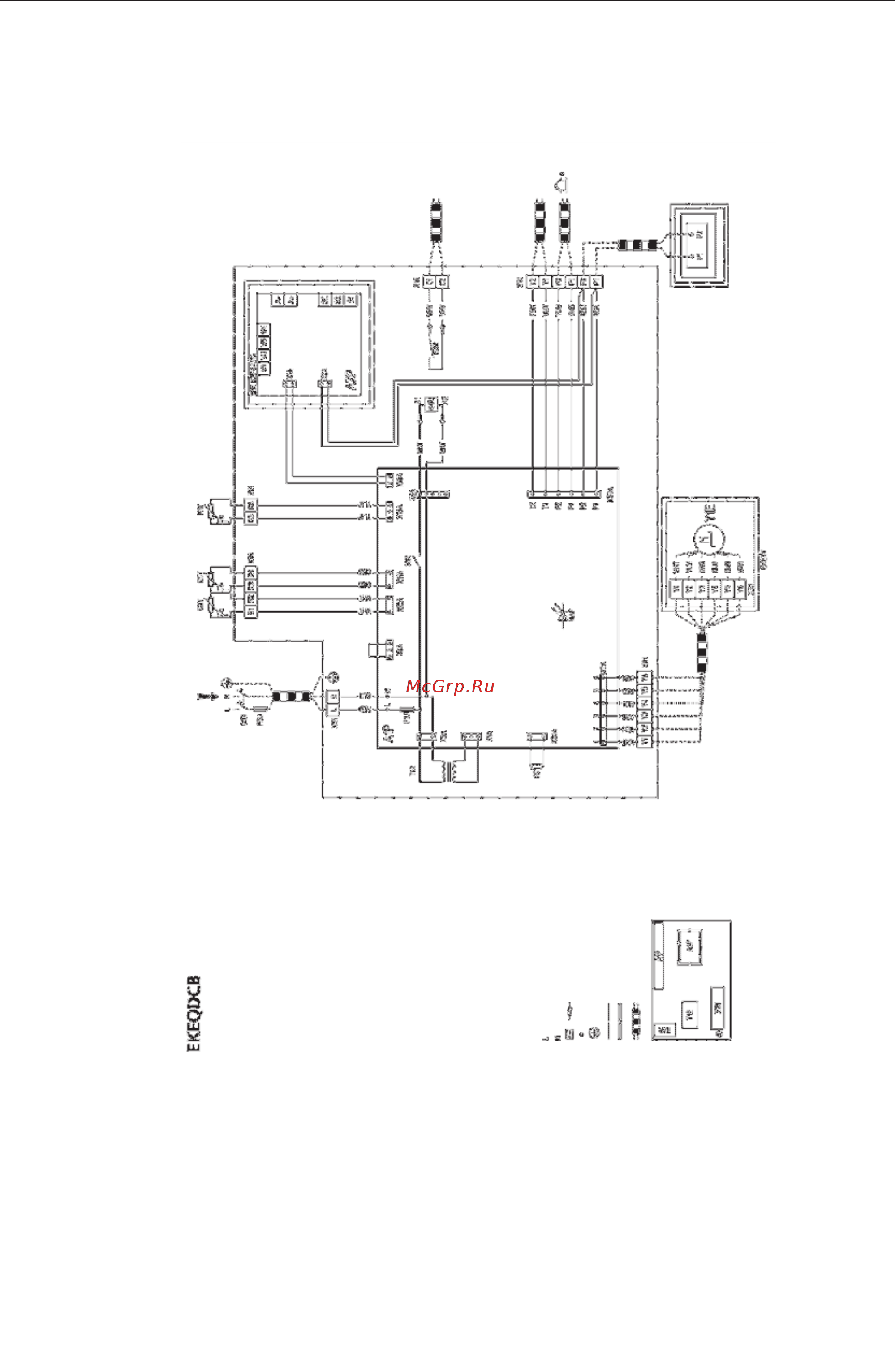

Wiring Diagram of Control Box ESiEN09-06
58 Control Box EKEQ - CBV3
3. Wiring Diagram of Control Box
3.1 D-box
~50Hz
230V
A1P
A2P
F1U
F3U
HAP
K1R
K4R
Q1DI
R7
R1T
R2T
R3T
T1R
X1M
X3M
X1M-R1/R2
X1M-R3/R4
X1M-R5/R6
X1M-Y1~6
X1M-C1/C2
X1M-P1/P2
X1M-F1/F2
X1M-T1/T2
Y1E
: Printed circuit board
: Printed circuit board (Option KRP4)
: Fuse (250V, F5A) (A1P)
: Field fuse
: Light emitting diode (service monitor green)
: Magnetic relay
: Magnetic relay (Fan) AC
: Earth leakage breaker
: Capacity adapter
: Thermistor (Air)
: Thermistor (Liquid)
: Thermistor (Gas)
: Transformer (220V/21.8V)
: Terminal block
: Terminal block
: Thermistor Liquid
: Thermistor Gas
: Thermistor Air
: Expansion valve
: Output: Fan ON/OFF
: Communication remote control
: Communication outdoor
: Input: ON/OFF
: Electronic expansion valve
1 Use copper conductors only.
2 BLK: Black / WHT: White / RED: Red / BLU: Blue /
BRN: Brown / GRY: Grey / GRN: Green / ORG: Orange /
PINK: Pink / YLW: Yellow
Position in switch box
: Live
: Neutral
: Connector
: Wire clamp
: Protective earth (Screw)
: Seperate component
: Optional accessory
: Field wiring
Wired remote control
Outdoor
ESiEN09-06.pdf 66 2/16/2010 4:42:35 PM
