EMRQ8~16ABY1
Daikin Altherma outdoor unit
4P501819-1 – 2017.08
Installation manual
10

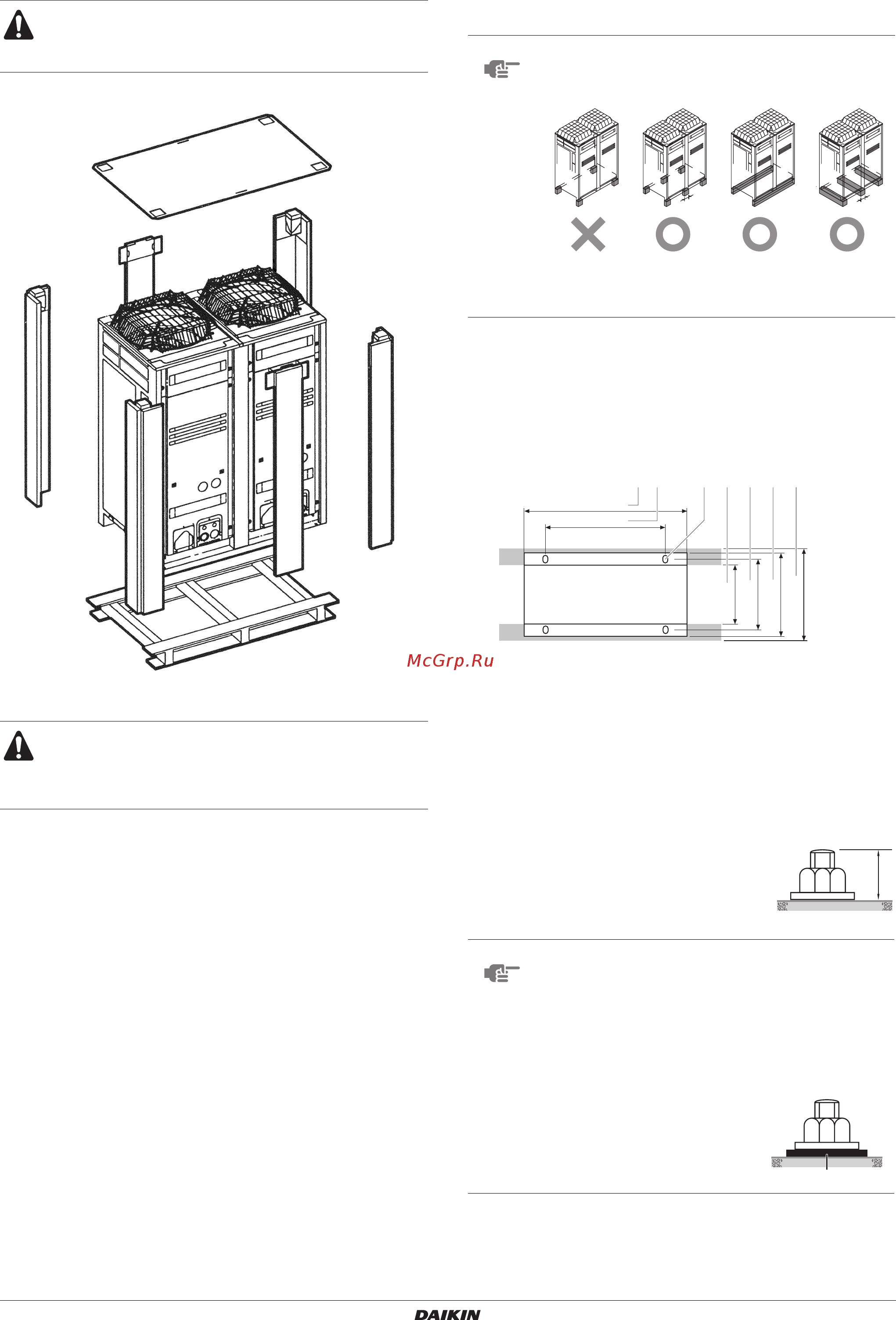

8.3. Unpacking
■ Relief the unit from its packing material:
Take care not to damage the unit when removing the shrink foil with a
cutter.
■ Remove the 4 bolts fixing the unit to its pallet.
■ Make sure that all accessories as mentioned in
"4.1. Accessories supplied with this unit" on page 3 are available
in the unit.
8.4. Installing the unit
■ Make sure the unit is installed level on a sufficiently strong base
to prevent vibration and noise.
■ The height of the foundation must at least be 150 mm from the
floor.
In heavy snowfall areas, this height should be increased
dependant on the installation place and condition.
■ The unit must be installed on a solid longitudinal foundation
(steelbeam frame or concrete) and make sure the base under
the unit is larger than the grey marked area:
(distances shown are in mm)
■ Fasten the unit in place using four
foundation bolts M12. It is best to screw in
the foundation bolts until their length
remains 20 mm above the foundation
surface.
CAUTION
To avoid injury, do not touch the air inlet or aluminium fins
of the unit.
WARNING
Tear apart and throw away plastic packaging bags so that
children will not play with them. Children playing with
plastic bags face danger of death by suffocation.
NOTE
When the installation height of the unit needs to be
increased, do not use stands to only support the
corners:
1 Hole for foundation bolt
2 Inner dimension of the base
3 Distance between foundation bolt holes
4 Depth of unit
5 Outher dimension of the base
6 Longitudinal foundation dimension
7 Distance between foundation bolt holes
NOTE
■ Prepare a water drainage channel around the
foundation to drain waste water from around the
unit.
During heating operation and when the outdoor
temperatures are negative, the drained water
from the outdoor unit will freeze up. If the water
drainage is not taken care of, the area around the
unit might be very slippery.
■ When installed in a
corrosive environment, use
a nut with plastic washer (1)
to protect the nut tightening
part from rust.
≥100
≥100
X Not allowed
O Allowed (units: mm)
729
765
≥765
631
1300
1162
123456 7
20 mm
1
4PEN501819-1.book Page 10 Wednesday, September 13, 2017 12:52 PM
