Indoor Unit SiBE12-908_A
191 Removal Procedure

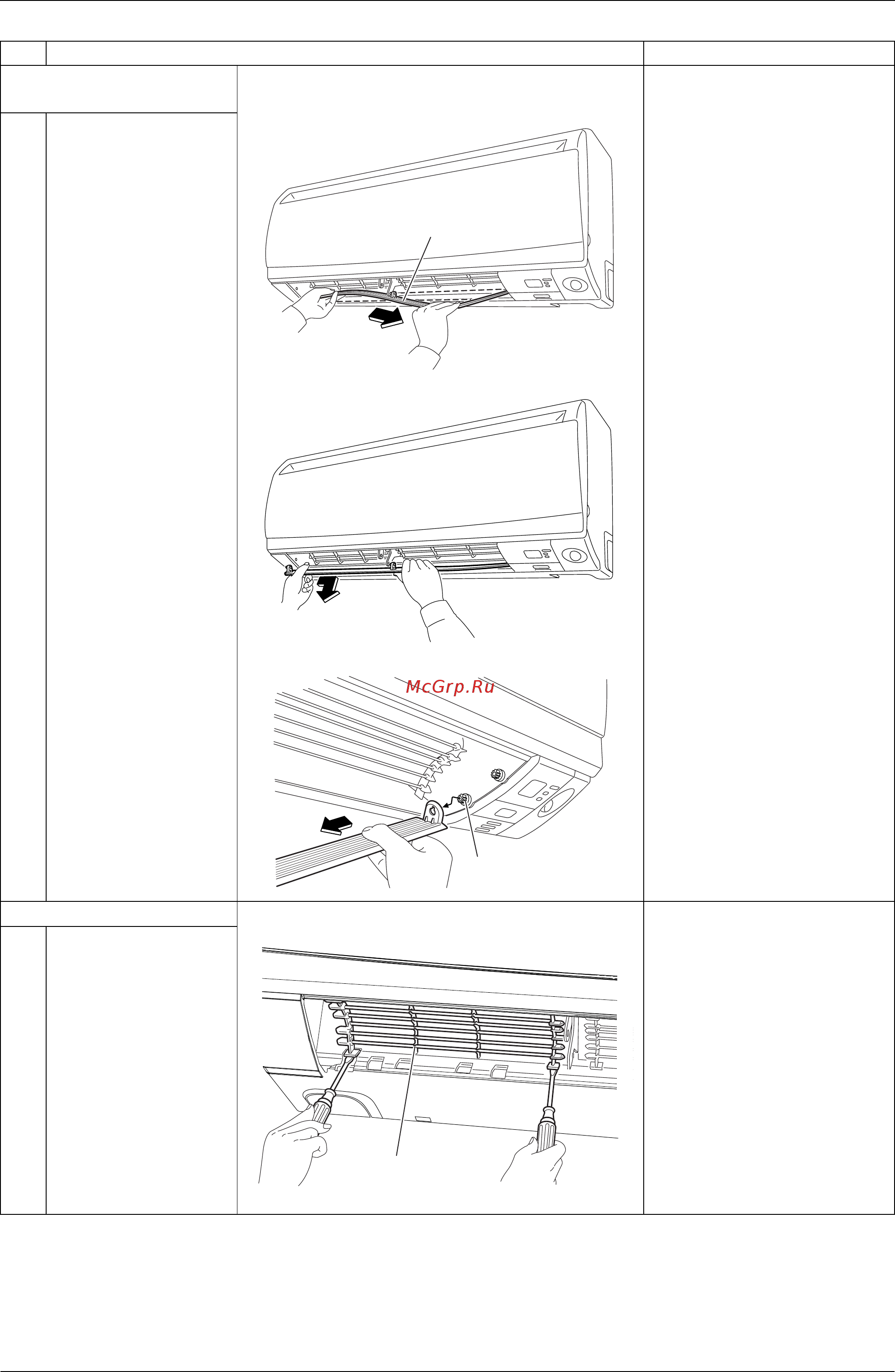

2. Removing the horizontal
blade (small)
1
Remove the horizontal
blade (small) while
bending the fixed part
at the center slightly.
2
Unfasten the left side.
3
Unfasten the key type
fixing shaft at the right
side.
3. Removing the fan guard
1
Unfasten the hooks at
the lower part of the fan
guard with a flat
screwdriver.
Step Procedure Points
(R10296)
Horizontal blade (small)
(R10297)
(R10298)
Key
(R10299)
Fan guard
