REGULATION THE GAS
Regulating the gas
Adaptation for different types of gas.
If the appliance requires a different type of gas
than the kind available (see the serial number
located near the hinge of the oven door), the
injectors must be changed, the minimum ad-
justed.

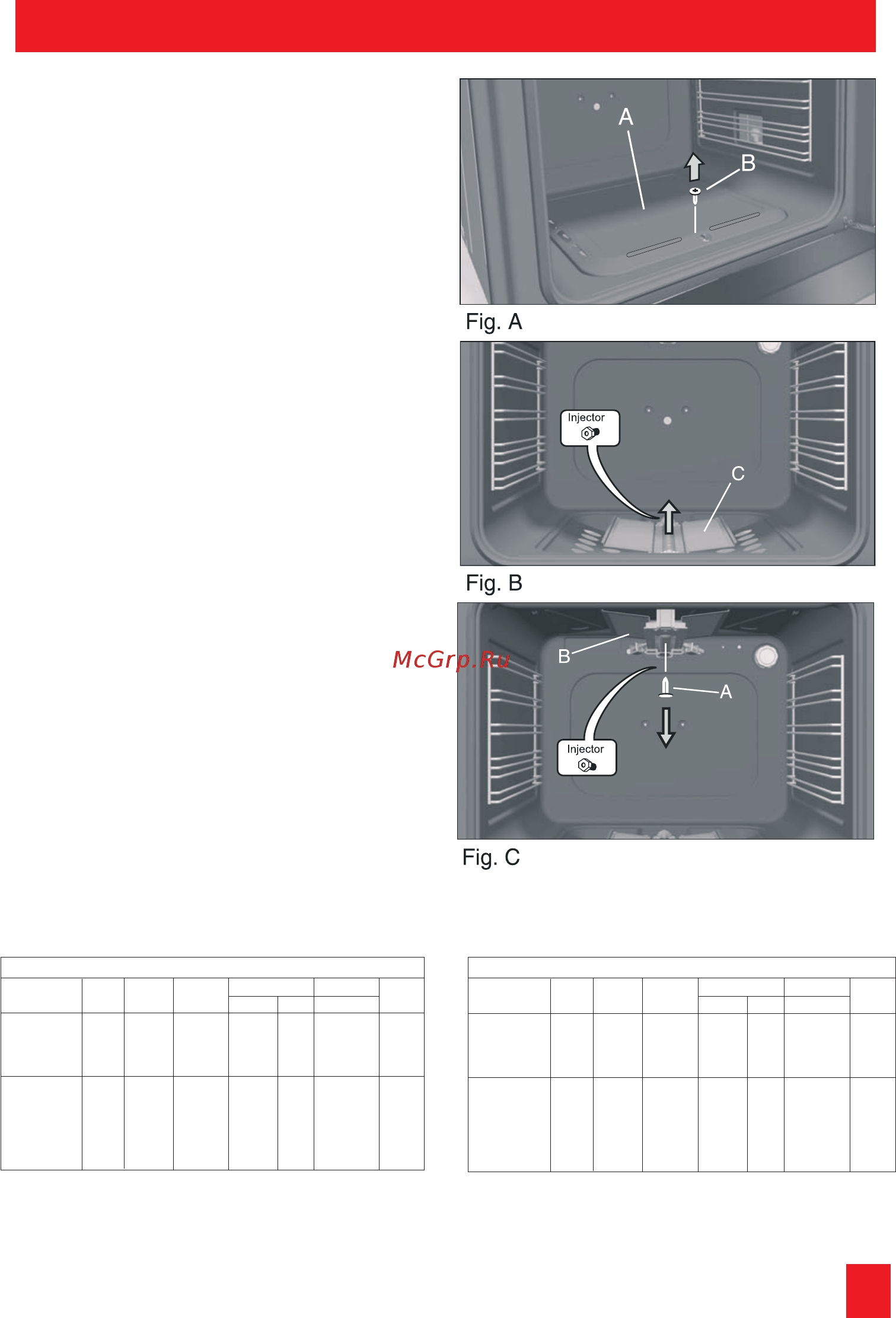

Oven burner
To change the oven injector, it is necessary
to act as follows: open the oven door, remove
the lower side A , unscrew screw В (fi .g A) and
disassemble the oven burner С (see fi g.B).
Change the injector (see fi g. B) and replace it
with another one suitable for the new gas type
(see table D).
Re-assemble everything in the opposite di-
rection, paying attention to place the burner in
the right way on its rear slot.
Grill burner
To change the grill injector, it is necessary to
act as follows: open the oven door, unscrew
screw A and disassemble the grill burner С (see
fi g. C). Change the injector (see fi g. C) and re-
place it with another one suitable for the new
gas type (see table D).
Re-assemble everything in the opposite di-
rection, paying attention to place the burner in
the right way on its rear slot.
TAB. D
N°
By pass
GENERAL INJECTORS TABLE
Kind of gas
mbar
Nozzle
Burners
Power KW Consum.
N° max. min. max.
NATURAL 20 115 Oven 2,40 0,83 229 l/h reg.
G 20 96 Grill 1,50 143 l/h
BUTANE 28-30 75 Oven 2,40 0,83 175 g/h 48
G 30 58M Grill 1,50 109 g/h
PROPANE 37
G 31
N°
By pass
GENERAL INJECTORS TABLE
Kind of gas
mbar
Nozzle
Burners
Power KW Consum.
N° max. min. max.
NATURAL 20 109 Oven 2,40 0,83 229 l/h reg.
G 20 96 Grill 1,50 143 l/h
BUTANE 28-30 73 Oven 2,40 0,83 175 g/h 48
G 30 60 Grill 1,50 109 g/h
PROPANE 37
G 31
Fan assisted gas oven
