Korting HG640CRN [14/30] Building into fitted kitchen units

Building into fitted kitchen units

These hobs are designed for installation in fitted kitchen units up to 600 mm deep with

suitable characteristics.

Any cabinet side panels taller than the height of the hob itself must be at least 150

mm away from the opening into which the hob is inserted.

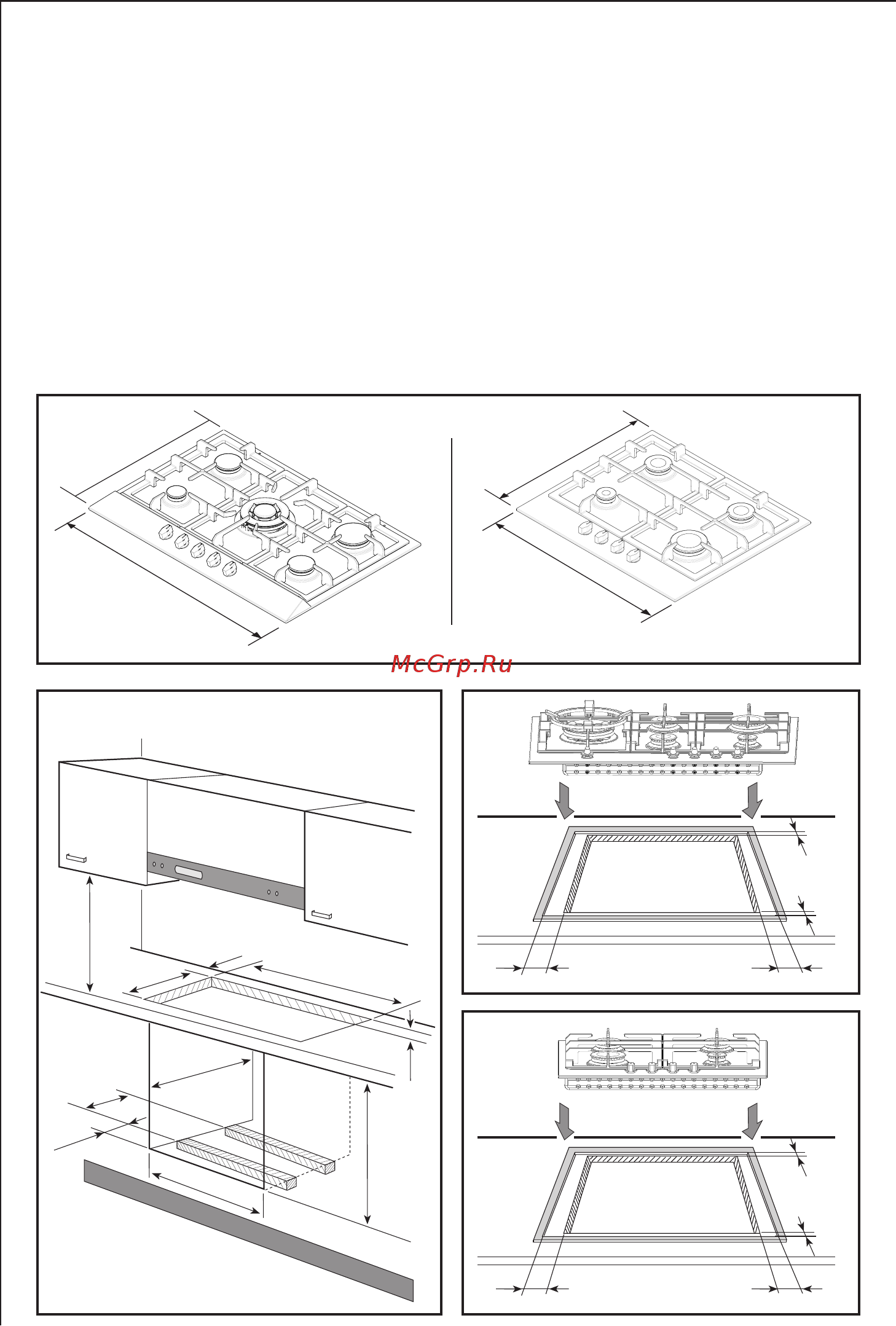

The dimensions of the hob and the installation opening are shown in the illustrations

6 - 7 .

Fig. 6

Fig. 8

Fig. 8A

Fig. 7

Insertion and fixing

Fit the sealing gasket supplied as shown in figure 8 (for hobs size 745 x 510 mm) or

fig. 8A (for hobs size 595 x 510 mm), taking care that the edges are aligned without

overlapping.

87,587,5

6,5

13,5

12,512,5

6,5

13,5

510

745

510

595

560

480

650 min

240

140

550 min

593

560

570
