Korting HG675CN [25/32] Do not use open flame when searching for gas leaks
![Korting HG675CN [25/32] Do not use open flame when searching for gas leaks](/views2/1076682/page25/bg19.png)
Important: to connect the appliance to LPG supply, place a pressure regulator which is compliant with the
current standards between the pipe and the gas tank.
Attention: when finished, check that there are no gas leaks. Use soap and water or special liquids to
ensure that there are no gas leaks.
DO NOT USE OPEN FLAME WHEN SEARCHING FOR GAS LEAKS.
Warning: the use of rubber flexible hose fastened with hose clamps is prohibited because it cannot be
inspected.
Adapting the hob to the gas in use.
It is possible to use different types of gas by replacing the injectors of the gas burners.
If spare injectors are not supplied with the appliance, they are available in the authorized Service centers.
Please, see the table above in order to choose the right type of injectors for replacement.
The injectors are identified by their diameter stamped on the body of the injector itself.
Replacing the injectors.
:
Remove the grids and burner caps from the hob;

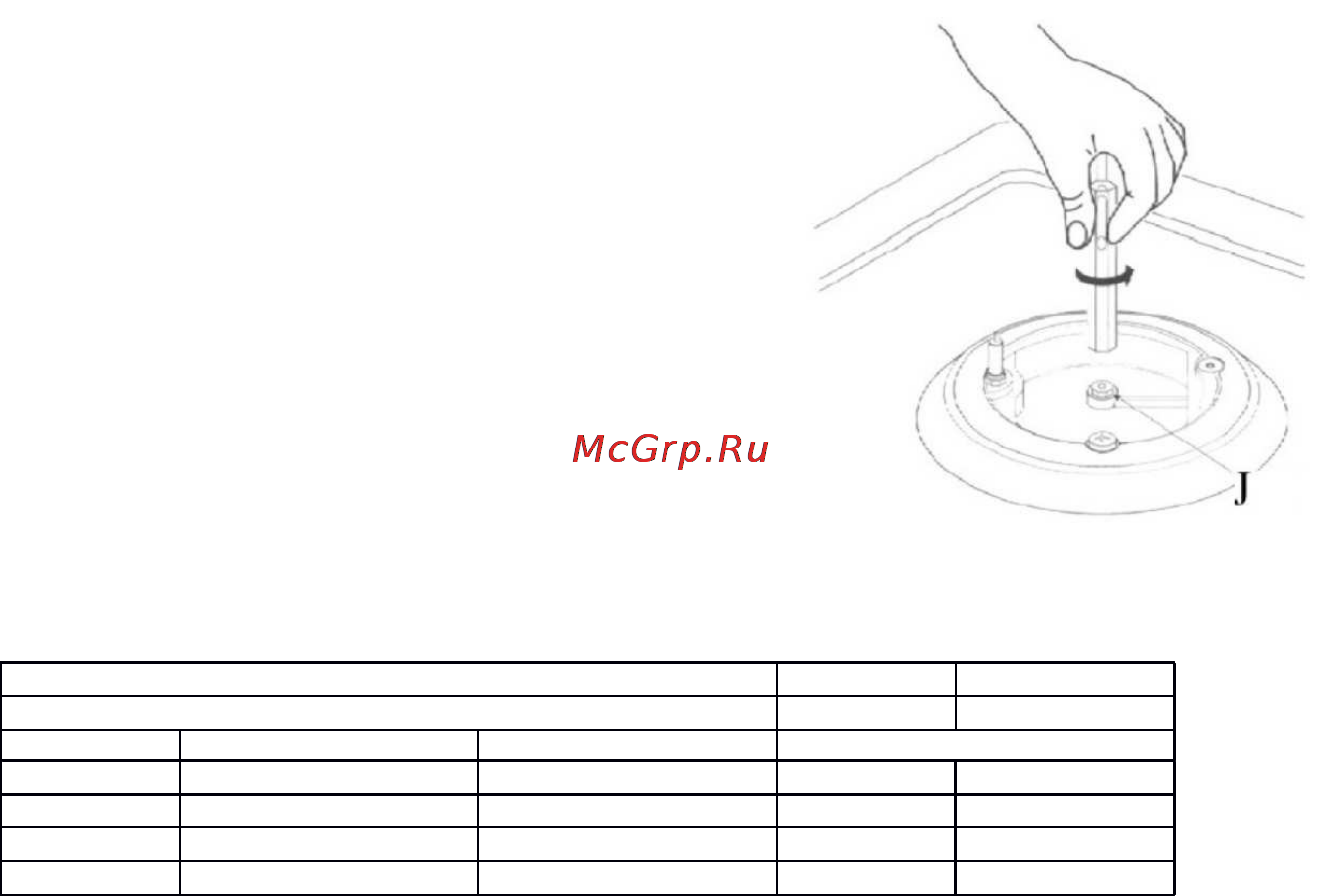

See figure 7 below.
:
Using a socket wrench, replace the injectors (J)
with the suitable ones for the type of gas used.
:
Replace the burners and the grids to their
original places.
Figure 7.
INJECTORS TABLE
Type of gas G20 G30/G31
Gas pressure 20 mbar 28-30/37 mbar
Burner type Max power input, kW Min power input, kW injector Ø
Auxiliary 1.00 0.30 0.72 0.50
Semi-Rapid 1.75 0.44 0.97 0.65
Rapid 3.00 0.75 1.15 0.85
Triple Ring 3.30 1.50 1.24 0.91
ADJUSTING THE MINIMUM FLAME WHEN CHANGING THE GAS TYPE
When changing the type of gas, the adjustment of the flame must be carried out as follows:
- light the burner and remove the knob;
- turn the tap to the minimum setting and insert a screwdriver in the rod;
- tighten and reduce the flame, or loosen to increase the flame.
See figure 7 above.
Note: for gas type G30/G31 fully tighten the regulating screw.
Then check the following:
- quickly turn the knob form max. to min. position and check if the flame doesn’t blow out.
- for the burners with gas safety thermocouple the flame must slightly lick the thermocouple
- if after several minutes the flame doesn’t blow out, the adjusting has been made correctly. Otherwise,
repeat the operation of adjusting the minimum flame, increasing the setting.
