TECHNICAL CHARACRETISTICS

Voltage and power supply frequency: 220-240 V ~ 50/60 Hz

For the detailed information about the technical characteristics of the oven, see the technical data label on

the back of the last page of the present manual, or the product data plate, that is located on the bottom of

the appliance.

INSTALLATION

Remove the appliance from the package and check that the product and power cord are NOT damaged.

Otherwise, contact the retailer before operating the appliance.

Packaging (e.g. paper, polystyrene) may be hazardous for children (danger of suffocation). Keep packaging

out of the reach of children.

The product must be installed and connected correctly to the mains power supply, following the

manufacturer's instructions and only by QUALIFIED PERSONNEL.

Before performing any type of work, always check out that the appliance is DISCONNECTED from the

mains power supply.

To guarantee proper operation of the built-in appliance, the kitchen furniture unit must have the following

characteristics:

- the panels adjacent to the hob must be constructed in heat resistant materials;

- in case of veneered wood furniture units, the glue must be heat resistant to temperatures up to 100°C;

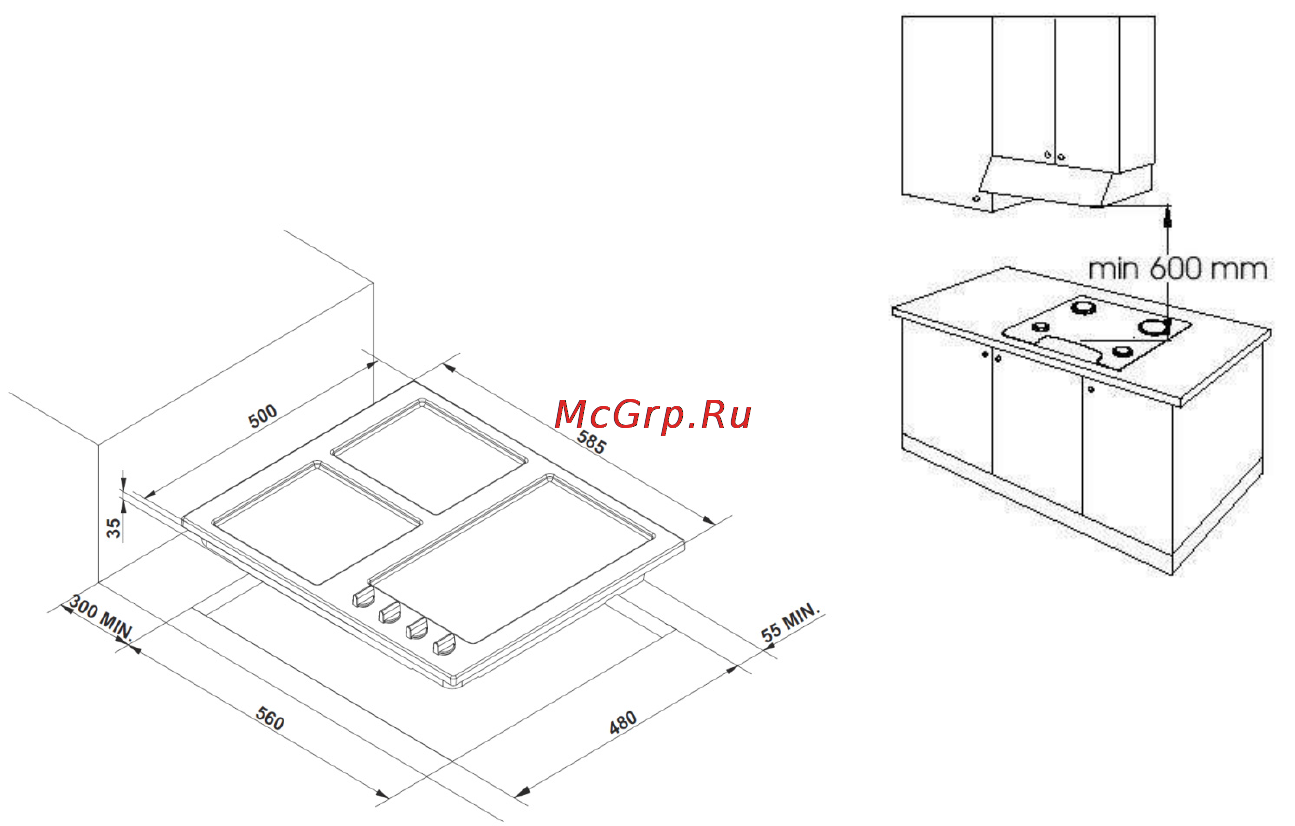

The dimensions of the hole to be performed in the worktop and the minimum distances between rear and

side walls and the sizes of the appliances are shown in the figure 1 below.

Note: See figure 1.1

for 60 cm. models.

See figure 1.2 for 90 cm. models

Figure 1.1.
