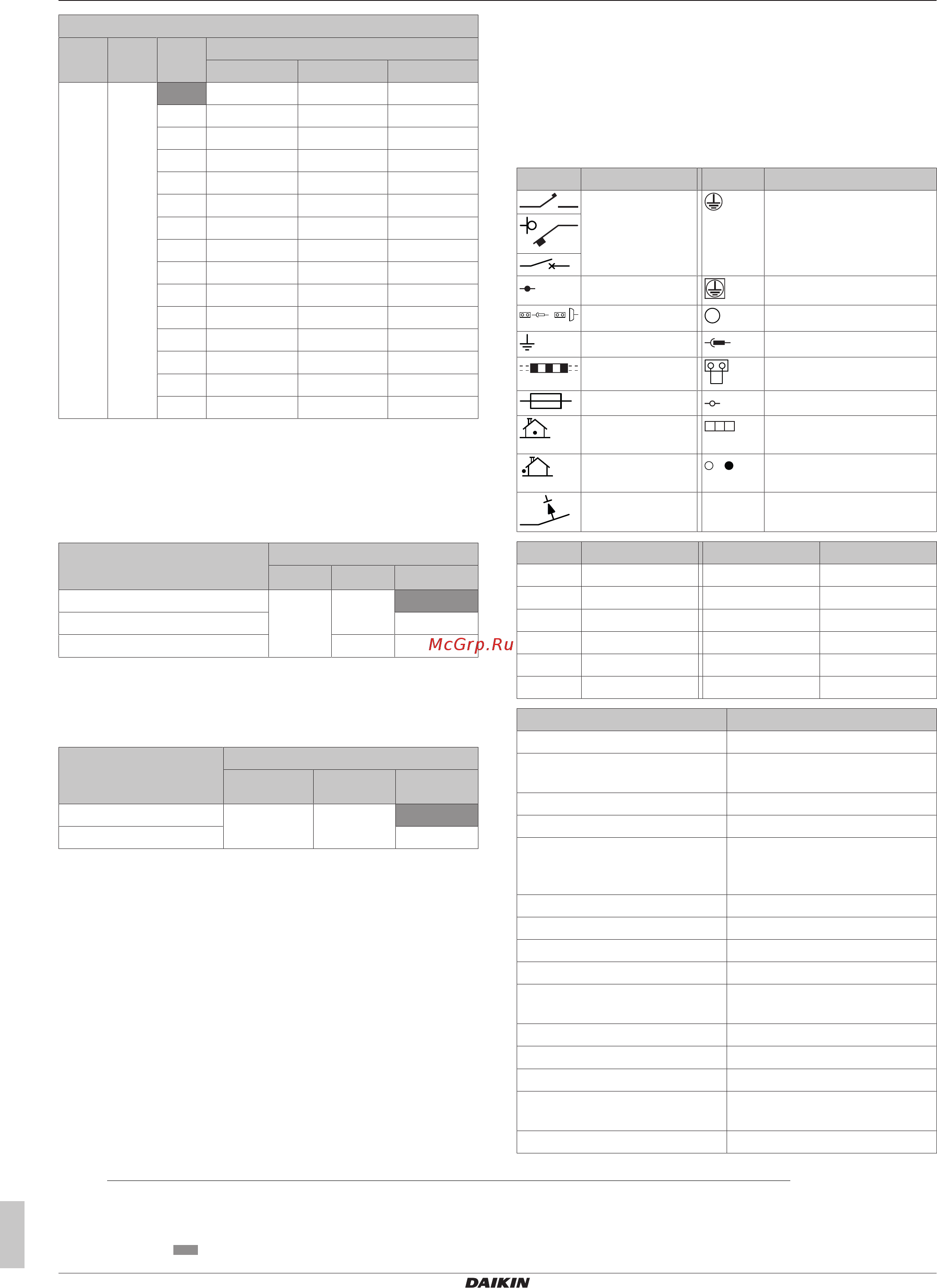

16 Technical data
Installation and operation manual
22
FXSN50~112A2VEB
CO₂ Conveni-Pack: indoor unit
4P602815-1D – 2020.07
External static pressure
(1)
M SW/C1 —/C2 Class
50 71 112
13(23) 6 01 30 40 50
02 — — —
03 30 — —
04 40 40 —
05 50 50 50
06 60 60 60
07 70 70 70
08 80 80 80
09 90 90 90
10 100 100 100
11 110 110 110
12 120 120 120
13 130 130 130
14 140 140 140
15 150 150 150
Time to clean air filter
This setting must correspond with the air contamination in the room.
It determines the interval at which the TIME TO CLEAN AIR FILTER
notification is displayed on the user interface. When using a wireless
user interface, you must also set the address (see the installation
manual of the user interface).
If you want an interval of…
(air contamination)
Then
(1)
M SW/C1 —/C2
±2500h (light) 10(20) 0 01
±1250h (heavy) 02
No notification 3 02
Function for refrigerant leak detection
If the CO
2
refrigerant leak detector (field supply) is connected to the
indoor unit (symbols T1, T2), setting —/C2 of mode 12(22) must be
changed to 08. See "7.3.1About refrigerant leak detection"[410].
If the CO
2
refrigerant
leak detector (field
supply) is…
Then
(1)
M SW/C1 —/C2
NOT installed 12(22) 1 01
Installed 08
▪ 2 or more user interfaces: When using 2 or more user
interfaces, one must be set to "MAIN" and the other to "SUB". For
setting procedure see the installation and operation manual of the
used user interface.
16 Technical data
▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
Business Portal (authentication required).
16.1 Wiring diagram
16.1.1 Unified wiring diagram legend
For applied parts and numbering, refer to the wiring diagram on the
unit. Part numbering is by Arabic numbers in ascending order for
each part and is represented in the overview below by "*" in the part
code.
Symbol Meaning Symbol Meaning
Circuit breaker Protective earth
Connection Protective earth (screw)
,
Connector
A
Rectifier
Earth Relay connector
Field wiring Short-circuit connector
Fuse Terminal
INDOOR
Indoor unit Terminal strip
OUTDOOR
Outdoor unit Wire clamp
Residual current
device
Symbol Colour Symbol Colour
BLK Black ORG Orange
BLU Blue PNK Pink
BRN Brown PRP, PPL Purple
GRN Green RED Red
GRY Grey WHT White
YLW Yellow
Symbol Meaning
A*P Printed circuit board
BS* Pushbutton ON/OFF, operation
switch
BZ, H*O Buzzer
C* Capacitor
AC*, CN*, E*, HA*, HE*, HL*,
HN*, HR*, MR*_A, MR*_B, S*, U,
V, W, X*A, K*R_*, NE
Connection, connector
D*, V*D Diode
DB* Diode bridge
DS* DIP switch
E*H Heater
FU*, F*U, (for characteristics,
refer to PCB inside your unit)
Fuse
FG* Connector (frame ground)
H* Harness
H*P, LED*, V*L Pilot lamp, light emitting diode
HAP Light emitting diode (service
monitor green)
HIGH VOLTAGE High voltage
(1)
Field settings are defined as follows:
• M: Mode number – First number: for group of units – Number between brackets: for individual unit
• SW: Setting number / C1: First code number
• —: Value number / C2: Second code number
• : Default
