ROG STRIX B360-H GAMING BIOS Manual
1.2.1 EZ Mode

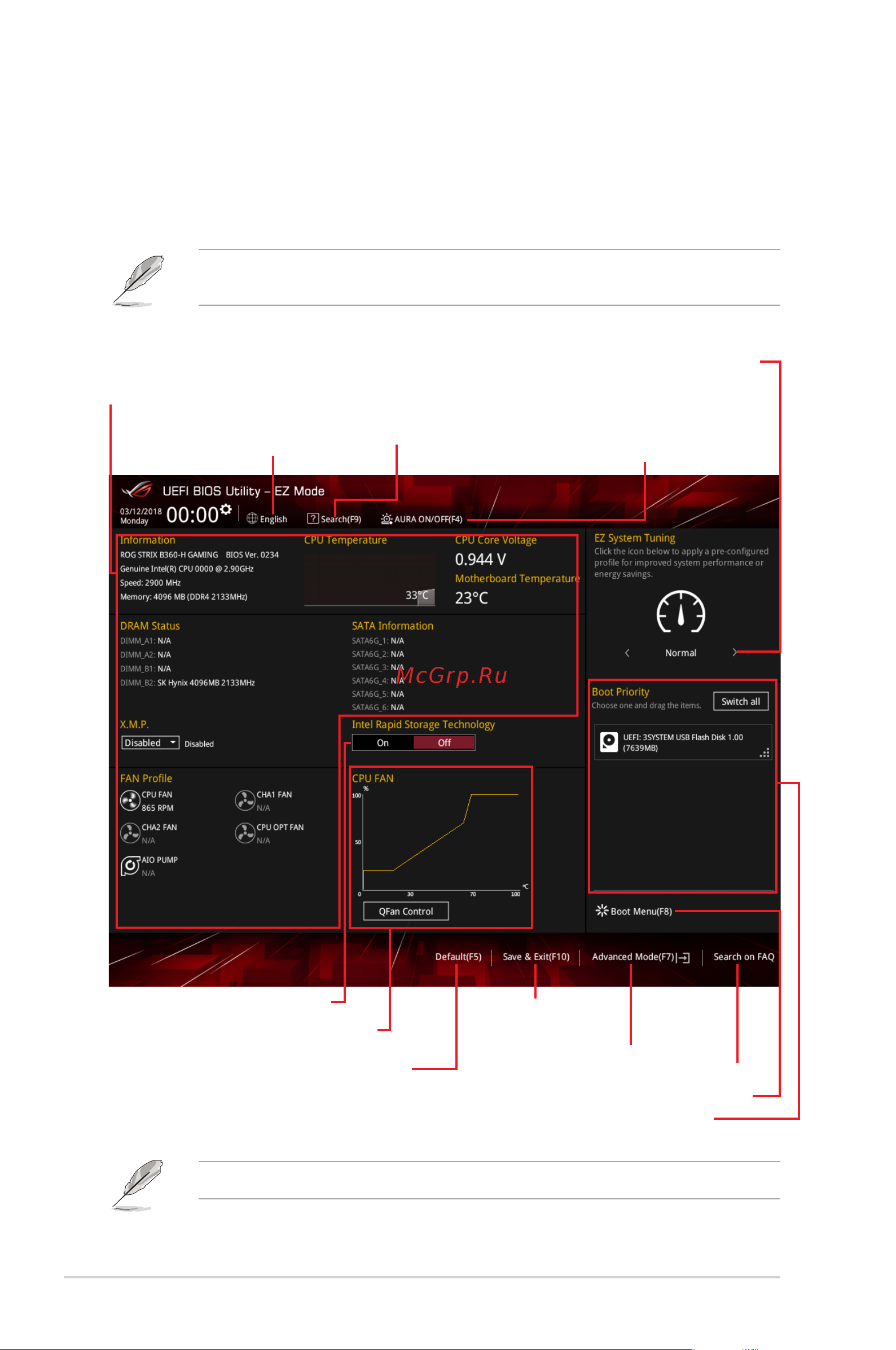

The EZ Mode provides you an overview of the basic system information, and allows you to
select the display language, system performance, mode and boot device priority. To access
the Advanced Mode, select Advanced Mode or press the <F7> hotkey for the advanced
BIOS settings.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section Boot menu for details.
The boot device options vary depending on the devices you installed to the system.
Selects the display language
of the BIOS setup program
Searches by BIOS item name,
enter the item name to nd the
related item listing
Turns the RGB LED lighting
or functional LED on or off
Displays the CPU/motherboard
temperature, CPU voltage output, CPU/
chassis/power fan speed, and SATA
information
Displays the system properties of
the selected mode. Click < or > to
switch EZ System Tuning modes
Loads optimized
default settings
Displays the CPU Fan’s speed. Click
the button to manually tune the fans
Enables or disables the Intel Rapid
Storage Technology support
Saves the changes
and resets the system
Click to display boot devices
Selects the boot device priority
Click to go to Advanced mode
