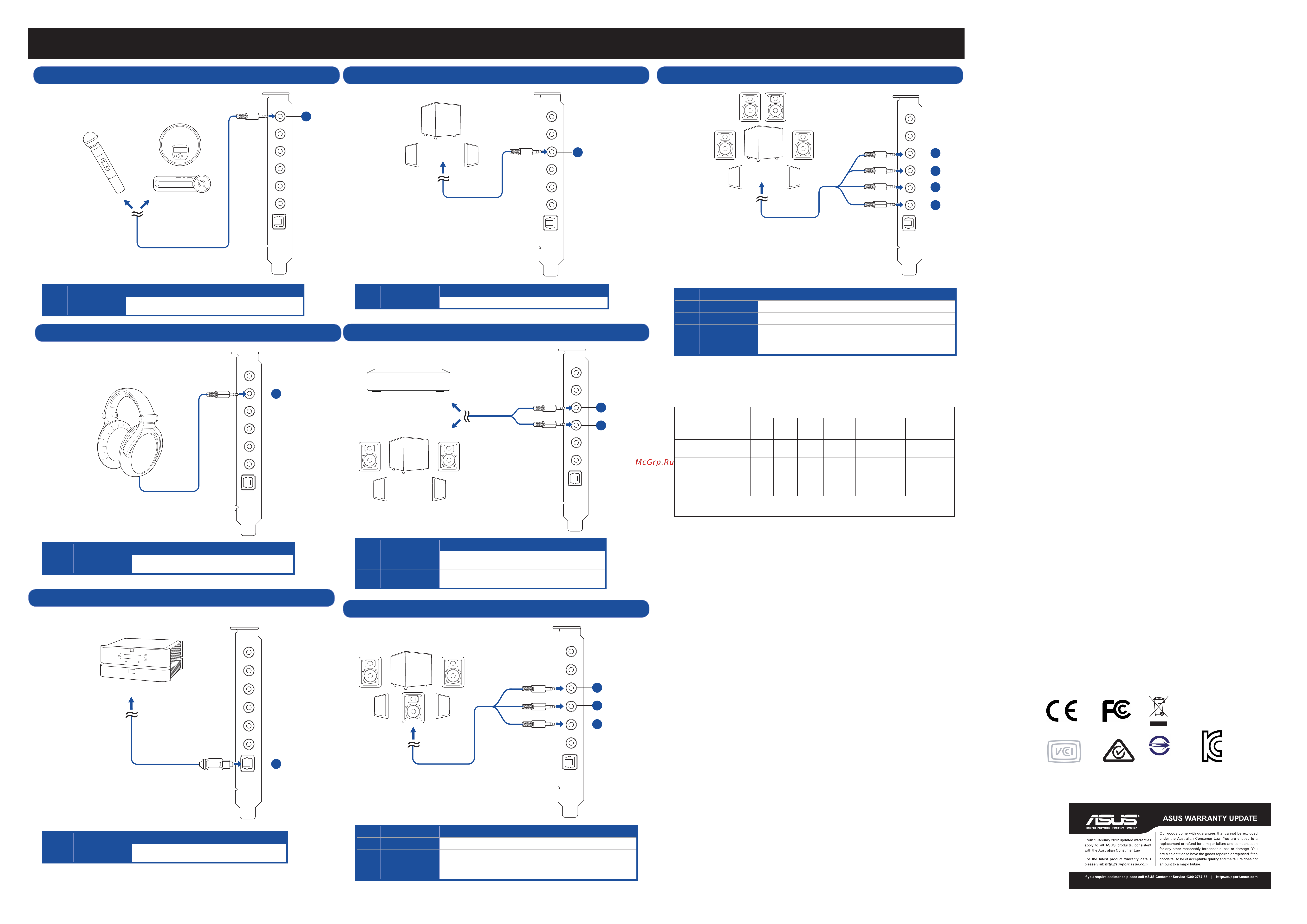

Connectivity Options
Connecting 4 Channel Speakers / Power Amplier
Connecting 7.1 Channel Speakers
Connecting 5.1 Channel Speakers/ 5.1 Channel Headphone
Connecting 2 channel speakers
Connecting Stereo Headphones
Connecting Microphone/ Line In
Connecting to TOSLINK and COAXIAL SPDIF input connection
AVR
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
S/PDIF
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
OR
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
Amplifier
OR
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
Mic/Line-in
Headphone
Front
Rear
Center
Side
S/PDIF Out
AEEE Yönetmeliğine Uygundur
CANICE-3(B)/NMB-3(B)
MSIP-REM-MSQ-LUX8CM6632AE
D33005
RoHS
1
No Item Description
1 Line Input Jack Connect the3.5mm plugof the CD/MP3Playeror anyotherLinelevel
analogaudiosourcesintothisLine-Injackforsoundrecording.
No Item Description
1 Headphone Jack Built-inhigh-qualityampliertodriveheadphones.Connectyour
stereo headphones directly to this jack.
1
1
No Item Description
1 Optical cable Plugyourdecoder’sTOSLINKopticalcableintotheS/PDIF-Out
connector.
No Item Description
1 Front Out Port Connect the 2 speaker set’s 3.5mm plug into this Front Out jack.
No Item Description
1 Front Out port Connect the front-channel 3.5mm plug of your 5.1 channel speakers into this jack.
2 Rear Out port Connect the rear-channel 3.5mm plug of your 5.1 channel speakers into this jack.
3 Center Out port Connect the center-channel 3.5mm plug of your 5.1 channel speakers into this
jack.
No Item Description
1 Front Out Port Connect the front-channel 3.5mm plug of your 4-channel speakers
into this jack.
2 Rear Out Port Connect the surround-channel 3.5mm plug of your 4-channel
speakers into this jack.
1
1
1
2
2
3
1
2
3
4
No Item Description
1 Front Out port Connect the front-channel 3.5mm plug of your 7.1 channel speakers into this jack.
2 Rear Out port Connect the rear-channel 3.5mm plug of your 7.1 channel speakers into this jack.
3 Center Out port Connect the center-channel 3.5mm plug of your 7.1 channel speakers into this
jack.
4 Side Out port Connect the side-channel 3.5mm plug of your 7.1 channel speakers into this jack.
