Asus Xonar AE [5/7] English

Sonic Studio User Guide

English

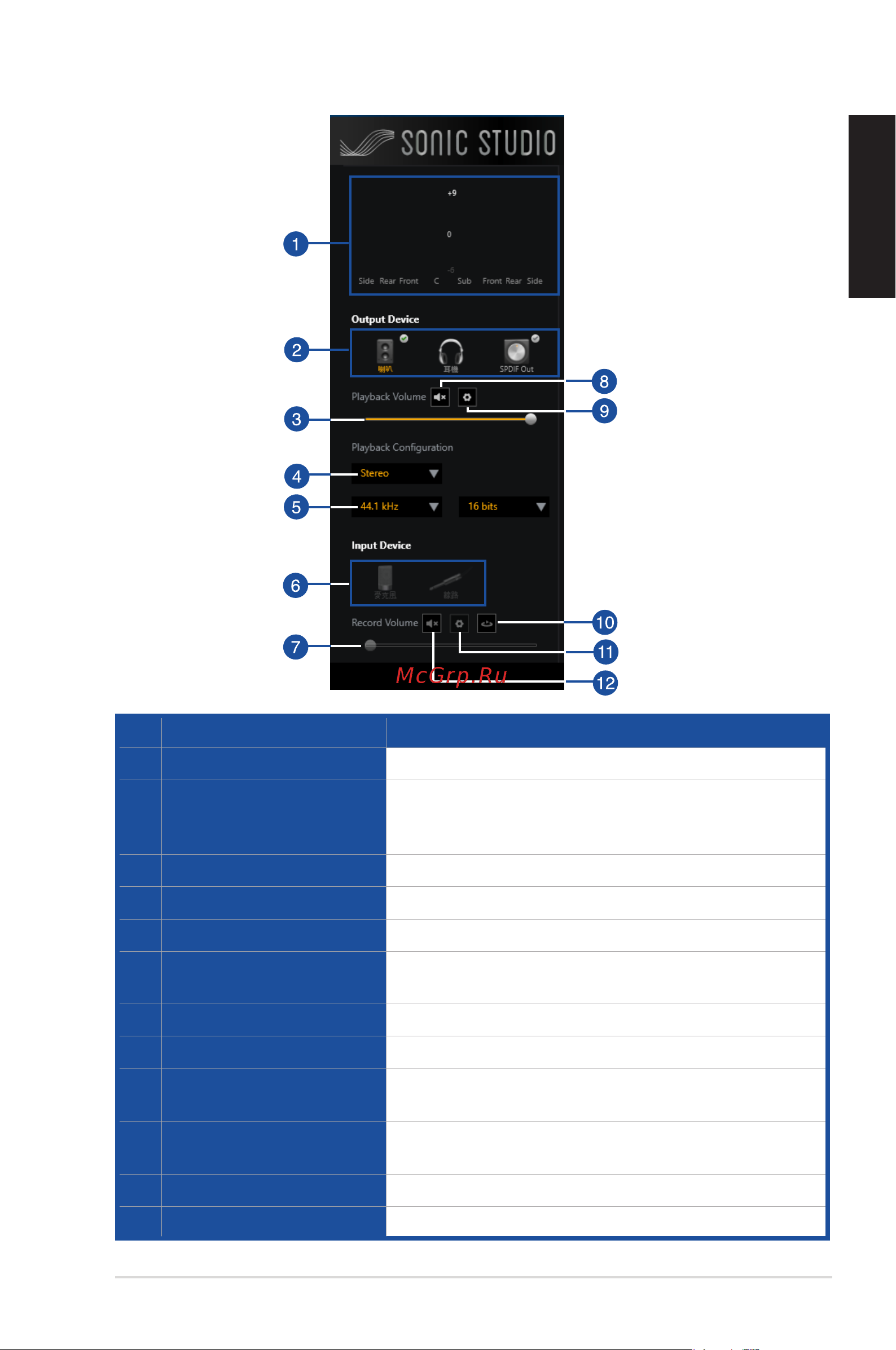

No. Item Description

1 Display

Displays signal meters.

2 Output Device Select

Click to select an output source: analog speakers,

headphones, Line out or S/PDIF device.

Right-click an output source to set as the default device.

3 Playback Volume Control

Drag this slider to increase or decrease playback volume.

4 Playback Channel

Click to select appropriate playback channels.

5 Sample Rate

Click to select sample rate and bit rate.

6 Input Device Select

Click to select an input source: MIC in, Line in or Aux in.

Right-click an input source to set as the default device.

7 Recording Volume Control

Drag this slider to increase or decrease record volume.

8 Playback Volume Mute

Click to mute/unmute volume playback.

9 Playback Setting

Click to open the mixer and adjust the volume for each

channel.

10 Listen to Device

Click to hear the current input device in the output audio

device.

11 Recording Volume Setting

Click to open mixer and adjust input device settings.

12 Recording Volume Mute

Click to mute/unmute recording volume.
