6-4 Chapter 6: Driver Installation
7. When the system nishes loading the RAID driver,
•
Replace the motherboard Support DVD with the Windows Server installation disc.
•
Remove the USB ash drive.

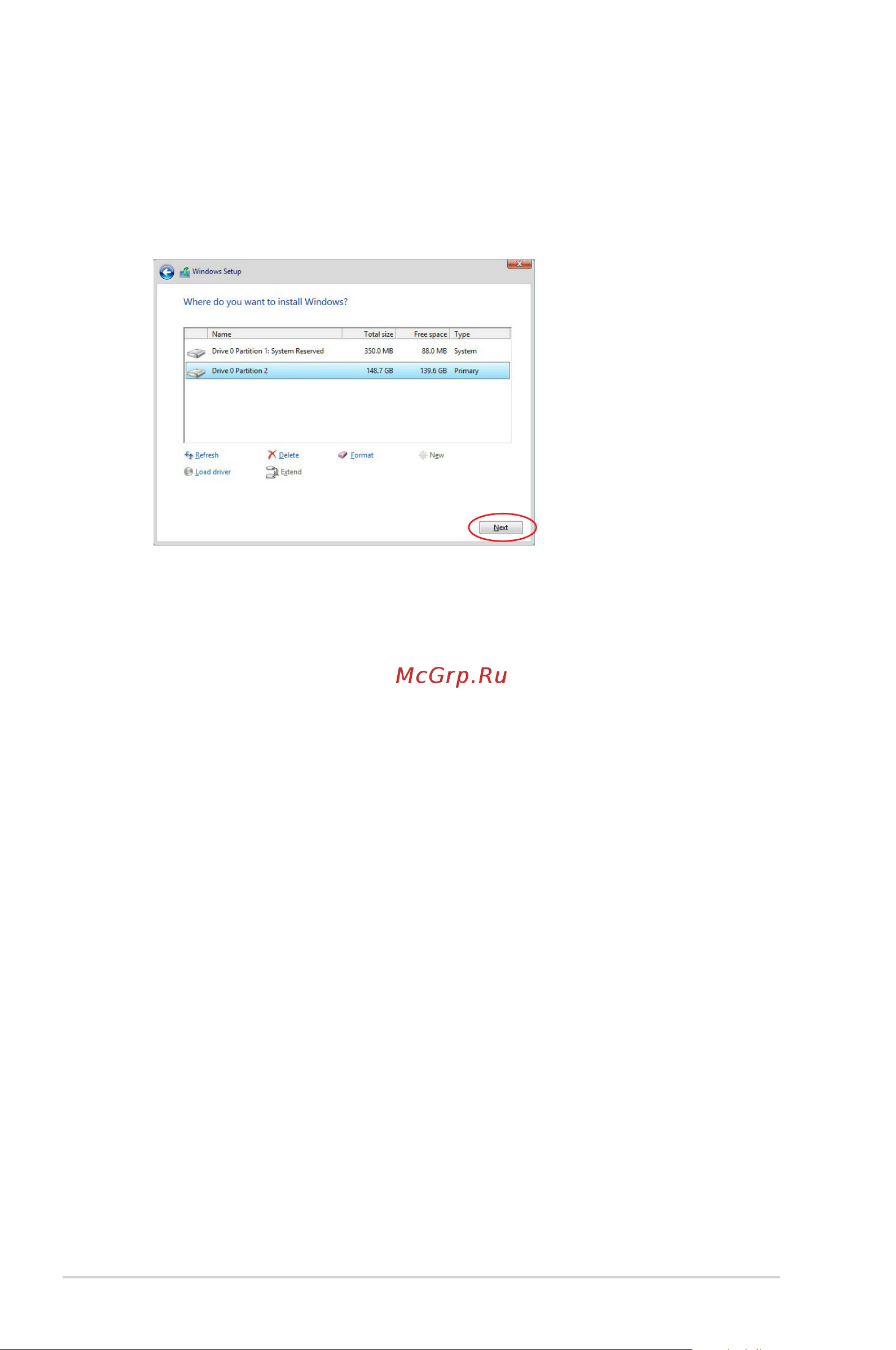

Select the drive to install Windows and click Next.
8. Setup then proceeds with the OS installation. Follow the onscreen instructions to
continue.
