2-26
Chapter 2: Hardware Information

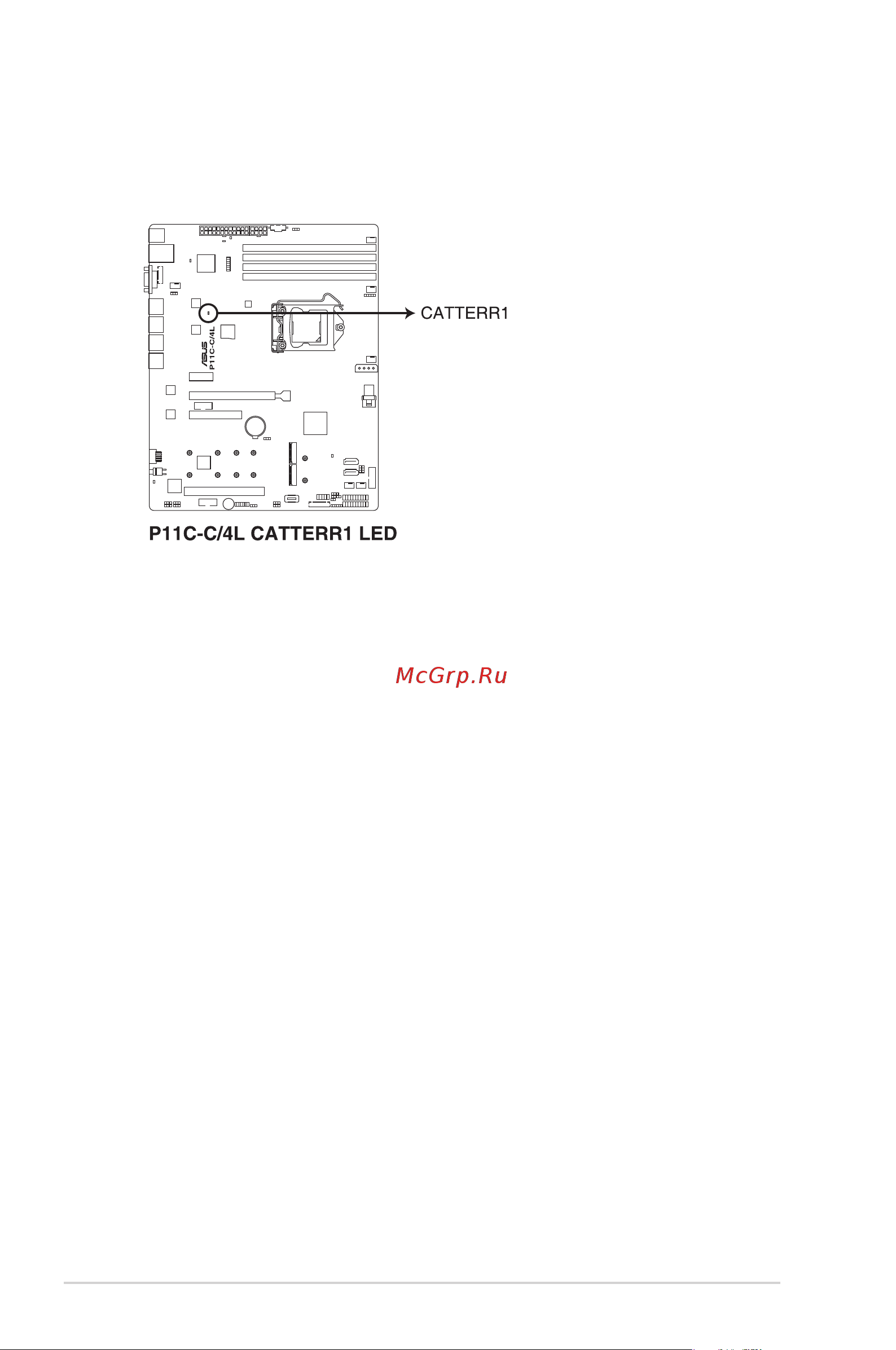

6. CATTERR LED (CATTERR1)
TheCATTERRLEDindicatesthatthesystemhasexperiencedafatalorcatastrophic
error and cannot continue to operate.
