Daikin FTKS20DVMW [162/205] Remove the fan motor
![Daikin FTKS35DVML [162/205] Remove the fan motor](/views2/1771745/page162/bga2.png)
Indoor Unit SiEBE04-507
152 Removal Procedure
4

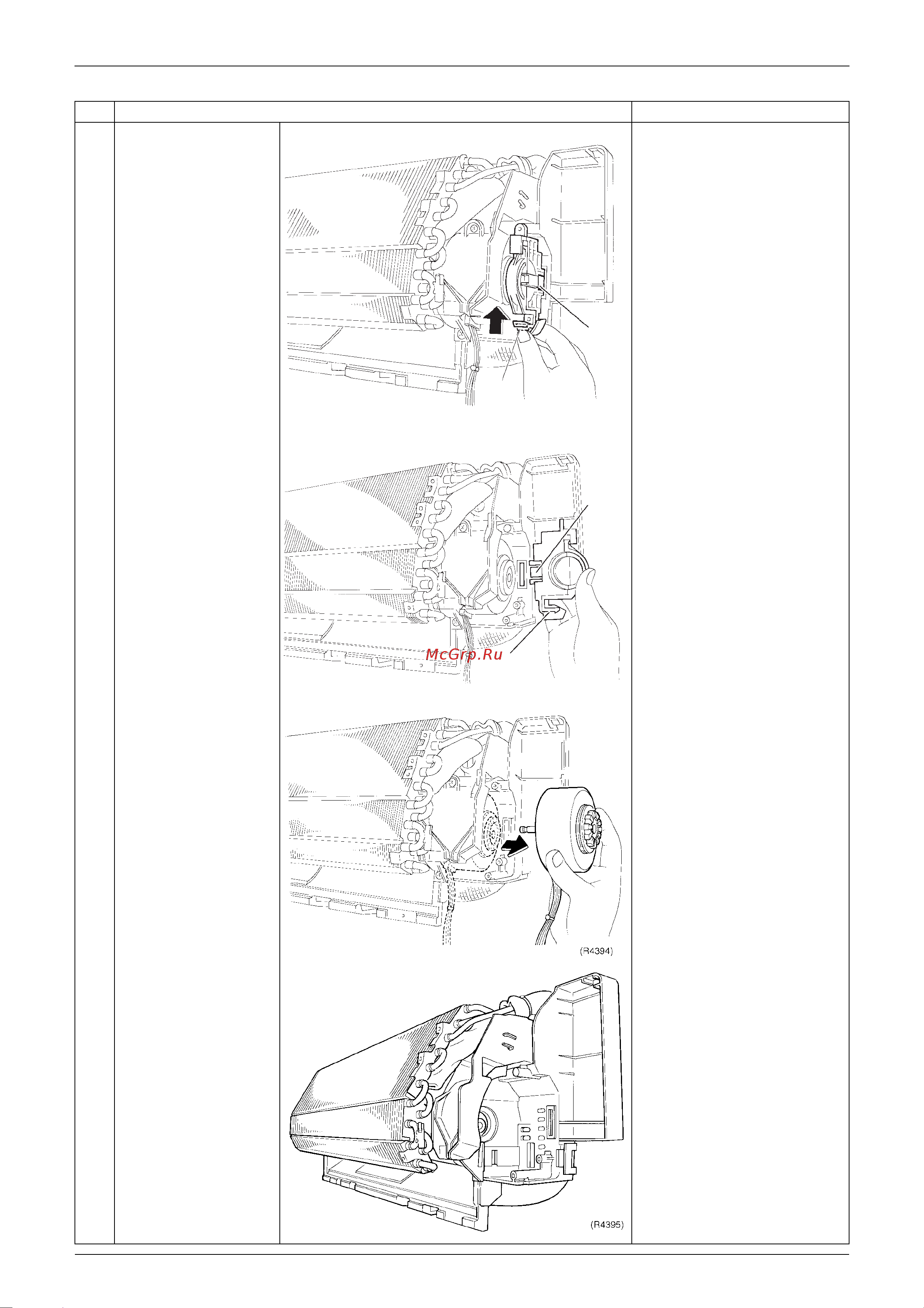

Unfasten the hook (a)
of the fan motor fixing
plate with your thumb.
5
Unfasten the hook (c).
6
Remove the fan motor.
Step Procedure Points
(R4392)
Hook(c)
Hook(a)
(R4393)
Hook(c)
Hook(a)
