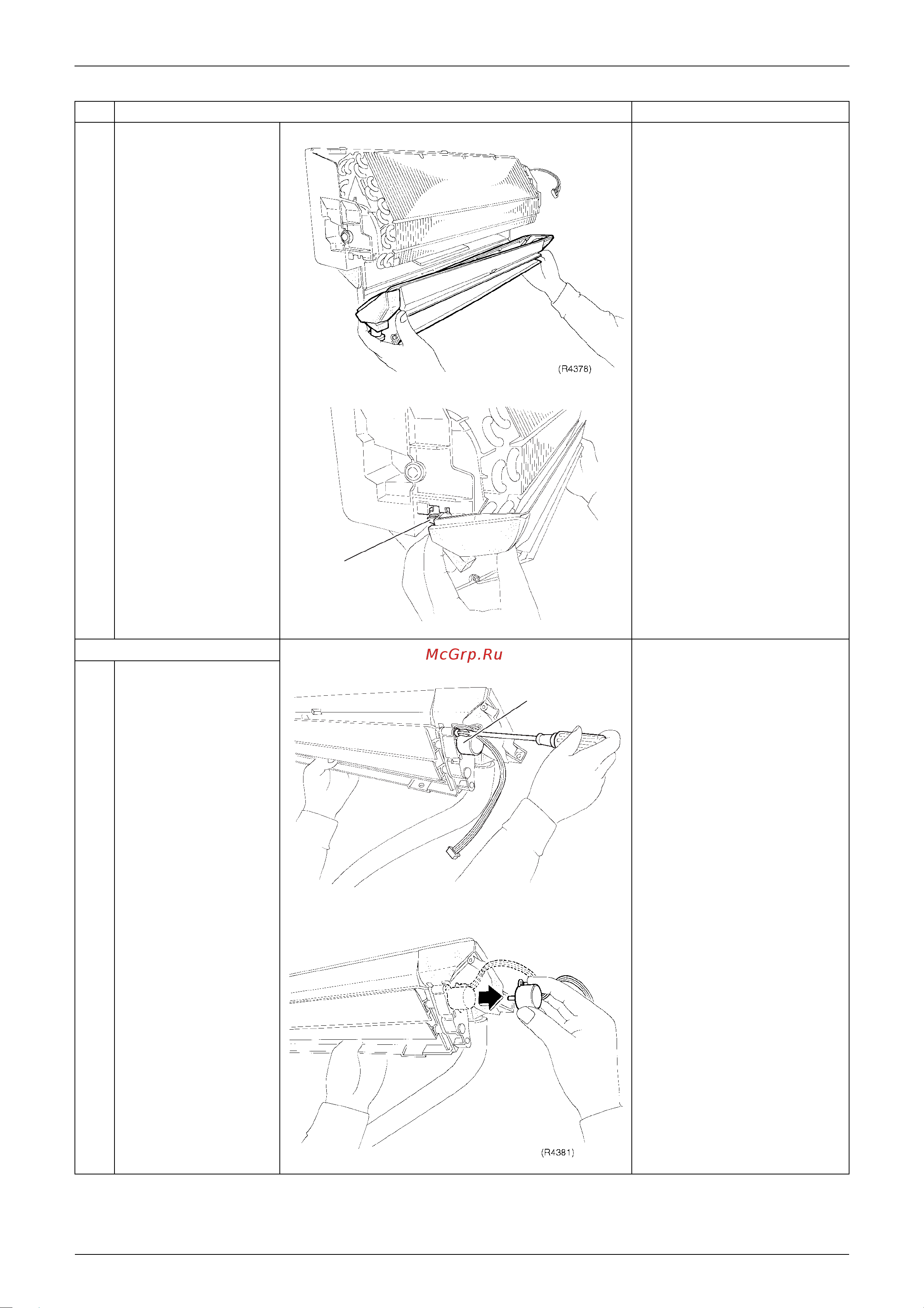

Indoor Unit SiEBE04-507
148 Removal Procedure
4
Remove the drain pan
toward yourself from
the indoor unit body.
Caution on Mounting
Make sure that the hook at
the left side is fitted in the
groove.
2. Removing the swing motor
1
Remove the screw of
the swing motor.
2
Pull out the swing
motor.
Step Procedure Points
(R4379)
Hook
(R4380)
Swing motor
