Daikin FTXS35D2VML [90/205] Fault diagnosis
![Daikin FTXS35D2VMW [90/205] Fault diagnosis](/views2/1771745/page90/bg5a.png)
Instruction SiEBE04-507
80 System Configuration
TEMP
ON/OFF
POWERFUL
MODE
FA N
SWING
SILENT
SENSOR
ECONO
COMFORT
TIMER
ON
CANCEL
OFF

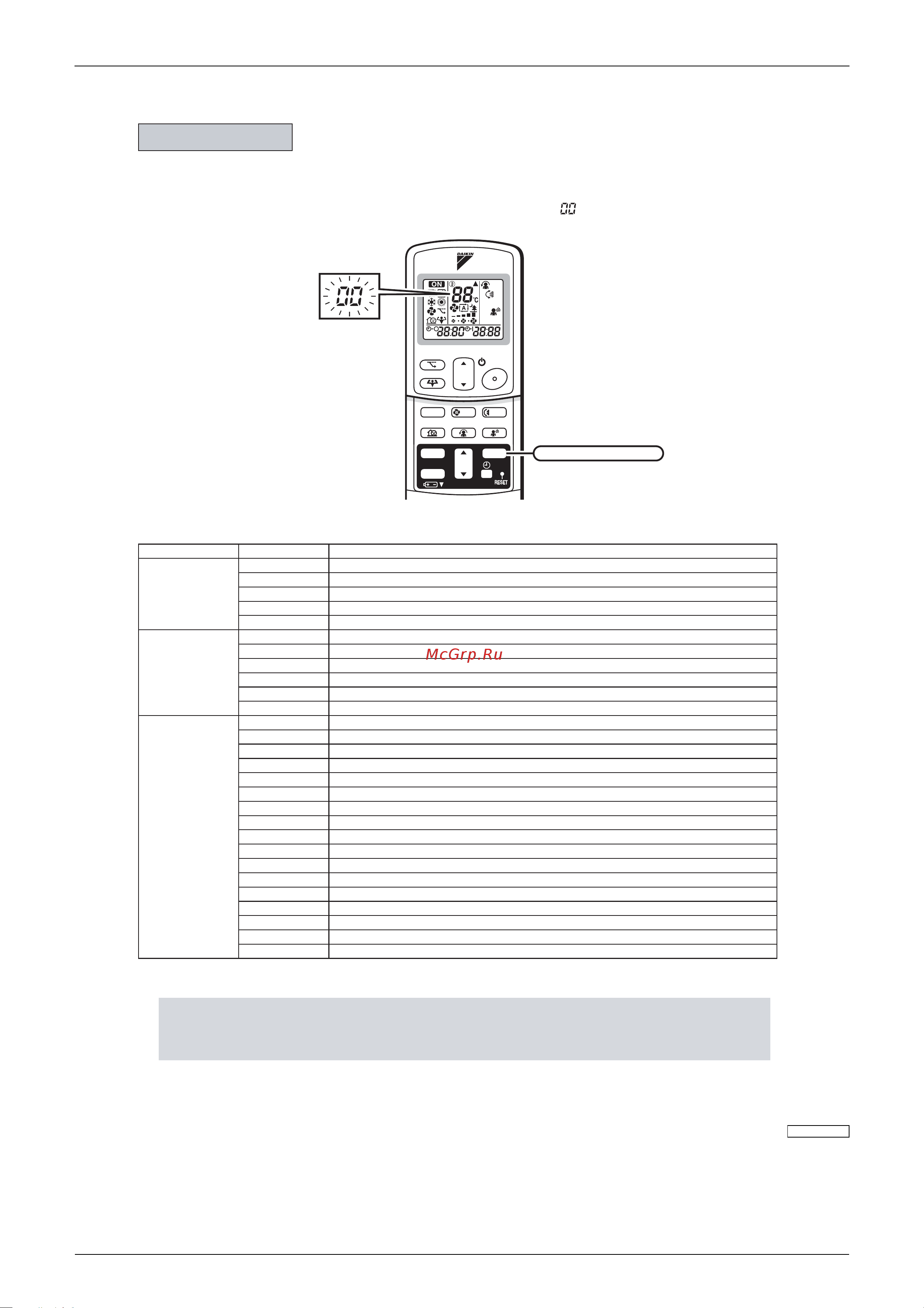

Fault diagnosis.
FAULT DIAGNOSIS BY REMOTE CONTROLLER
In the ARC433A series, the temperature display sections on the main unit indicate corresponding codes.
1.
When the TIMER CANCEL button is held down for 5 seconds, a
“ ”
indication flashes on the
temperature display section.
TIMER CANCEL button
It cancels the timer setting.
2.
Press the TIMER CANCEL button repeatedly until a continuous beep is produced.
• The code indication changesasshown below, and notifies with a long beep.
SYSTEM
INDOOR UNIT
OUTDOOR
UNIT
CODE
00
UA
U0
U2
U4
A1
A5
A6
C4
C7
C9
EA
E1
E5
E6
E7
F3
F6
H0
H6
H8
H9
J3
J6
L3
L4
L5
P4
MEANING
NORMAL
INDOOR-OUTDOOR UNIT COMBINATION FAULT
REFRIGERANT SHORTAGE
DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR PCB DEFECTIVENESS
HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
FAN MOTOR FAULT
FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
FRONT PANEL OPEN/CLOSE FAULT
FAULTY SUCTION AIR TEMPERATURE SENSOR
COOLING-HEATING SWITCHING ERROR
CIRCUIT BOARD FAULT
OL STARTED
FAULTY COMPRESSOR STA RT U P
DC FAN MOTOR FAULT
HIGH TEMPERATURE DISCHARGE PIPE CONTROL
HIGH PRESSURE CONTROL (IN COOLING)
SENSOR FAULT
OPERATION HALT DUE TO FAULTY POSITION DETECTION SEN
SOR
CT ABNORMALITY
FAULTY SUCTION AIR TEMPERATURE SENSOR
FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
ELECTRICAL PARTS HEAT FAULT
HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
OUTPUT OVERCURRENT
FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR
NOTE
1. A short beep and two consecu tive beeps indicate non-corresponding codes.
2. To cancel the code display, hold the TIMER CANCEL button down for 5 seconds. The code display also
cancel itself if the button is not pressed for 1 minute.
3P142629-1
