P.I.T. PEM006-C1 [2/21] General safety precautions

Содержание

• Progressive innovational technology 1
• Прогрессивные инновационные технологии 1
• Рем006 с1 рем006 с2 1
• General safety precautions 2
• Engraving machine 3
• Electric router physical form 4
• Functional capabilities and features of the electric router 4
• Depending on the material and the required shape millers made of different materials are used millers made of high speed steel hss high speed steel are designed to handle soft materials such as wood and plastic carbide tipped millers are particularly suitable for hard materials such as solid wood and aluminum important use only millers with a speed limit of at least the rotation speed of the machine without load the diameter of the millers shank must match the collet chuck diameter 5
• Rules of operation 5
• Sing a vacuum clcanei 5
• Using a vacuum cleaner can reduce the formation of dust on the machine and in the air attach the adapter 19 to the base 7 by screws 18 and attach to the vacuum cleaner remove the parallel guide 23 for a more easy assembly of the adapter clean the adapter regularly to ensure maximum dust removal 5
• Warning unplug the machine before replacing the millers it is strongly recommended to wear protective gloves before replacement press the collet chuck 8 on the spindle by turning the nut 9 lock the spindle with lock 16 insert the miller shank into the chuck the shank must be inserted at least for 20 mm tighten the nut 9 by using the wrench 17 do not tighten the nut 9 on the collet chuck if the miller is not inserted into the chuck 5
• Engraving machine 6
• For larger depth cutting out it is recommended to make several repeated cutting outs with a smaller depth set the depth as described above place the electric router on the workpiece and turn it on release the lock lever 14 and slowly plunge the router until the depth delimiter device 10 will abut the surface lock the lock lever 14 milling with constant speed without jumps after the milling is complete lift the electric router and turn it off 6
• If the direction of movement will be opposite this may result in loss of control over the electric router 6
• The direction of electric router movement should be against to the direction of the millers rotation 6
• Engraving machine 8
• Terms of warranty service 8
• Общие меры безопасности 10
• Progressive innovationaj technology 11
• Назначение 11
• Принцип работы 11
• Расшифровка 11
• Технические характеристики 11
• Торговой марки p i t 11
• Внешний вид фрезера электрического 12
• Функциональные возможности и особенности 12
• Электрического фрезера 12
• Правила эксплуатации 13
• Материал диаметр фрезы значение скорости 14
• Техническое обслуживание 15
• Условия гарантийного обслуживания 16
• Электрическая фрезерная машина 16
• Гарантийное свидетельство на инструмент рп 17
• Дата продажи _ наименование торговой организации 17
• Наименование изделия____________________________________ артикул изделия 17
• Серийный номер 17
• P i t warranty card 18
• T гич 18
• Гарантийным талон р т 19
• Р1т 1 19
• P i t warranty sheet гарантийный талон p i t 20

Похожие устройства

• P.I.T. PEM006-C2 Инструкция Пользователя
• P.I.T. PWC125-C Инструкция Пользователя
• Telefunken TF-MID9707G Руководство по эксплуатации
• Daikin RXN25MV1B Руководство по монтажу
• Daikin RXN35MV1B Руководство по монтажу
• Daikin RXN50MV1B Руководство по монтажу
• Daikin RXN60MV1B Руководство по монтажу
• Daikin RXN25MV1B Сервис мануал
• Daikin RXN35MV1B Сервис мануал
• Daikin RXN50MV1B Сервис мануал
• Daikin RXN60MV1B Сервис мануал
• Daikin RXN25MV1 Сервис мануал
• Daikin RXN25MV1 Руководство по монтажу
• Daikin RXN35MV1 Сервис мануал
• Daikin RXN35MV1 Руководство по монтажу
• Daikin RXN50MV1 Сервис мануал
• Daikin RXN50MV1 Руководство по монтажу
• Daikin RXN60MV1 Сервис мануал
• Daikin RXN60MV1 Руководство по монтажу
• Daikin RK25FXV1 Руководство по монтажу

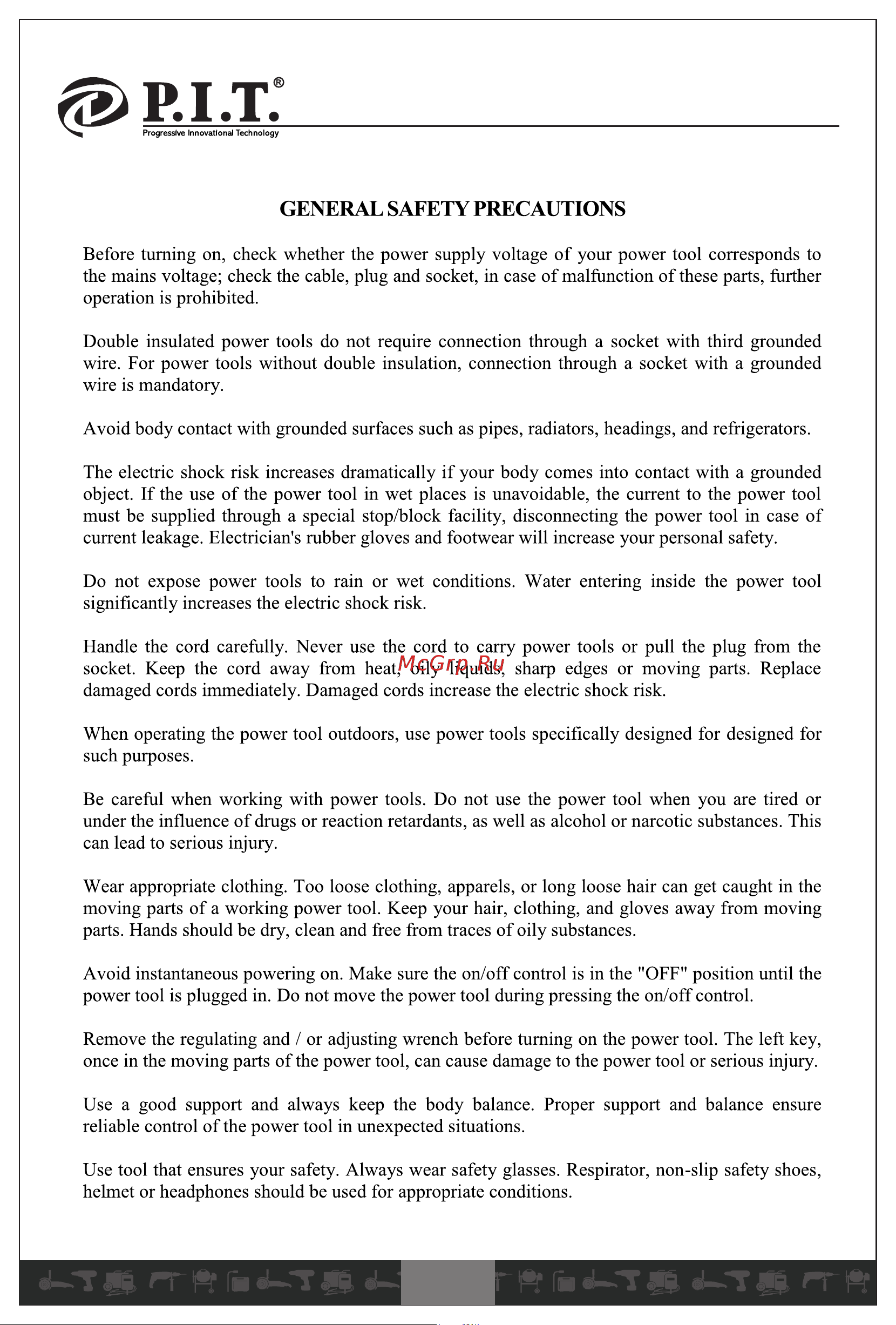

ENGRAVING MACHINE GENERAL SAFETY PRECAUTIONS Before turning on check whether the power supply voltage of your power tool corresponds to the mains voltage check the cable plug and socket in case of malfunction of these parts further operation is prohibited Double insulated power tools do not require connection through a socket with third grounded wire For power tools without double insulation connection through a socket with a grounded wire is mandatory Avoid body contact with grounded surfaces such as pipes radiators headings and refrigerators The electric shock risk increases dramatically if your body comes into contact with a grounded object If the use of the power tool in wet places is unavoidable the current to the power tool must be supplied through a special stop block facility disconnecting the power tool in case of current leakage Electrician s rubber gloves and footwear will increase your personal safety Do not expose power tools to rain or wet conditions Water entering inside the power tool significantly increases the electric shock risk Handle the cord carefully Never use the cord to carry power tools or pull the plug from the socket Keep the cord away from heat oily liquids sharp edges or moving parts Replace damaged cords immediately Damaged cords increase the electric shock risk When operating the power tool outdoors use power tools specifically designed for designed for such purposes Be careful when working with power tools Do not use the power tool when you are tired or under the influence of drugs or reaction retardants as well as alcohol or narcotic substances This can lead to serious injury Wear appropriate clothing Too loose clothing apparels or long loose hair can get caught in the moving parts of a working power tool Keep your hair clothing and gloves away from moving parts Hands should be dry clean and free from traces of oily substances Avoid instantaneous powering on Make sure the on off control is in the OFF position until the power tool is plugged in Do not move the power tool during pressing the on off control Remove the regulating and or adjusting wrench before turning on the power tool The left key once in the moving parts of the power tool can cause damage to the power tool or serious injury Use a good support and always keep the body balance Proper support and balance ensure reliable control of the power tool in unexpected situations Use tool that ensures your safety Always wear safety glasses Respirator non slip safety shoes helmet or headphones should be used for appropriate conditions 1
