P.I.T. PEM006-C2 [3/21] Engraving machine

Содержание

• Progressive innovational technology 1
• Прогрессивные инновационные технологии 1
• Рем006 с1 рем006 с2 1
• General safety precautions 2
• Engraving machine 3
• Electric router physical form 4
• Functional capabilities and features of the electric router 4
• Depending on the material and the required shape millers made of different materials are used millers made of high speed steel hss high speed steel are designed to handle soft materials such as wood and plastic carbide tipped millers are particularly suitable for hard materials such as solid wood and aluminum important use only millers with a speed limit of at least the rotation speed of the machine without load the diameter of the millers shank must match the collet chuck diameter 5
• Rules of operation 5
• Sing a vacuum clcanei 5
• Using a vacuum cleaner can reduce the formation of dust on the machine and in the air attach the adapter 19 to the base 7 by screws 18 and attach to the vacuum cleaner remove the parallel guide 23 for a more easy assembly of the adapter clean the adapter regularly to ensure maximum dust removal 5
• Warning unplug the machine before replacing the millers it is strongly recommended to wear protective gloves before replacement press the collet chuck 8 on the spindle by turning the nut 9 lock the spindle with lock 16 insert the miller shank into the chuck the shank must be inserted at least for 20 mm tighten the nut 9 by using the wrench 17 do not tighten the nut 9 on the collet chuck if the miller is not inserted into the chuck 5
• Engraving machine 6
• For larger depth cutting out it is recommended to make several repeated cutting outs with a smaller depth set the depth as described above place the electric router on the workpiece and turn it on release the lock lever 14 and slowly plunge the router until the depth delimiter device 10 will abut the surface lock the lock lever 14 milling with constant speed without jumps after the milling is complete lift the electric router and turn it off 6
• If the direction of movement will be opposite this may result in loss of control over the electric router 6
• The direction of electric router movement should be against to the direction of the millers rotation 6
• Engraving machine 8
• Terms of warranty service 8
• Общие меры безопасности 10
• Progressive innovationaj technology 11
• Назначение 11
• Принцип работы 11
• Расшифровка 11
• Технические характеристики 11
• Торговой марки p i t 11
• Внешний вид фрезера электрического 12
• Функциональные возможности и особенности 12
• Электрического фрезера 12
• Правила эксплуатации 13
• Материал диаметр фрезы значение скорости 14
• Техническое обслуживание 15
• Условия гарантийного обслуживания 16
• Электрическая фрезерная машина 16
• Гарантийное свидетельство на инструмент рп 17
• Дата продажи _ наименование торговой организации 17
• Наименование изделия____________________________________ артикул изделия 17
• Серийный номер 17
• P i t warranty card 18
• T гич 18
• Гарантийным талон р т 19
• Р1т 1 19
• P i t warranty sheet гарантийный талон p i t 20

Похожие устройства

• P.I.T. PWC125-C Инструкция Пользователя
• Telefunken TF-MID9707G Руководство по эксплуатации
• Daikin RXN25MV1B Руководство по монтажу
• Daikin RXN35MV1B Руководство по монтажу
• Daikin RXN50MV1B Руководство по монтажу
• Daikin RXN60MV1B Руководство по монтажу
• Daikin RXN25MV1B Сервис мануал
• Daikin RXN35MV1B Сервис мануал
• Daikin RXN50MV1B Сервис мануал
• Daikin RXN60MV1B Сервис мануал
• Daikin RXN25MV1 Сервис мануал
• Daikin RXN25MV1 Руководство по монтажу
• Daikin RXN35MV1 Сервис мануал
• Daikin RXN35MV1 Руководство по монтажу
• Daikin RXN50MV1 Сервис мануал
• Daikin RXN50MV1 Руководство по монтажу
• Daikin RXN60MV1 Сервис мануал
• Daikin RXN60MV1 Руководство по монтажу
• Daikin RK25FXV1 Руководство по монтажу
• Daikin RK35FXV1 Руководство по монтажу

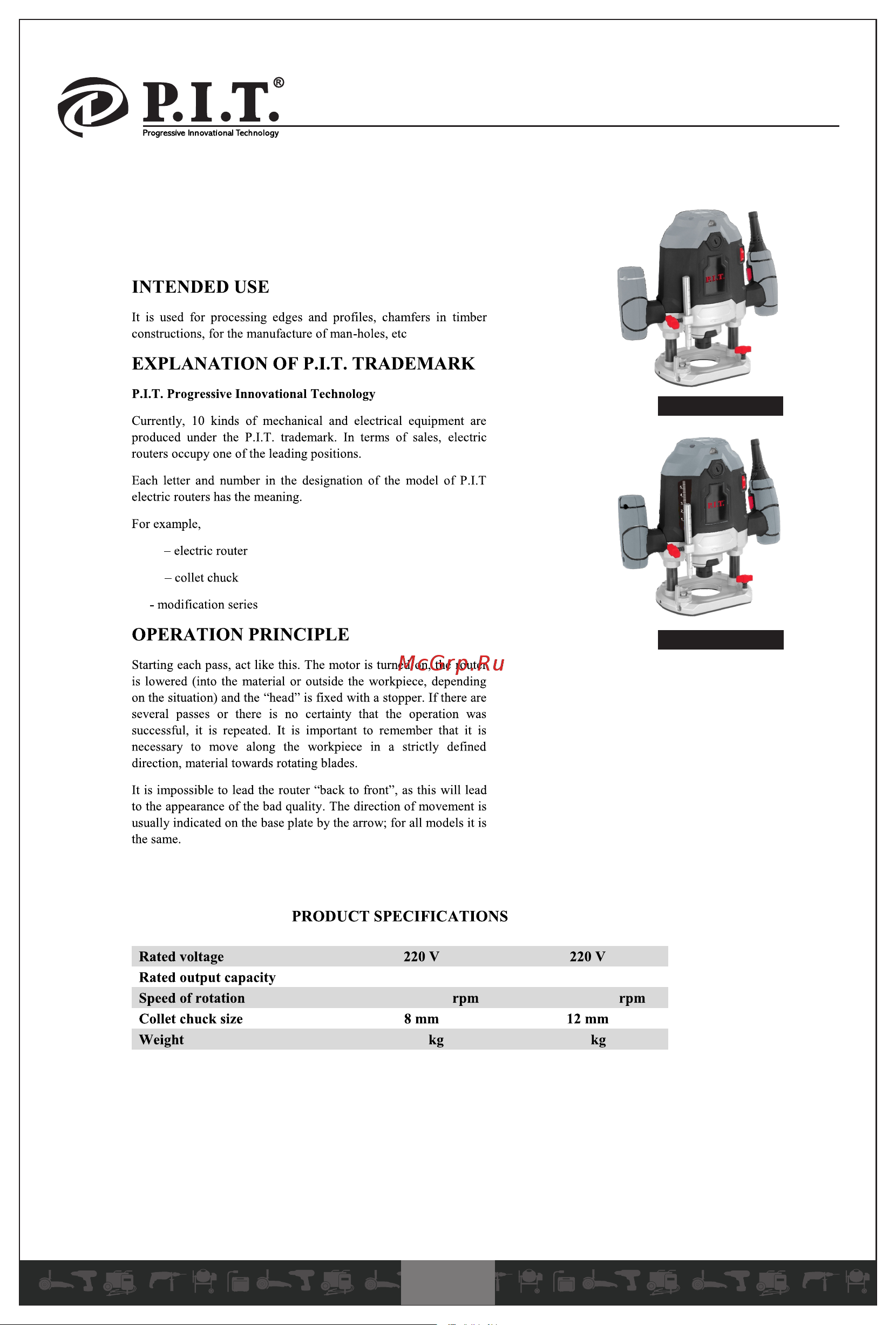

ENGRAVING MACHINE INTENDED USE It is used for processing edges and profiles chamfers in timber constructions for the manufacture of man holes etc EXPLANATION OF P l T TRADEMARK P l T Progressive Innovational Technology Currently 10 kinds of mechanical and electrical equipment are produced under the P l T trademark In terms of sales electric routers occupy one of the leading positions Each letter and number in the designation of the model of P l T electric routers has the meaning For example PE M006 C1 PEM electric router 006 collet chuck Cl modification series OPERATION PRINCIPLE Starting each pass act like this The motor is turned on the router is lowered into the material or outside the workpiece depending on the situation and the head is fixed with a stopper If there are several passes or there is no certainty that the operation was successful it is repeated It is important to remember that it is necessary to move along the workpiece in a strictly defined direction material towards rotating blades It is impossible to lead the router back to front as this will lead to the appearance of the bad quality The direction of movement is usually indicated on the base plate by the arrow for all models it is the same PRODUCT SPECIFICATIONS PEM006 C1 Rated voltage Rated output capacity PEM006 C2 220 V 220 V 1200W 1500W Speed of rotation 11500 3400II rpm Collet chuck size 8 mm 12 mm Weight 4 5 kg 5 5kg 2 12000 26000rpm
