Akuvox С317S 10" [2/4] Step 2 device moun ng

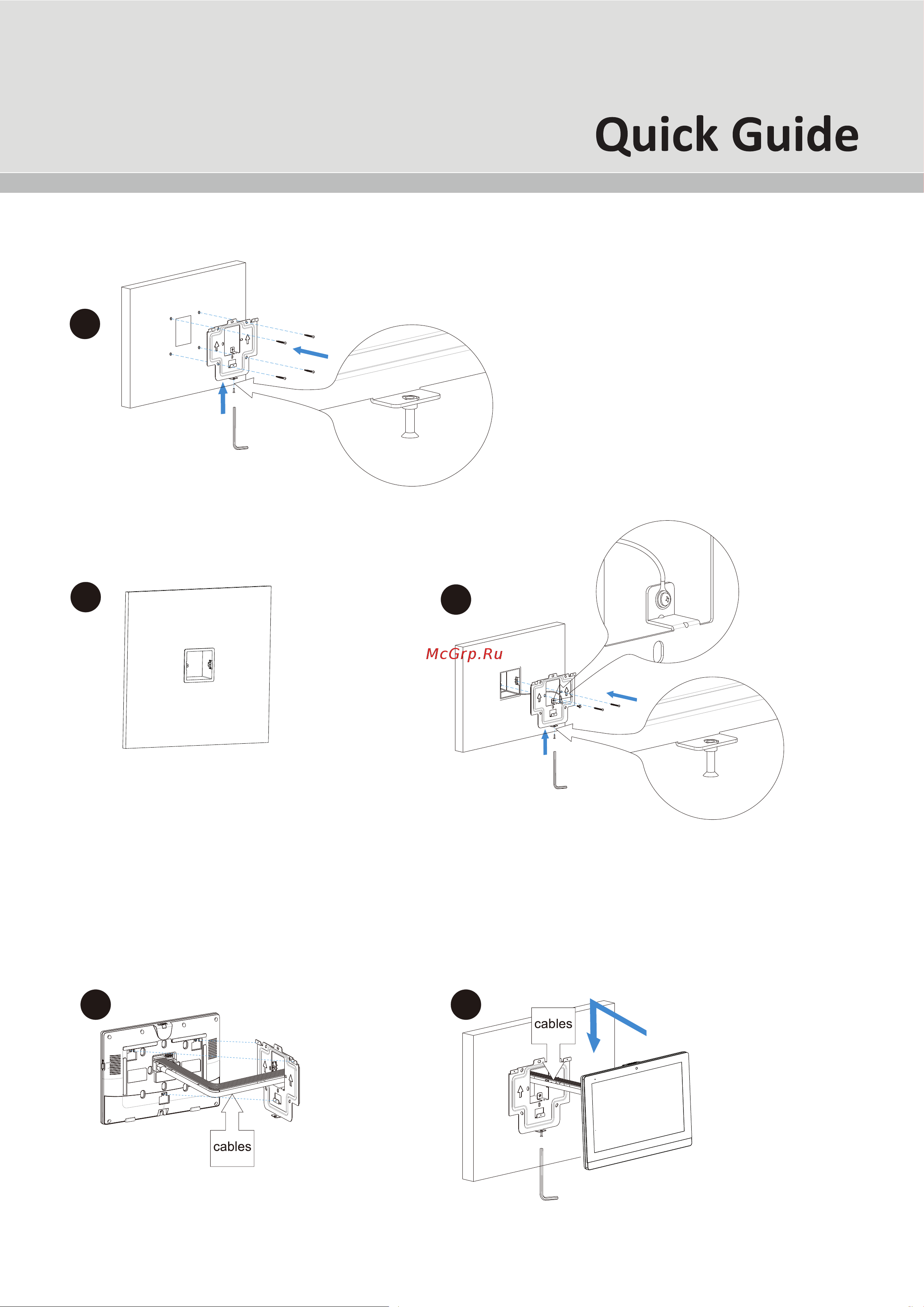

Twist M3x10.5 screw into the bottom hole of the

bracket until the tail of which align to the edge.

Then fix the wall bracket on the wall with four

ST4x20 screws. If there is a earth wire to be

connected, use M3x6 screw to fix it on the wall

bracket.

With embedded box in the wall

Make sure all cables in

the embedded box .

Twist M3x10.5 screw into the bottom hole of the wall bracket until

the tail of which align to the edge. Then fix the wall bracket on the

wall with two/four M4x30 screws. If there is a earth wire to be

connected , use M3x6 screw to fix it on the wall bracket.

Step 2: Device Moun�ng

Connect the

cables to device.

Push down to fix the

device securely. Use the

Allen wrench to tighten

the device with one

M3x10.5 screw.

1 2

C317
