1.2. Connector Introduction
Ethernet(POE): Network Interface(POE) connector which can
provide both power and network connection.
RJ45(PON): Share the network access from Ethernet port, and
for PC and other equipment connection.
12V/GND: External power supply terminal if POE is not available.
RS485+/-: RS485 terminals.
NO/COM: Relay control terminal.
IO1- IO8/GND: Connect with different alarm detectors for 8
security zones.
Note: The general indoor monitor interface diagram is only for
reference.

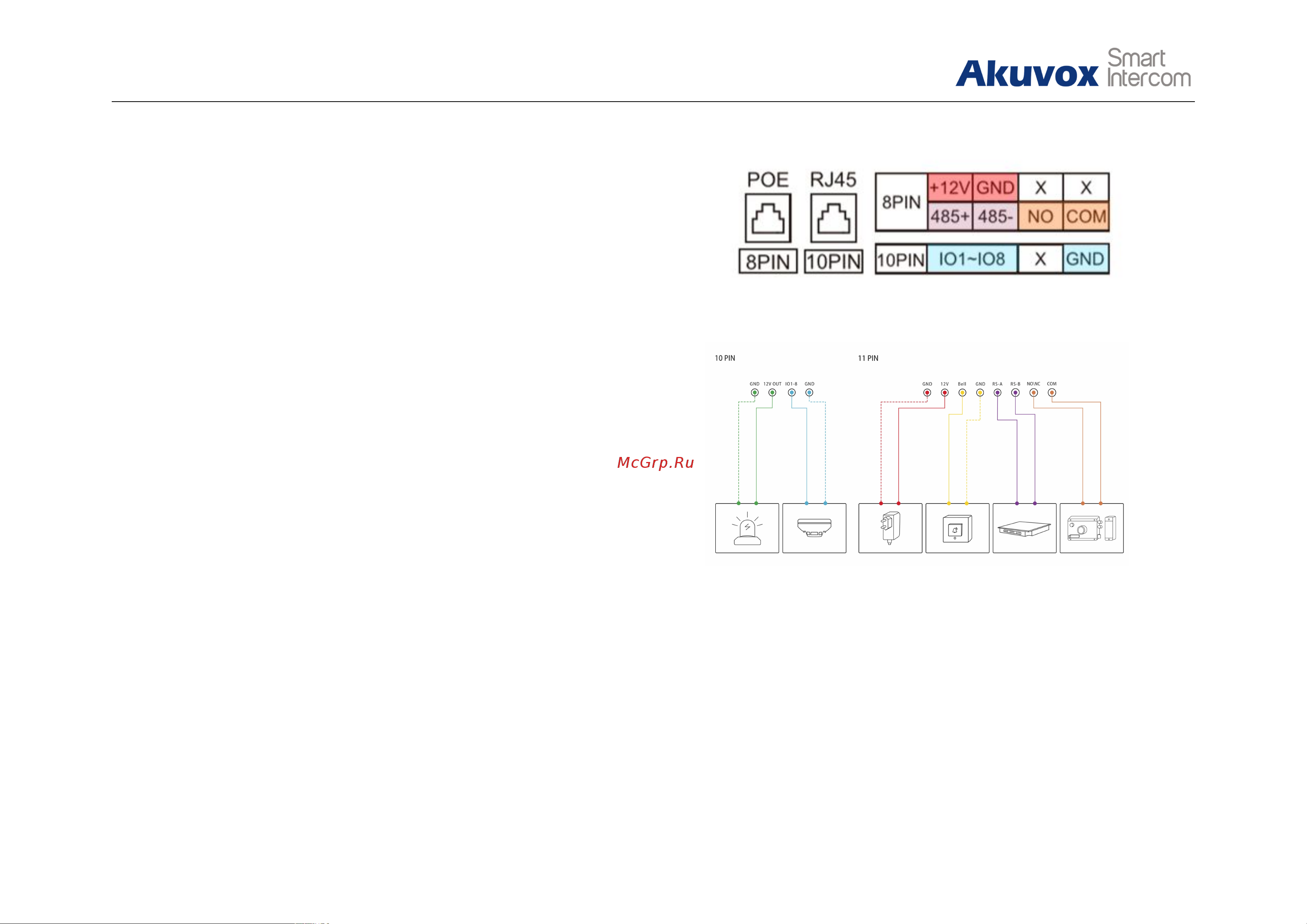

Figure 1.2-2 General interface
Figure 1.2-1 IT82X interface
