Outdoor Unit Si04-306
154 Removal Procedure
2. Outdoor Unit
2.1 Removal of the Panels and Plates
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the panels and
plates.
Take care not to cut your
finger by the fins of the heat
exchanger.

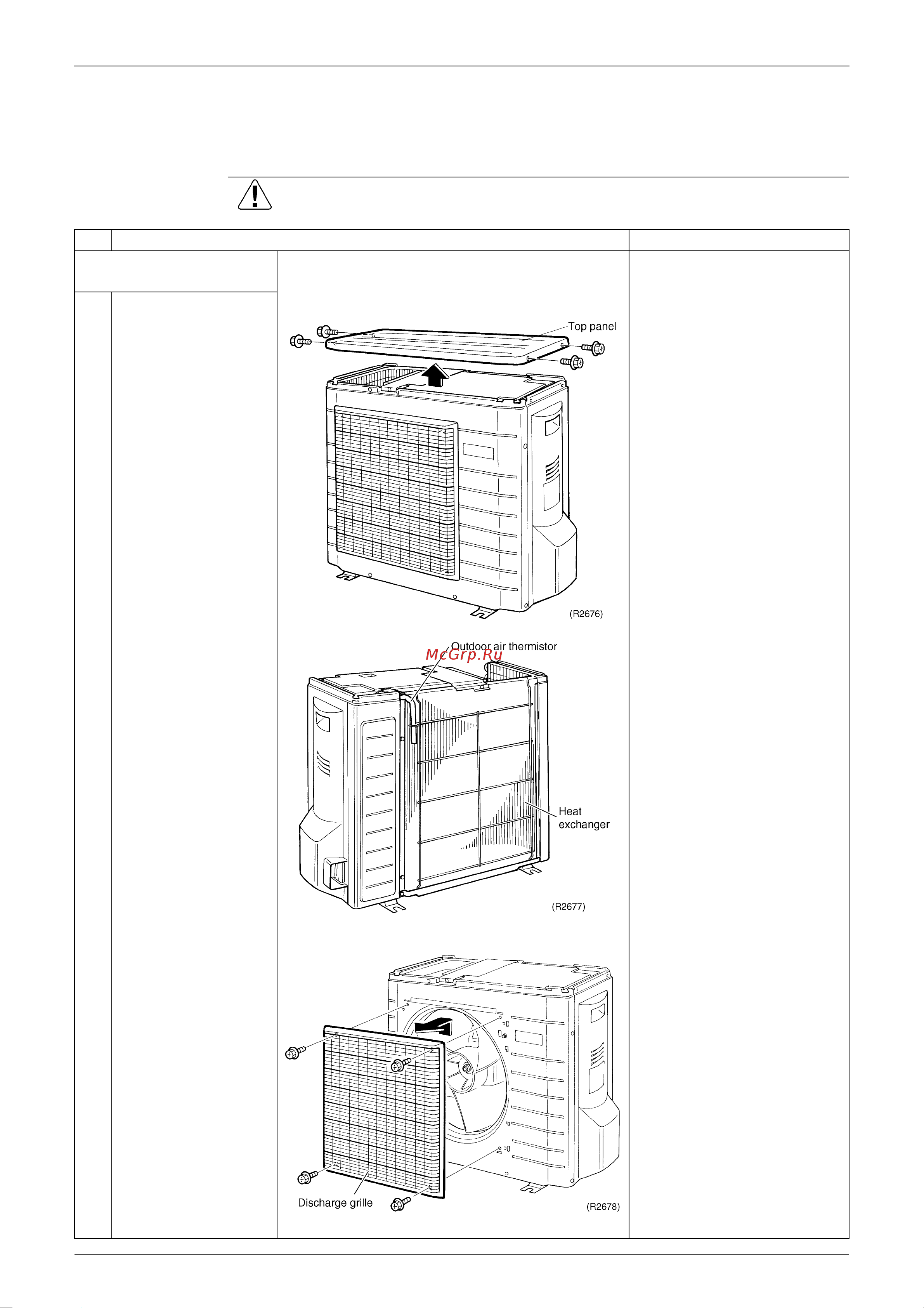

1
Loosen the four screws
and lift the top panel.
2
Loosen the four screws
and remove the
discharge grille.
