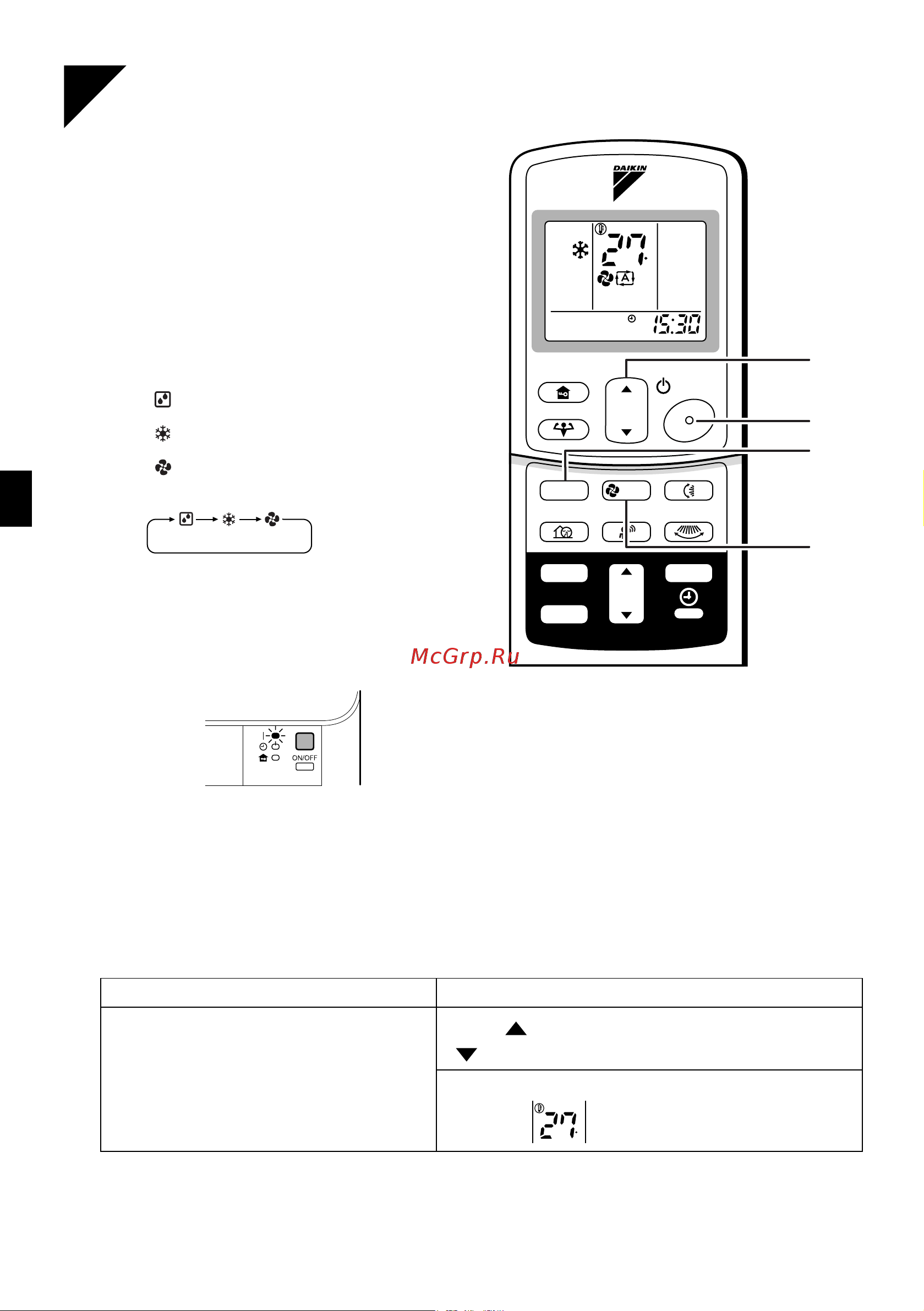

OPERATION
DRY · COOL · FAN Operation
The air conditioner operates with the operation mode of your
choice.
From the next time on, the air conditioner will operate with the
same operation mode.
■
To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:DRY
: COOL
:FAN
2. Press “ON/OFF button”.
• The OPERATION lamp lights up.
■
To stop operation
3. Press “ON/OFF button” again.
•
Then OPERATION lamp goes off.
■
To change the temperature setting
4. Press “TEMPERATURE adjustment button”
DRY or FAN mode COOL mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SILENT
SWING
ON
CANCEL
OFF
SENSOR
2, 3
1
4
5
C
