Daikin FTKD71BVM [79/85] Installation

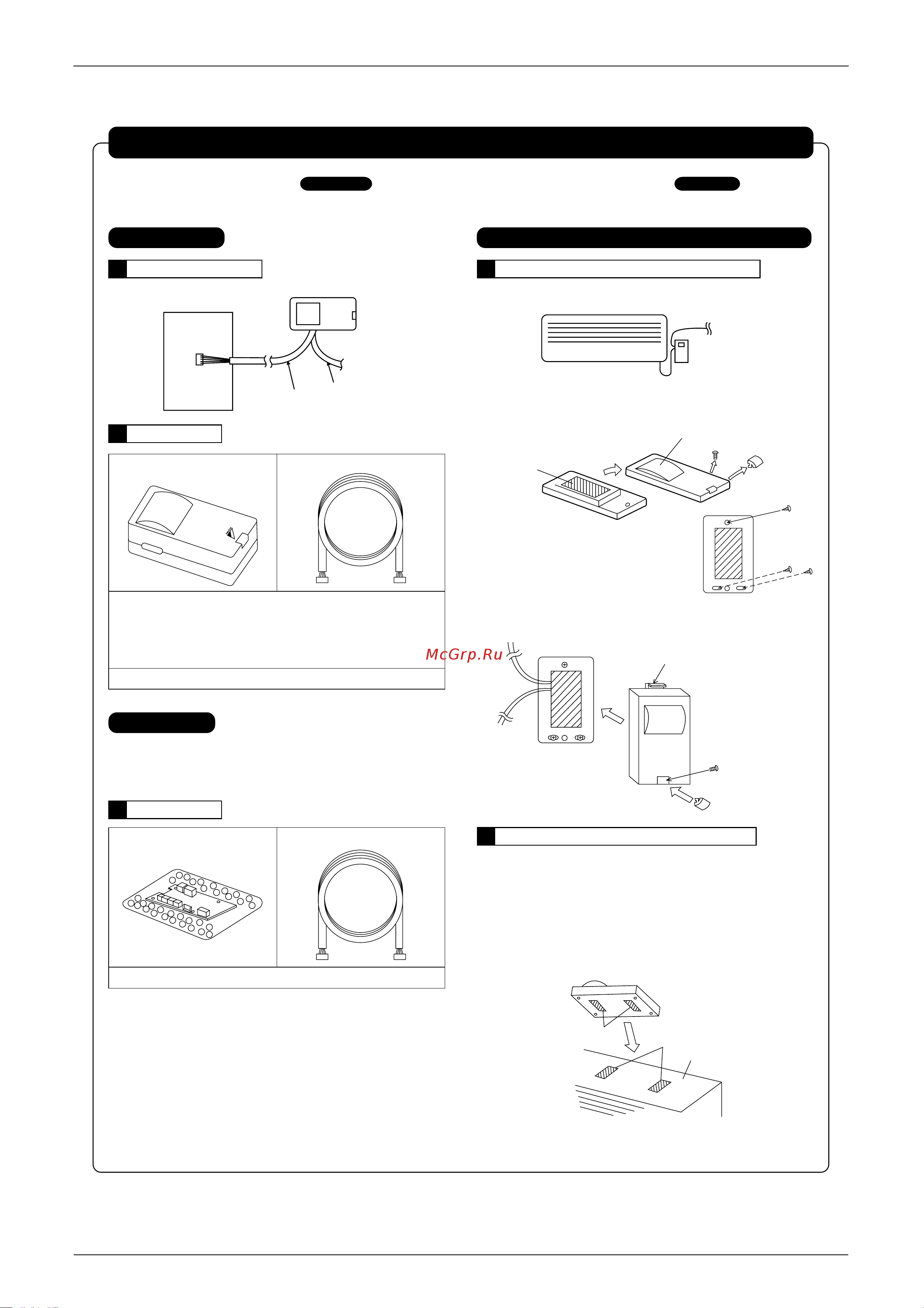

![Daikin FTKD71BVM [79/85] Installation](/views2/1773567/page79/bg4f.png)
2SWLRQDO$FFHVVRULHV ('
5RRP$LU&RQGLWLRQHUV%6HULHV
Installation
This product is available in two types. The KRP413A1S is for installation in a case independent of the indoor unit, and the KRP413A1 is for
installation within the indoor unit.
1. KRP413A1S
1 Installation diagram
Indoor unit PCB
Adaptor case
Relay harness
Local inter-unit
power cord, etc.
S21
2 Components
Adaptor case assy
Relay harness (approx. 0.8 m)
(Adaptor (PCB) is attached in the adaptor case.)
Accessories
• Tie-wrap (4 pcs.)
• Velcro for attaching to the indoor unit (2 sets)
• Screws for attaching the adaptor case (4 pcs.)
• Screws for attaching to the wall (3 pcs.)
Installation manual
2. KRP413A1
For this type, install the adaptor PCB within the indoor unit. The method of
installation and connection vary depending on the model of the air
conditioner. See your air conditioner installation manual for details.
1 Components
Adaptor PCB
Relay harness (approx. 0.25 m)
Installation manual
3. Attaching Adaptor Case Assy (for KRP413A1S)
1 Using the screws (to mount on a wall, etc.)
● Use the 3 supplied screws to attach the case assy .
Indoor unit
Adopter case
Install the adaptor case assy as close to the indoor unit as possible.
Removing case front
Adaptor PCB
Case front
Screw
Screw cover
Remove the screw cover, one of the screws
and then the case front.
Attach the case back to the surface by
tightening the screws through the screw
holes (one round hole, two long holes).
After connecting the cables (refer to the following sections), replace the
case front. Be careful not to damage the harness in the case.
Wiring
Press in so that the prong catches
the case back.
Screw
Screw cover
2 Using Velcro (to attach on the indoor unit)
● Attach the adaptor case with the supplied Velcro.
Remove the case front (as for mounting on a wall).
After connecting the cables (see the following sections), replace the
case front. It can be screwed to the case back from the rear with the
four supplied screws.
Be careful not to damage the harness in the case.
Stick one end of the Velcro to the rear side of the case back, and stick
the other end to the indoor unit with the same space between them.
Velcro male
(female)
Velcro female
(male)
Indoor unit
To prevent the adaptor case assy from falling, do not use the Velcro for
attaching it to a wall or other surface.
