Outdoor Unit / RK(X)S-C, ARK(X)S-C SiENBE04-401A
182 Removal Procedure
4

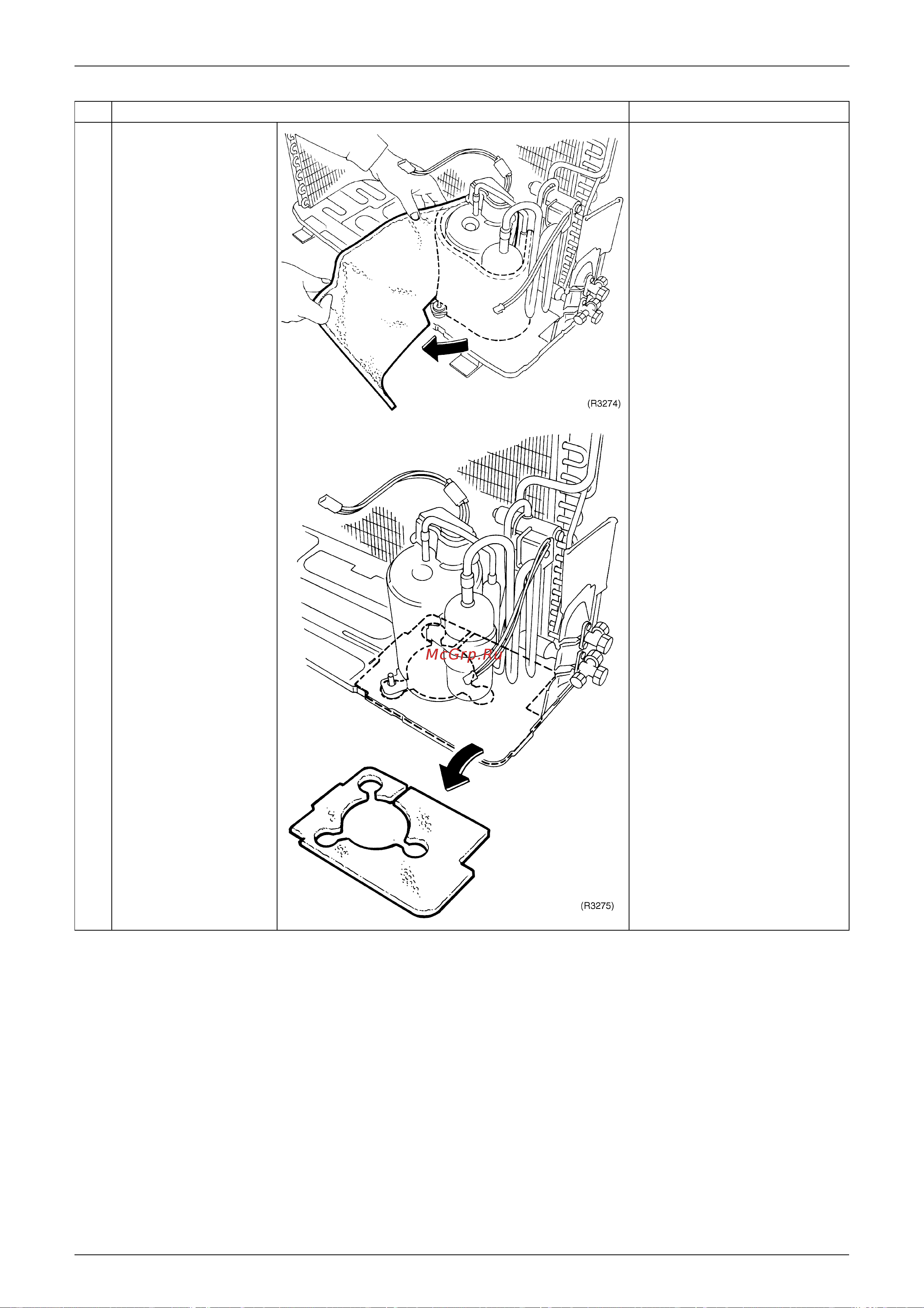

Pull the sound blanket
(inner) out.
Since the piping ports on the
sound blanket are torn
easily, remove the blanket
carefully.
5
Pull the sound blanket
(bottom) out.
Step
Procedure Points
