Field Settings SiBE04-808_C
152 Trial Operation and Field Settings
4.4 Facility Setting Jumper and Switch (cooling at low
outdoor temperature)
Outline This function is limited only for facilities (the target of air conditioning is equipment (such as
computer)). Never use it in a residence or office (the space where there is a human).
20-35 Class You can expand the operation range to –15°C by cutting the jumper on the outdoor unit PCB. If
the outdoor temperature falls to –20°C or lower, the operation stops. If the outdoor temperature
rises, the operation starts again.

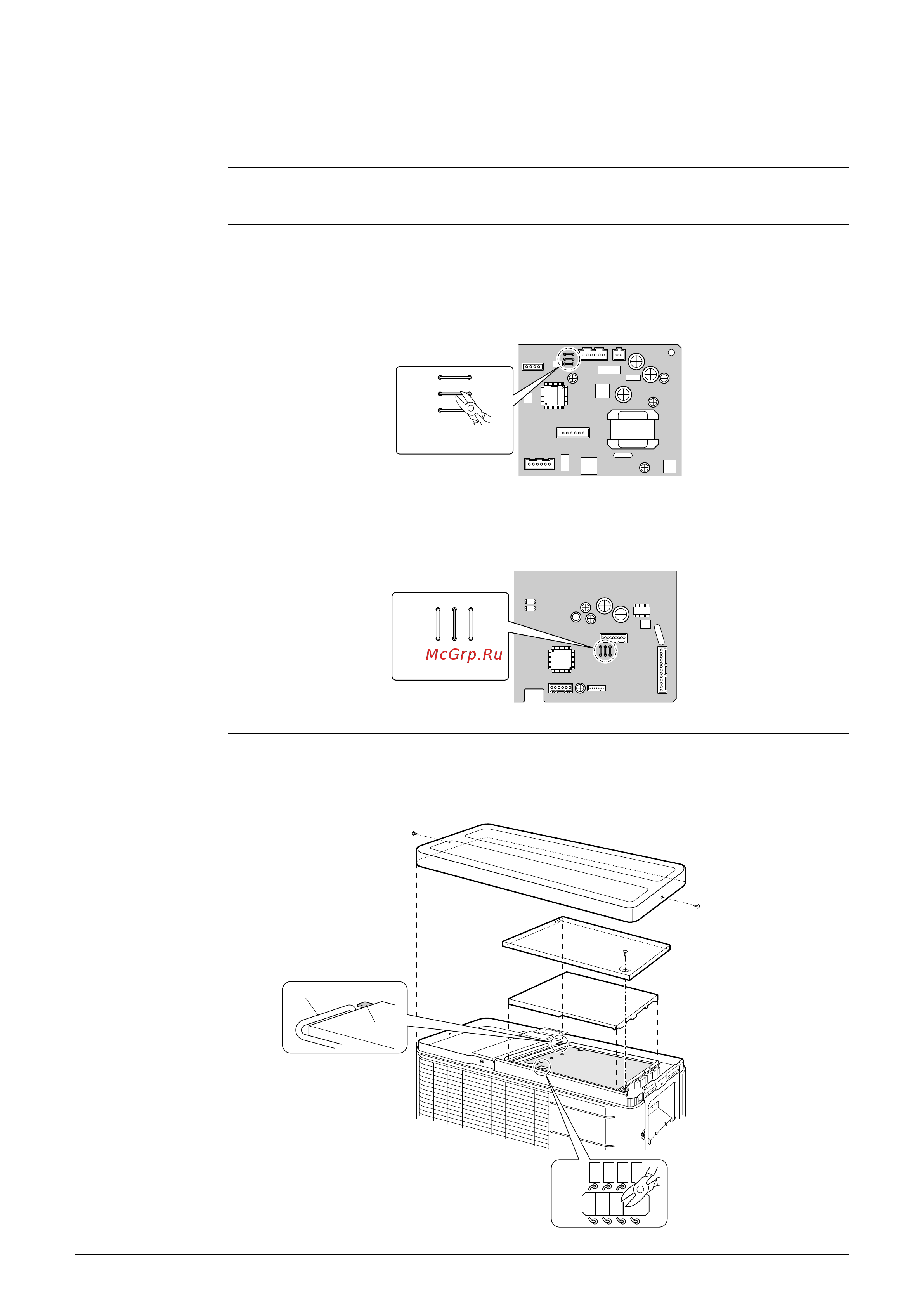

RK(X)S20-35G2V1B, ARXS20-35G2V1B
Main PCB
RK(X)S20-35G2V1B9, ARXS20-35G3V1B, ARXS20-35G4V1B
Main PCB
42 Class
RK(X)S42G2V1B, ARXS42G2V1B, ARXS42G3V1B
You can expand the operation range to –15°C by cutting the jumper on the outdoor unit PCB. If
the outdoor temperature falls to –20°C or lower, the operation stops. If the outdoor temperature
rises, the operation starts again.
S90
PCB
S50
S20
S10
S1
J4
J8
J9
Cut the jumper J8.
(R18374)
S70
S40
S2
S90
J5
J4
J3
(R18253)
Cut the jumper J4.
J3
J4
J5
J7
PCB
Hook
Fan motor lead wire
(R18346)
Remove the
electrical box
cover from the
hook.
Cut the jumper J4.
(You can cut the
jumper with the
PCB mounted.)
