SiBE07-724_B Outdoor Unit - RK(X)S25/35G2V1B9

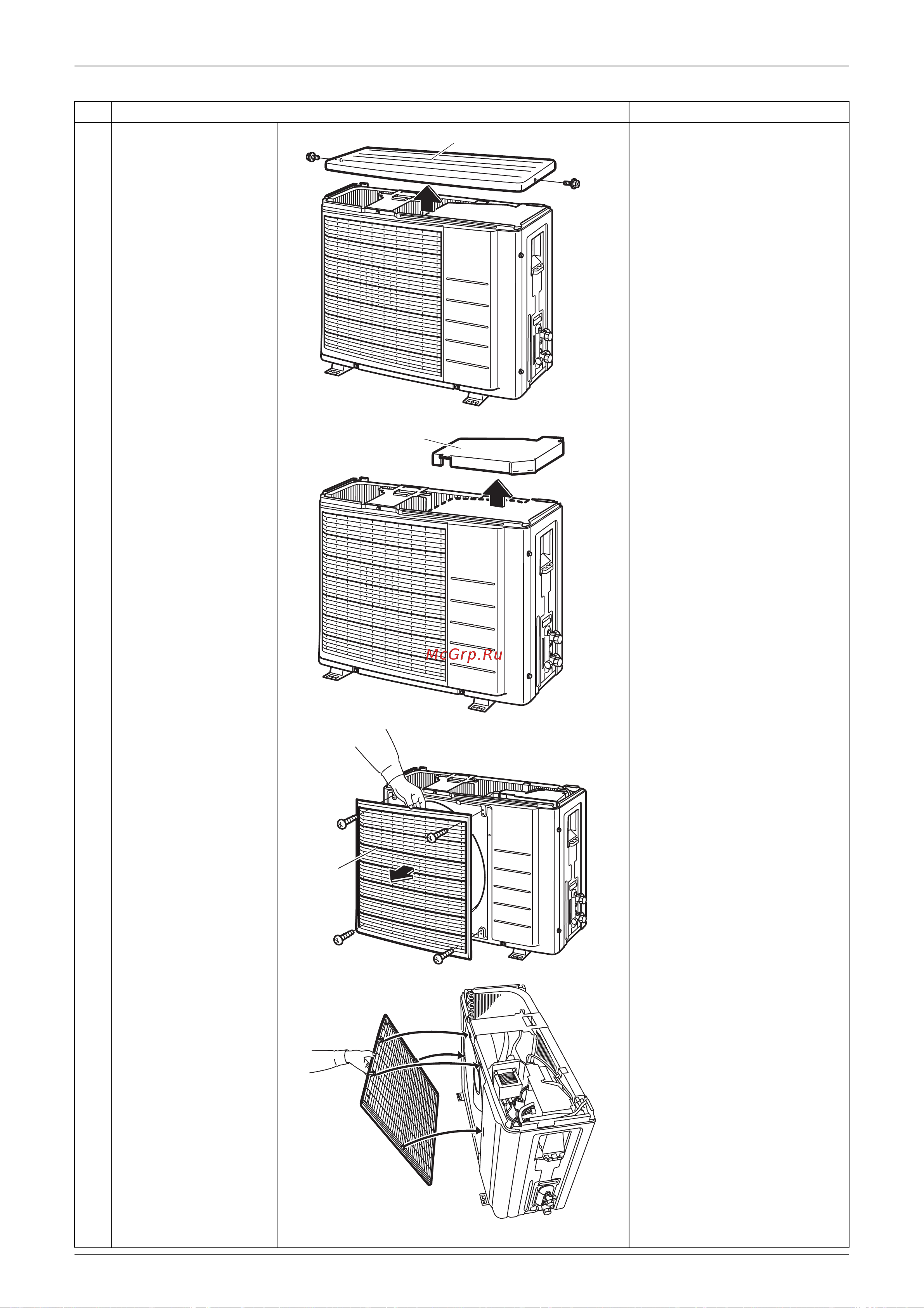

Removal Procedure 169
2
Remove the 2 screws
and lift the top panel.
3
Remove the drip proof
plate.
4
Remove the 4 screws
and remove the
discharge grille.
The discharge grille has 4
hooks.
Step
Procedure Points
DAIKIN
IN
V
ER
T
ER
Top panel
(R7190)
DAIKIN
INVERTER
(R7191)
Drip proof plate
DAIKIN
IN
V
E
R
T
E
R
(R7192)
Discharge
grille
(R7193)
