Daikin RN50E2V1B [108/258] Intelligent eye operation
![Daikin RYN50E2V1B [108/258] Intelligent eye operation](/views2/1776858/page108/bg6c.png)
SiBE04-609 Instruction
System Configuration 99
2.3.8 INTELLIGENT EYE Operation
18
INTELLIGENT EYE Operation

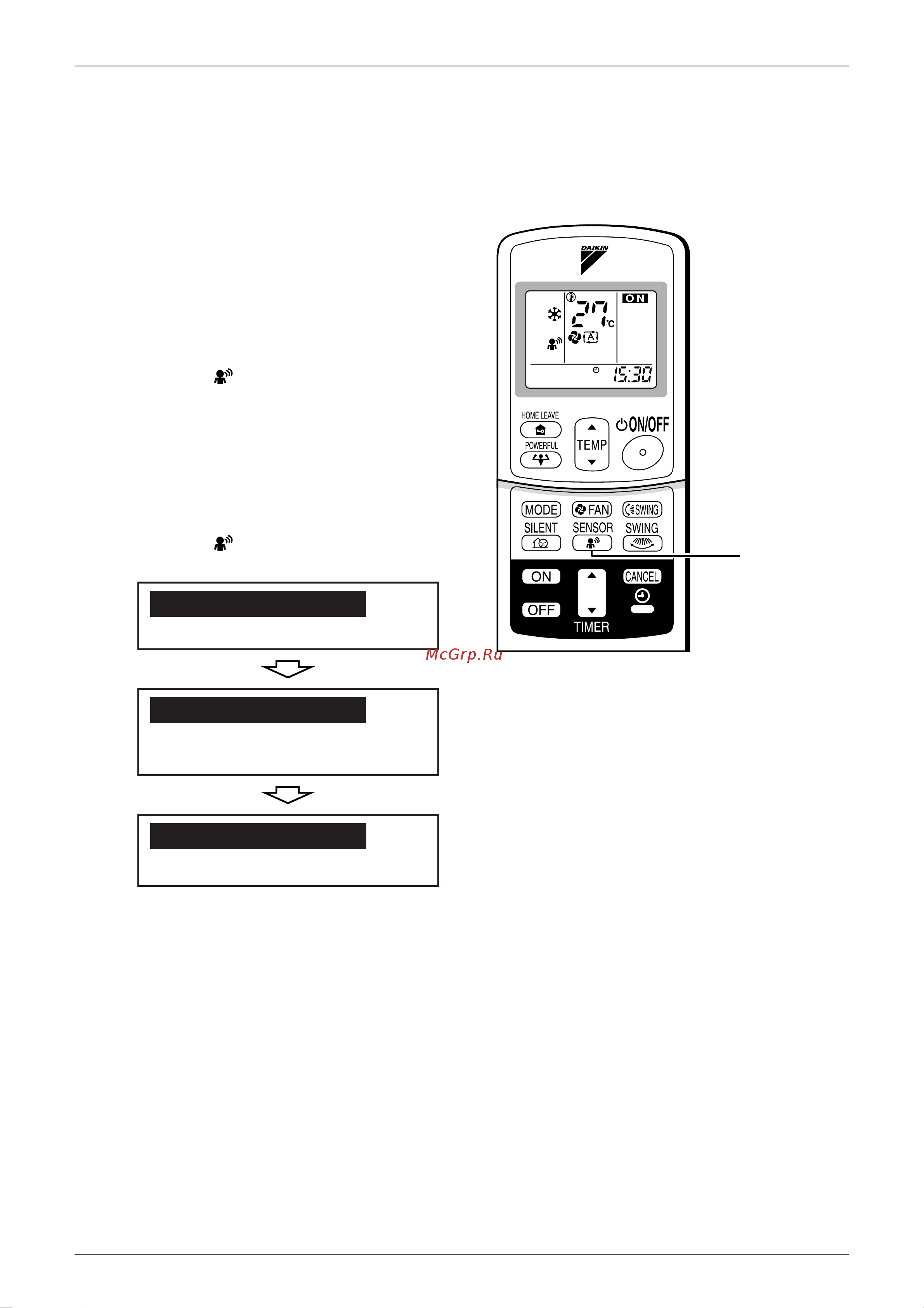

“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT
EYE operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
• “ ” disappears from the LCD.
[EX.]
1, 2
When somebody in the room
• Normal operation
When nobody in the room
•
20 min. after, start
energy saving
operation
.
Somebody back in the room
•
Back to normal operation.
