SiBE04-609 Indoor Unit
Removal Procedure 171
3
4

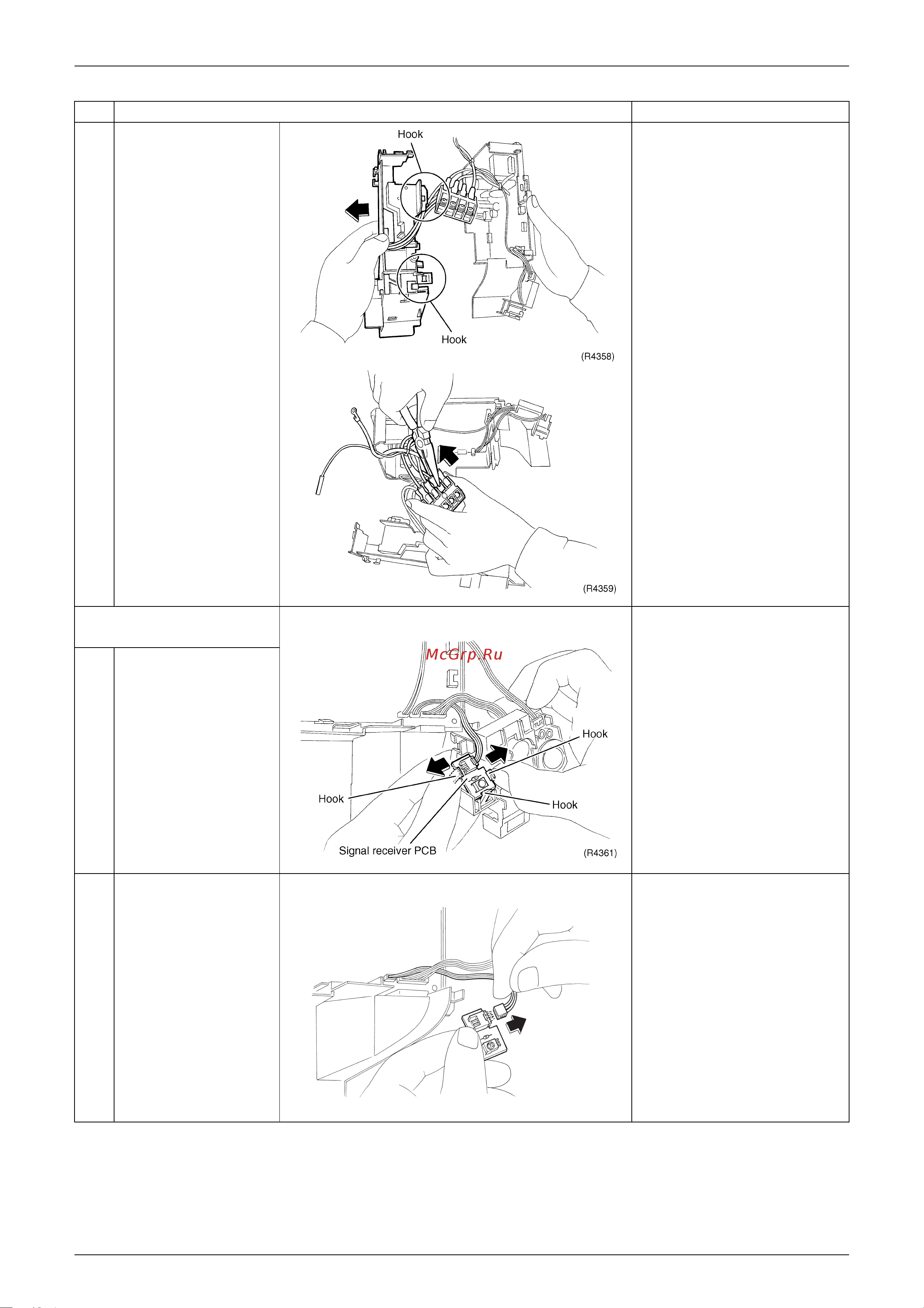

Remove the electrical
box by sliding it to the
left.
Disconnect the wire
harness.
5. Removing the signal
receiver PCB
1
Remove the signal
receiver PCB by
opening the hooks at 3
positions.
2
Disconnect the
connector from the
signal receiver PCB.
Step Procedure Points
(R4362)
