Indoor Unit SiBE04-609

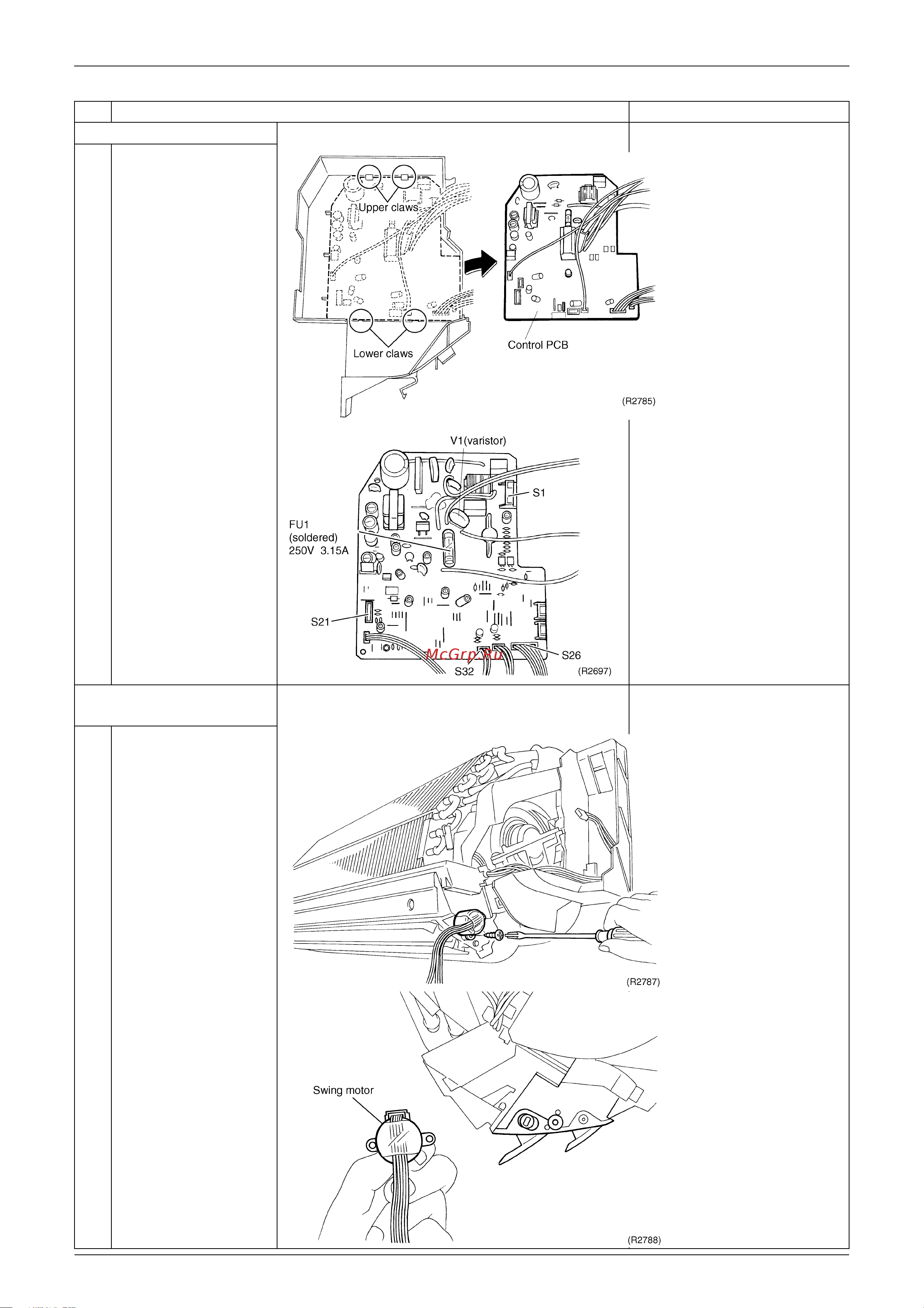

198 Removal Procedure
5. Remove the control PCB.
1
Undo the 2 claws on the
lower side, and then the
2 claws on the upper
side.
Remove the control
PCB.
2
Control PCB (indoor
unit)
S1: connector for the
fan motor
S21: HA
S26: connector for the
room temperature
thermistor
S32: connector for the
heat exchanger
thermistor
6. Remove the swing motor
for horizontal blades.
1
Remove the screw of
the swing motor.
Step
Procedure Points
