SiBE04-609 Outdoor Unit
Removal Procedure 221

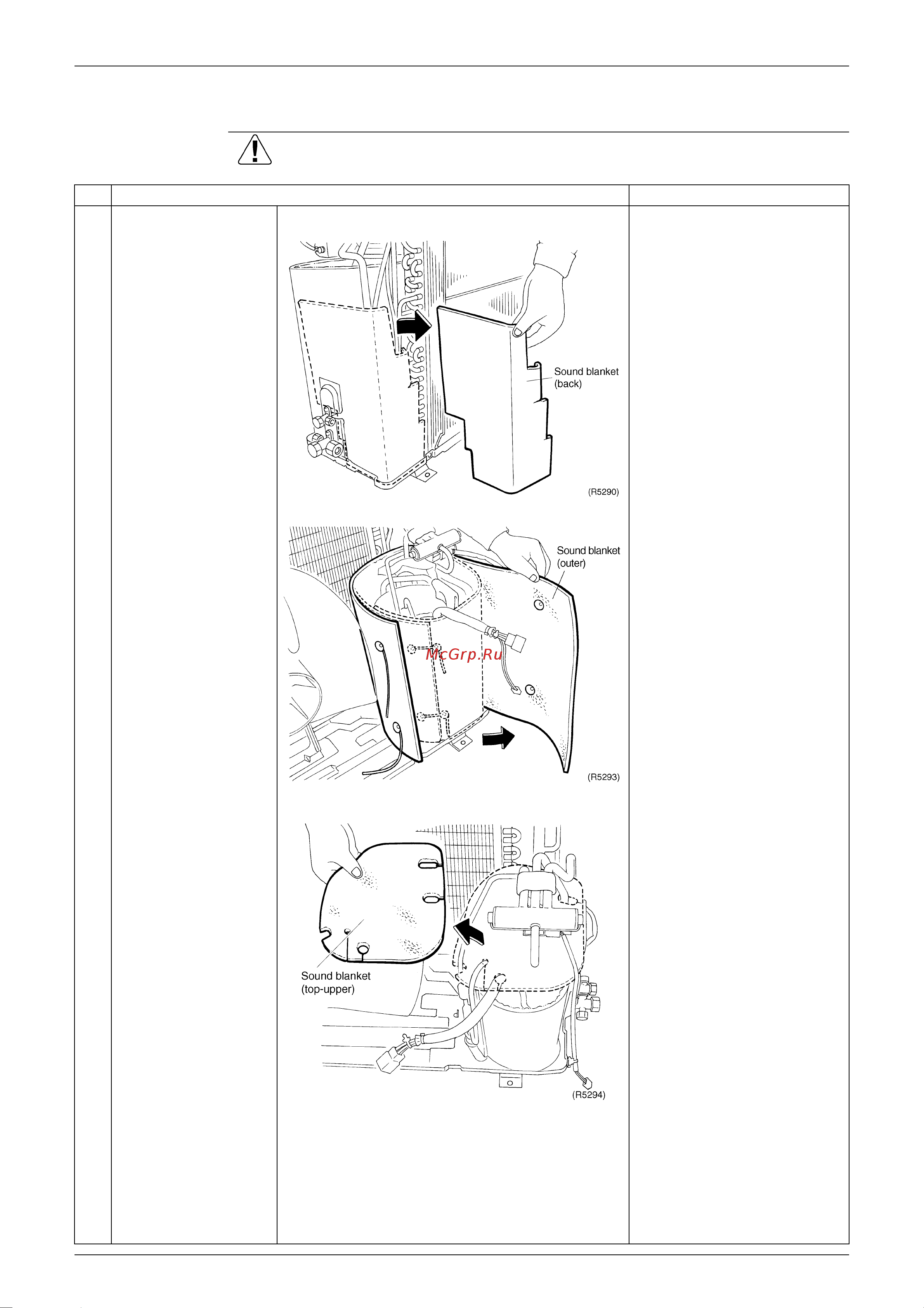

2.1.5 Removal of the Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the sound
blanket (back).
2
Remove the sound
blanket (outer).
Since the piping ports on the
sound blanket (outer) are
torn easily, remove the
blanket carefully.
3
Remove the sound
blanket (top-upper).
