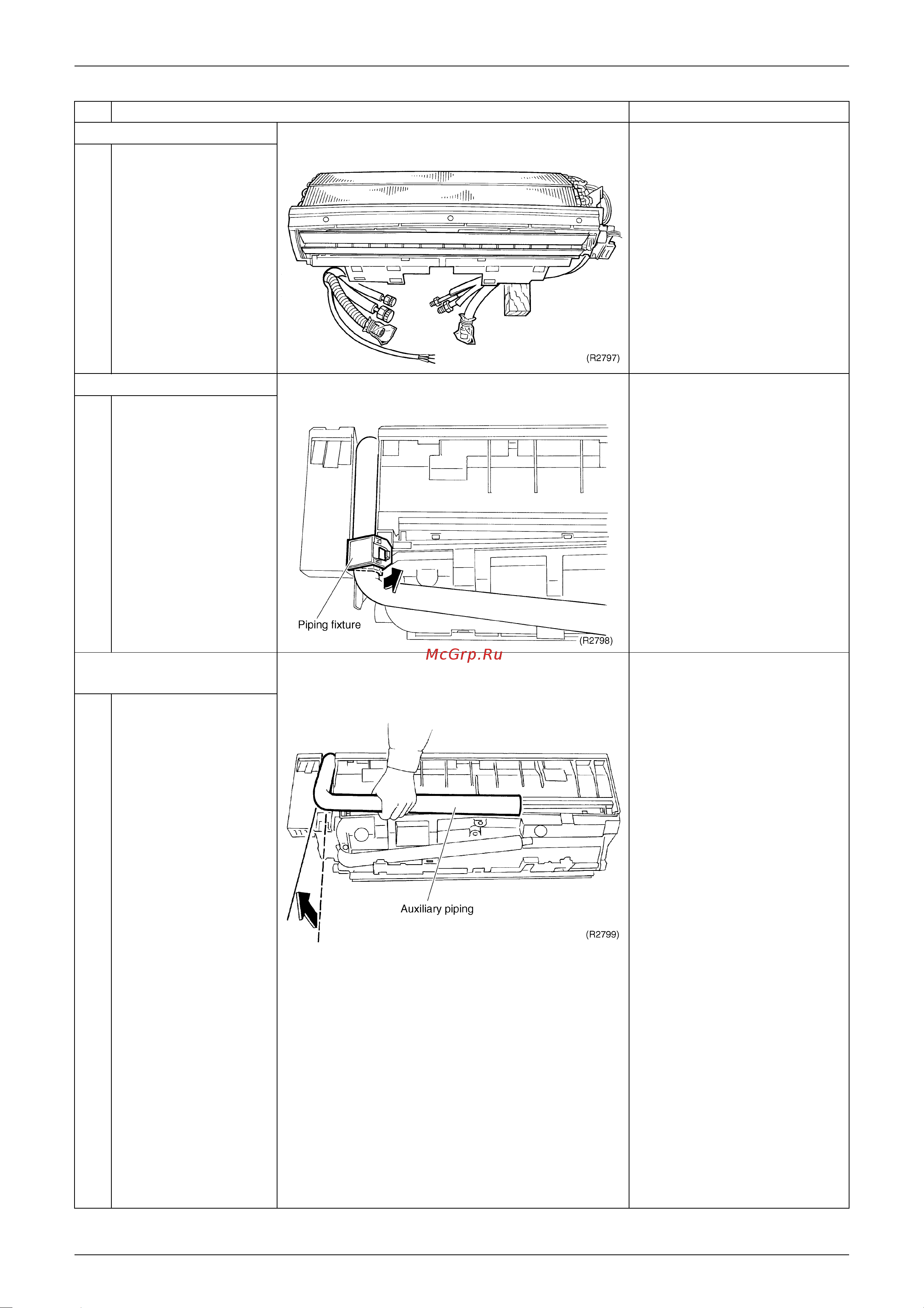

SiBE04-609 Indoor Unit
Removal Procedure 201
2. Remove the indoor unit.
1
Detach the indoor unit
from the installation
plate.
3. Remove the piping fixture.
1
Release the claw on the
upper side of the piping
fixture on the back of
the unit.
4. Remove the heat
exchanger.
1
Widen the auxiliary
piping to the extent of
10°~20°.
At an angle of 10°~20°
Step
Procedure Points
