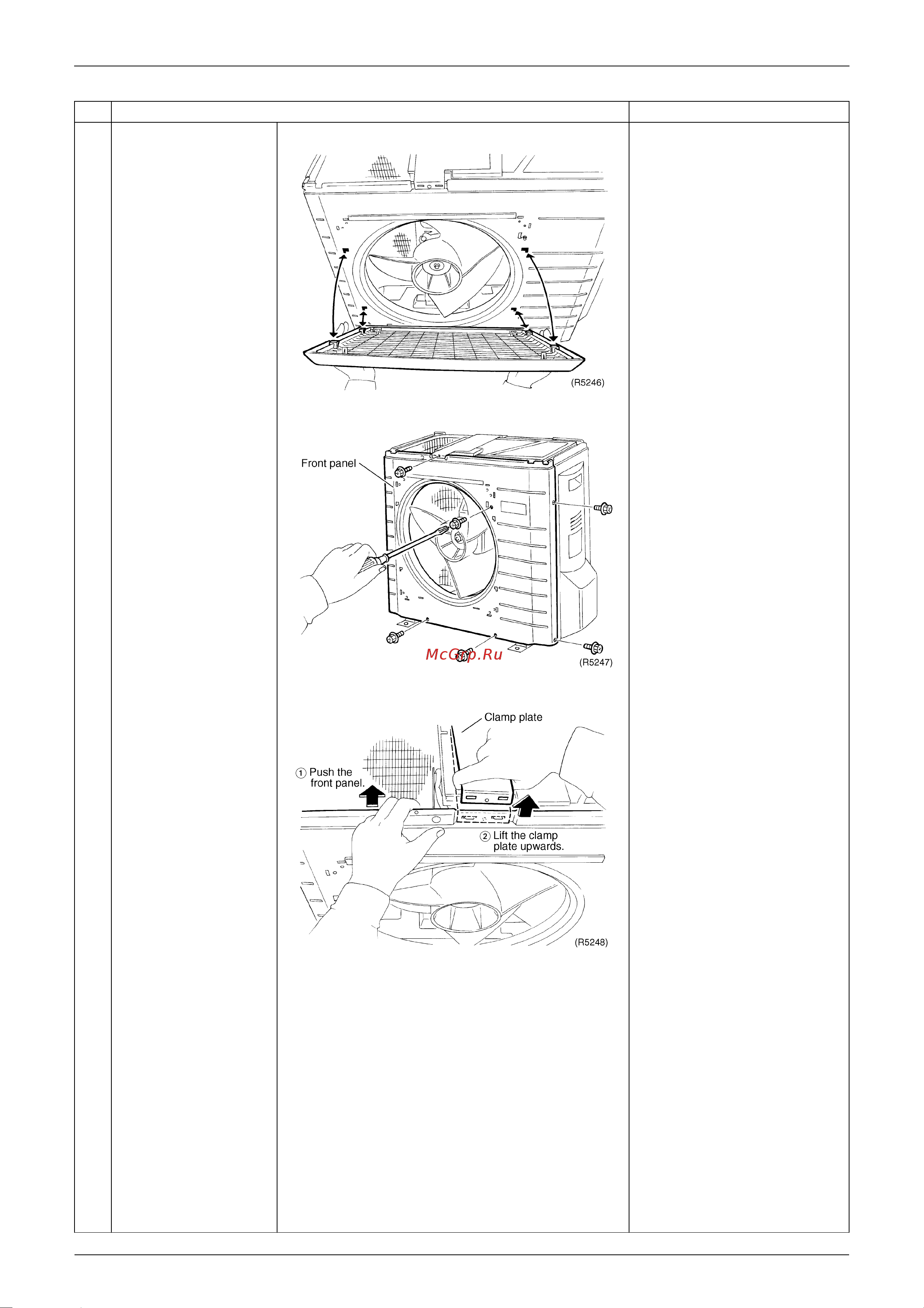

Outdoor Unit SiBE04-609
206 Removal Procedure
The front grille has 4 hooks.
Slide the discharge grille
upwards and remove it.
3
Loosen the 6 screws of
the front panel.
4
Push the front panel
and undo the hooks.
Lift the clamp plate and
remove it.
Step
Procedure Points
