Outdoor Unit SiBE04-609

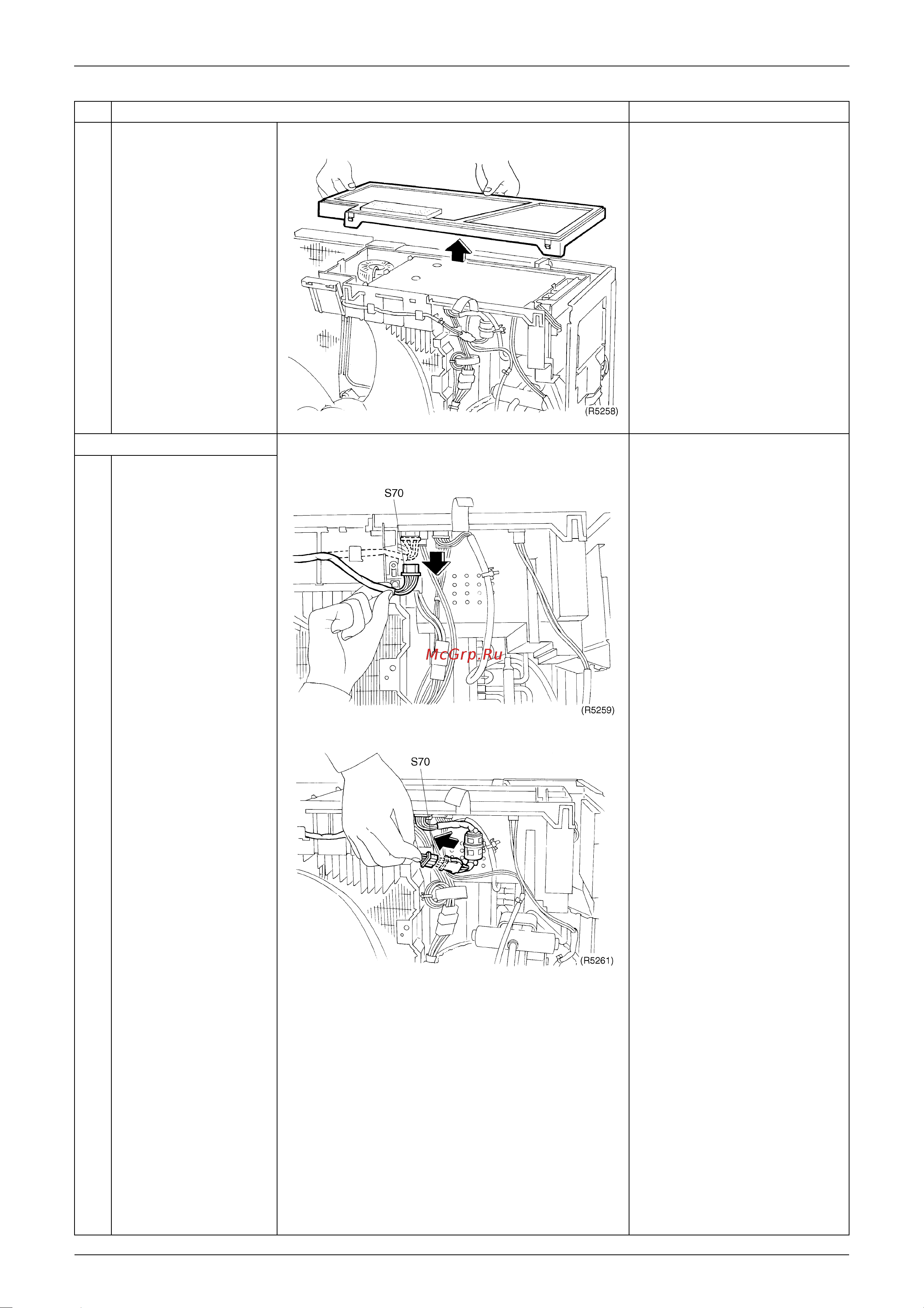

210 Removal Procedure
2. Remove the fan motor.
1
Disconnect the
connector for fan motor
(S70).
In case of 50/60 class.
In case of 71 class.
Step
Procedure Points
