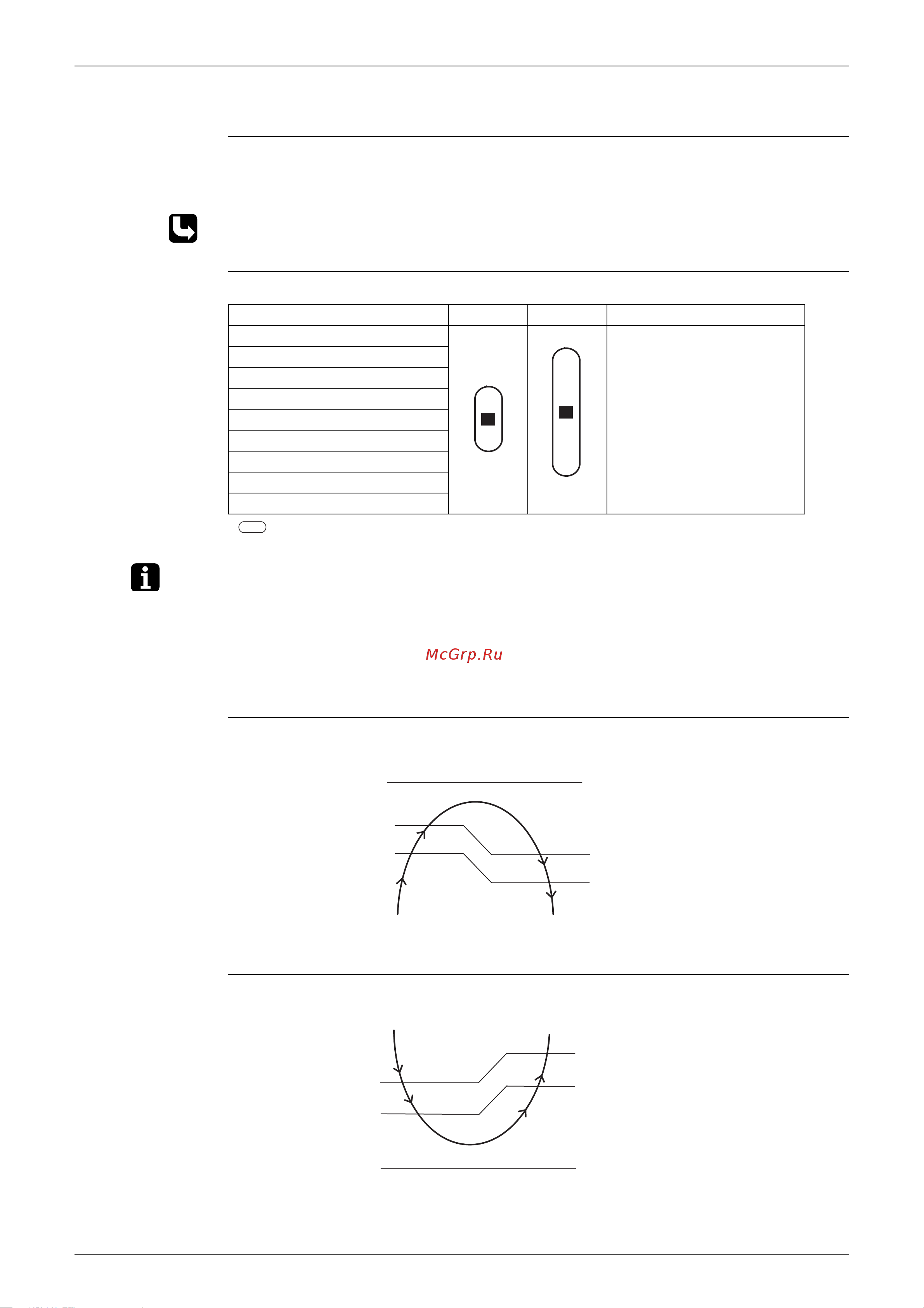

SiBE04-609 Main Functions
Function and Control 29
1.3 Fan Speed Control for Indoor Units
Control Mode The airflow rate can be automatically controlled depending on the difference between the set
temperature and the room temperature. This is done through rotation speed control and Hall IC
control.
For more information about Hall IC, refer to the troubleshooting for fan motor on page 119.
Fan Steps Fan speed control contains 9 steps: LLL, LL, SL, L, ML, M, MH, H and HH.
= Within this range the airflow rate is automatically controlled when the FAN setting
button is set to automatic.
Note: 1. During powerful operation, fan operates H tap + 50 - 90 rpm.
2. Fan stops during defrost operation.
3. In time of thermostat OFF, the fan rotates at the following speed,
Cooling : The fan keeps rotating at the set tap.
Heating : FTK(X)S50D, ATXS50E : The fan rotates at LLL tap.
FTK(X)S50-71E, ATX50E : The fan stops.
Automatic Air
Flow Control for
Heating
The following drawing explains the principle for fan speed control for heating:
Automatic Air
Flow Control for
Cooling
The following drawing explains the principle of fan speed control for cooling:
Step Cooling Heating Dry mode
LLL
FTK(X)S50D, ATXS50E :
980 - 1090 rpm
FTK(X)S50-71E, ATX50E :
800 - 950 rpm
LL
SL (Silent)
L
ML
M
MH
H
HH (Powerful)
(R2818)
(R5225)
-1.5˚C
-0.5˚C
-1˚C
-2˚C
L
ML
M
Thermostat
setting
temperature
Rotation speed control
Difference between room
and set temperature
fan speed
(R5207)
+1.5˚C
+0.5˚C
+2˚C
+1˚C
M
ML
L
fan speed
Difference between room
and set temperature
Rotation speed control
Thermostat
setting
temperature
(R5208)
