SiBE12-314 Instruction (in case of FTK(X)S 25/35 BVMB)
System Configuration 63
6
■

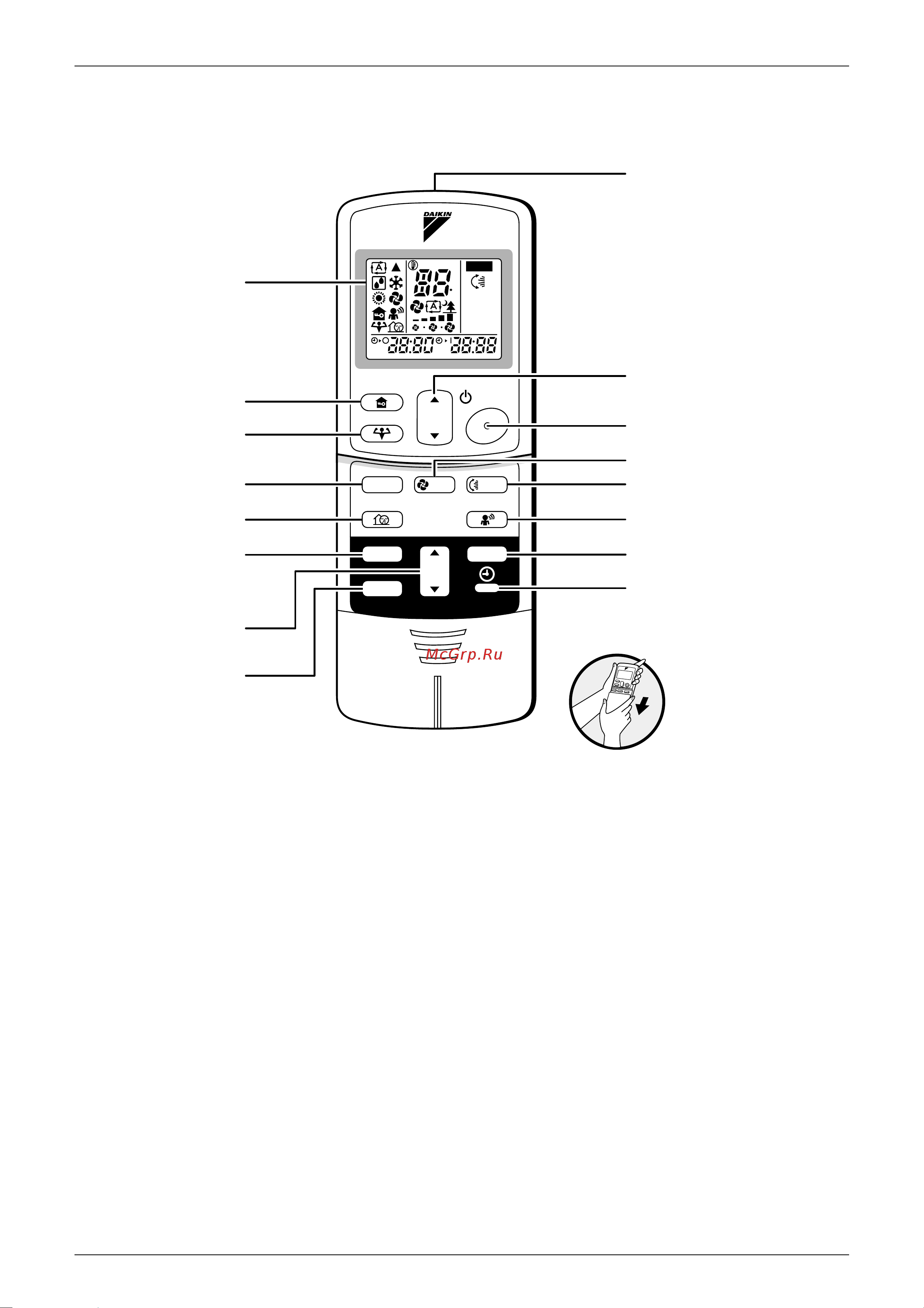

Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation
(page 16.)
4. POWERFUL button:
for POWERFUL operation
(page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. SILENT button:
for OUTDOOR UNIT
SILENT operation
(page 15.)
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button:
(page 12.)
11. SENSOR button:
for INTELLIGENT EYE
operation (page 18.)
12. ON TIMER button:
(page 21.)
13. OFF TIMER button:
(page 20.)
14. TIMER Setting button:
• It changes the time setting.
15. TIMER CANCEL button:
• It cancels the timer setting.
16. CLOCK button:
(page 9.)
C
ON
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SWING
SILENT
SENSOR
ON
CANCEL
OFF
1
2
5
6
9
10
11
15
16
12
14
13
<
ARC433A1, A2
>
3
4
7
8
