Split Sky Air • Indoor Units 4
Indoor Units • R410A FDKS-CVMB

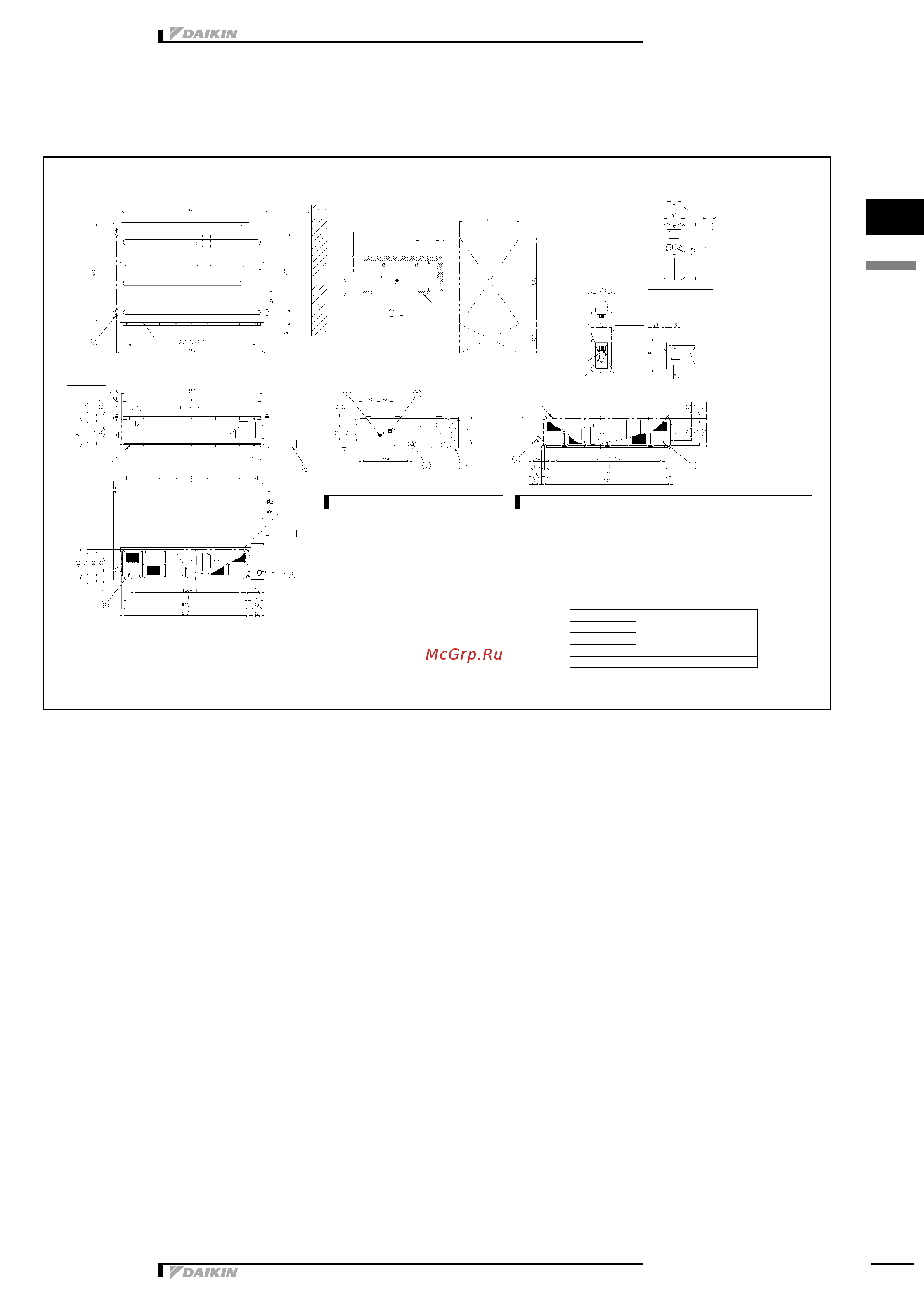

3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing
FDK/XS25,35CVMB
3D045486B
300 or more
(service space)
(suspension bolt pitch)
(suspension bolt pitch)
(all around)
22-ø4.7 hole
Suspension bolt
4-M8~M10
18-M4 holes
(all around)
20-M5 holes
(all around)
< In case of bottom-suction >
< Service space >
Ceiling
240 or more
20 or more
20 or more
400 or more
(in case of
bottom suction)
Allow view A
Inspection door
(ceiling opening)
20-M5 holes
(all around)
Infrared receiver unit
Home leave
lamp
Indoor unit
on/off switch
Timer lamp
Operation lamp
Room temp.
sensor
Signal receiver cord
(length: 1900 mm)
Wireless remote controller
CDXS--CVMB: (ARC433A7)
CDKS--CVMB: (ARC433A8)
FDXS--CVMB: (ARC433A7)
FDKS--CVMB: (ARC433A8)
Signal transmitter
A
LEGEND
1 Liquid pipe connection: ø 6.4 flare
(connection)
2 Gas pipe connection: see note 4.
3 Socket for drain: VP20 (O.D. ø26, I.D. ø20)
4 Drain hose (accessory): I.D. ø25 (outlet)
5 Control box
6 Infrared receiver unit connection
7 Power supply connection
8 Suspension bracket
9 Air filter (accessory)
NOTES
1 In case of back-suction, mount chamber cover to bottom side of the unit. In
case of bottom-suction, mount chamber cover to back side of the unit.
2 Location of unit’s name plate: control box cover.
3 Mount the air filter at the suction side.
(Select its colorimethod (gravity method) 50 % or more)
It can not be equipped with air filter (accessory) when connecting duct to
suction side.
4 Pipe specification
FDX(K)S25
ø 9.5 (flare connection)
CDX(K)S25
FDX(K)S35
CDX(K)S35
CDX(K)S50 ø 12.7 (flare connection)
