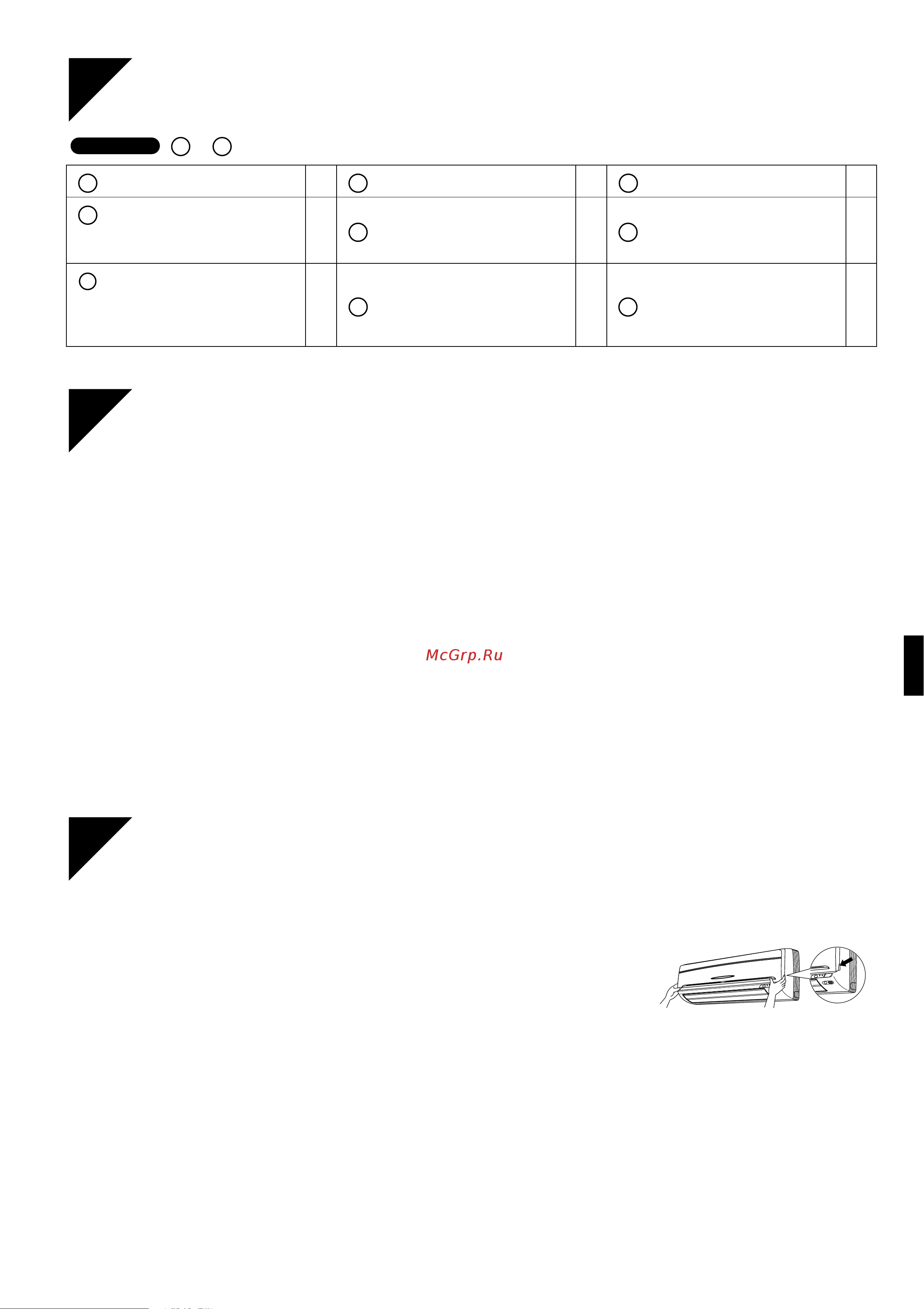

![Daikin ATXS25BVMB [3/14] Indoor unit](/views2/1778712/page3/bg3.png)
■English 2
Accessories
–
Choosing a Site
• Before choosing the installation site, obtain user approval.
1.
Indoor unit.
• The indoor unit should be sited in a place where:
1) the restrictions on installation specified in the indoor unit installation drawings are met,
2) both air intake and exhaust have clear paths met,
3) the unit is not in the path of direct sunlight,
4) the unit is away from the source of heat or steam,
5) there is no source of machine oil vapour (this may shorten indoor unit life),
6) cool air is circulated throughout the room,
7) the unit is away from electronic ignition type fluorescent lamps (inverter or rapid start type) as they may shorten the
remote control range,
8) the unit is at least 1 metre away from any television or radio set (unit may cause interference with the picture or sound).
2.
Wireless remote controller.
1) Turn on all the fluorescent lamps in the room, if any, and find the site where remote control signals are properly received
by the indoor unit (within 7 metres).
Installation Tips
1.
How to remove the front grille.
1) Hold the grille by the tabs on the two sides and lift it until it stops with a click.
2) Supporting the front grille with one hand, release the lock by sliding down the knob
with the other hand.
3) To remove the front grille, pull it toward yourself with both hands.
Mounting plate
1
Wireless remote controller
1
Indoor unit fixing screws (M4 × 12L)
2
Air purifying filter
(FTX25/35, FTK25/35
ATX25/35, ATK25/35)
2
Remote control holder
1
Operation manual
1
Air purifying filter
Photocatalytic deodorizing filter
(FTXS25/35, FTKS25/35
ATXS25/35, ATKS25/35)
2
AAA dry-cell batteries
2
Installation manual
1
Indoor unit
A L
A D H
B
E K
C
G L
01_EN_2P098777-1.fm Page 2 Friday, October 18, 2002 1:26 PM
